GX-HDMI/U2

USB 2.0 to HDMI Display Adapter

GX-HDMI/U2

- Compact and lightweight
- Easy connection between computer and TVs / projectors via USB and HDMI cable
- Support up to 1920×1080 Full HD-TV Resolution
- Multi-display mode available, including "Mirror Mode” and "Expand Mode"
- Powered through the USB port. No additional power supply is needed
- Aero Glass in Windows 7 / Vista supported
- 1 Year warranty

The HDMI display adapter, GX-HDMI/U2, makes it easy to connect your computer to a TV screen. All the photos, videos, on-line shows, which you were used to watch on your laptop, now can be played on your HDTV and be ready to enjoy a bigger and better view. It not only brings you the new experience to enjoy the content with your family or friends easily, but also helps you to work more efficiently. For example, you can show spreadsheets, documents, presentation slides on one screen while reading the e-mail on the other. Also, since it is very compact and lightweight, it will not be an extra luggage on your business trip. You can have a perfect presentation anywhere anytime with this adapter!

Easy connection between your computer and a TV

Adding an extra screen to your computer could be troublesome. However, with this adapter, you can save all the works only by connecting it with a HDMI cable.
Moreover, it provides up to 1080p video resolution (full HD). Now you can play full HD videos on your computer and watch it on your full HDTV.

*Audio output can only be streamed either to the computer or to the TV. Simultaneously audio output from both screens is not available.

Audio-Video synchronization

When streaming from a computer to another screen, the audio and video are sometimes out of sync. This adapter has solved this problem and ensuring synchronized playback even when viewing for long periods.

Multi-display modes

“Mirror Mode" duplicates the main display on a second screen. It makes it easy to watch photos or on-line videos saved in your computer with your family and friends on a TV screen.

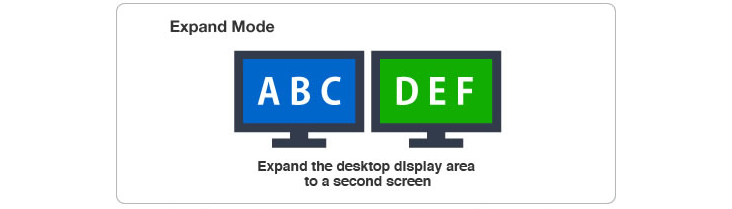

"Expand Mode" expands your desktop to the second screen. For example, you can have a whole picture on a TV screen while you are editing the photos on a computer screen.

Supported by USB bus power

This is a USB bus-powered adapter. We help you to save your time and effort to look for an external power supply. Furthermore, there is no need to look for a missing AC adapter anymore.

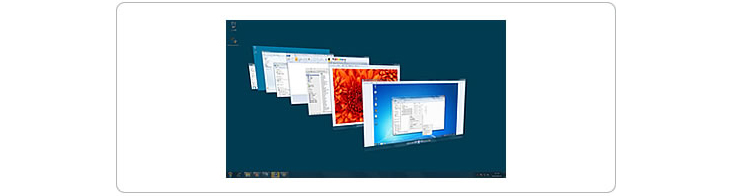

Support Windows 7/ Vista Aero Glass effect

We support 3D effects “AeroGlass" in Windows 7/Vista. With a “glass-like" window borders, windows become easier to see through even when several of them are overlapped. It makes the desktop environment of Windows 7/ Vista handier.

Model

Name GX-HDMI/U2

Interface

USB Standard Compliance USB2.0
Output Terminal HDMI

Resolution,Refresh Rate

Standard Resolution (4:3, 5:4) : (Aspect Ratio,Resolution,Maximum Refresh Rate) 4:03,640X480 (VGA),75
4:03,800X600 (SVGA),75
4:03,1024X768 (XGA),75
4:03,1152X864 (XGA+),75
5:04,1280X1024 (SXGA),75
4:03,1600X1200 (UXGA),60
Wide Resolution (16:10, 16:9) : (Aspect Ratio,Resolution,Maximum Refresh Rate) 16:09,1280X720 (HDTV 720p),60
16:09,1360X768 (Full Wide XGA),60
16:10,1440X900 (WXGA+),60
16:10,1680X1050 (WSXGA+),60
16:09,1920X1080 (Full HD 1080P),60

Other

Supported OS Windows732bit/64bit,Vista32bit/64bit,XPSP2 or later
Operating Environment CPU: Intel Pentium III 1.2GHz or more
Memory: 512MB or more (XP),1GB or more (Vista/7)
Display: HDMI-equipped monitor or TV,One computer can only be connected up to two of these units.
Dimensions (WxDxH) 40 x 13 x 64 mm
Net Weight 24 g
Temperature 5-35°C
Humidity 20-85% (Non-Condensing)
Power Consumption Max. 2.5W
Warranty 1 Year

Software

software Display Link USB Graphics Windows Driver 5.5 M1

Package Contents

contents GX-HDMI/U2
USB Cable (50cm)
Utility CD-ROM
User’s Manual
Warranty Statement
GX-HDMI/U2 / 2012-12-14Product DatasheetDownload
