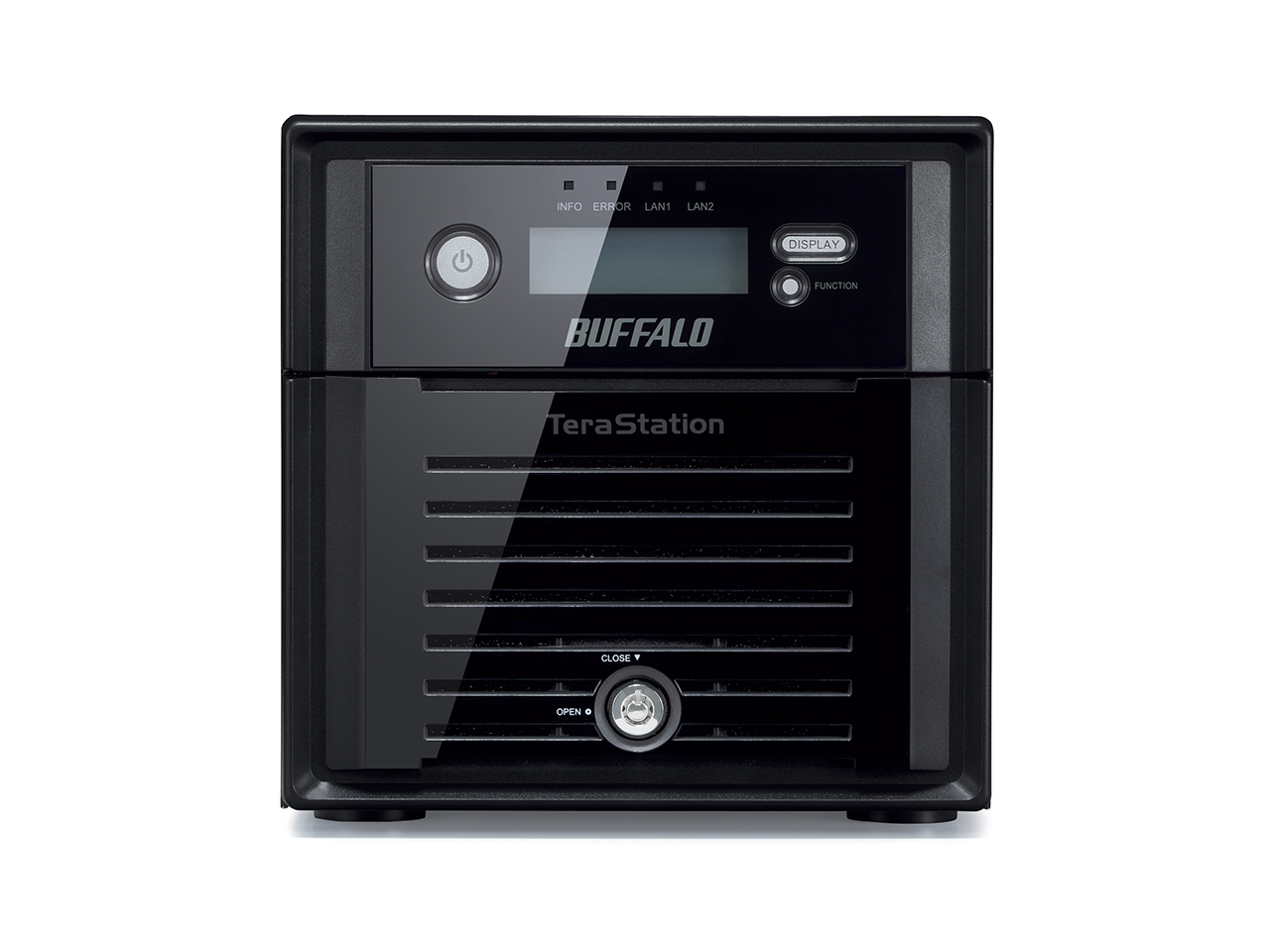

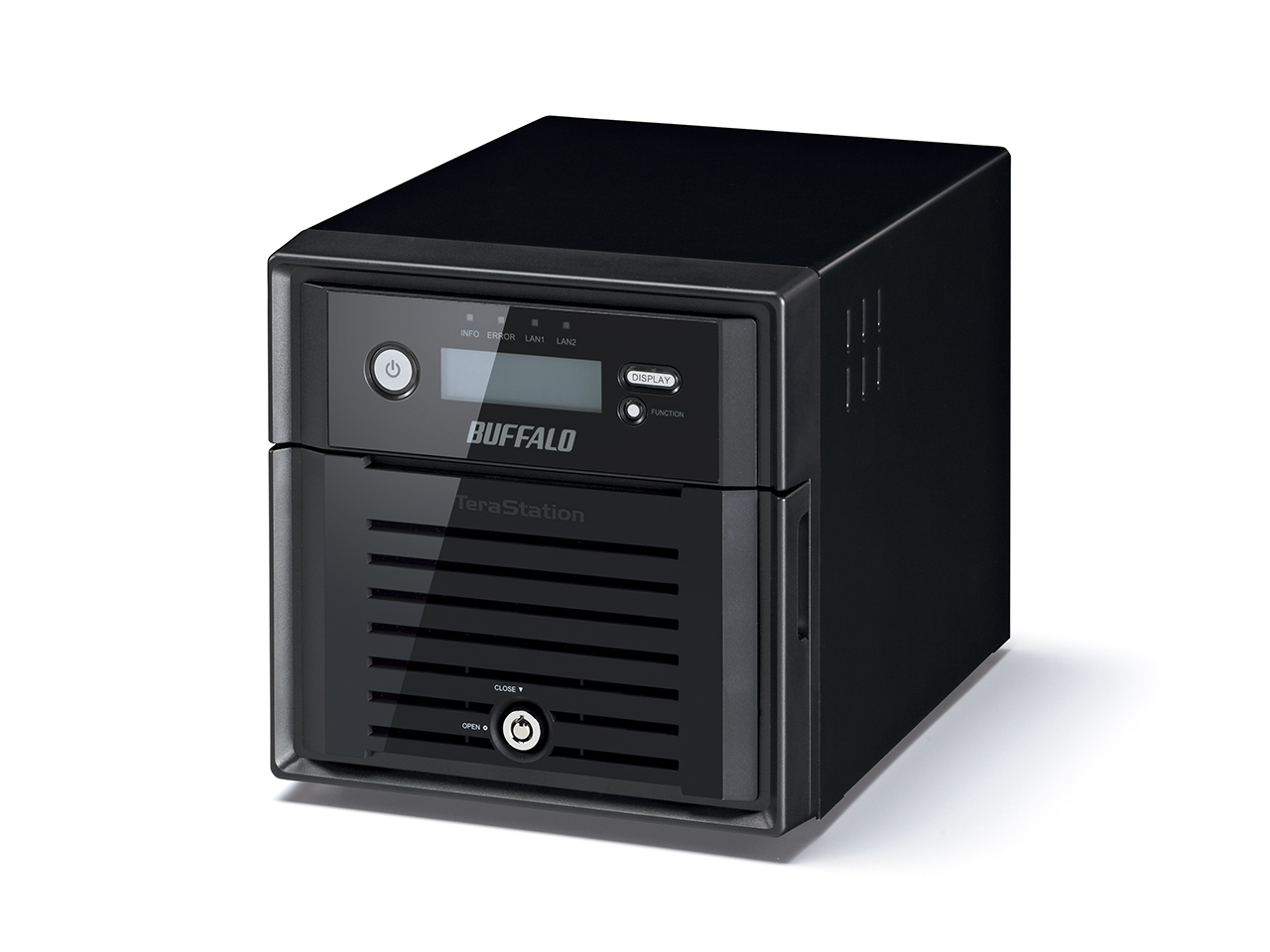

TeraStation 3200


The BUFFALO TeraStation 3200 is a dual bay, RAID-enabled NAS device designed for SOHO users demanding higher performance and data redundancy. Sporting the Marvell ARMADA XP dual-core processor, the TeraStation 3200 provides exceptional performance during data backup, file sharing and other everyday NAS demands. The TeraStation 3200 runs many services simultaneously and the dual-core processor enables the ability to focus on concurrent tasks with minimal performance degradation.

2TB : TS3200D0202
4TB : TS3200D0402

- Dual bay, pedestal form factor
- Superior performance with Marvell ARMADA XP dual-core processor
- Business class NAS features such as file sharing and client/server backup
- IP camera support
- iSCSI target support
- Share level replication feature with device failover
- Cloud storage backup support
- 24/7 reliability with hot swap, hot spare, port trunking, and UPS support
- 10 licenses of NovaBACKUP® Business Essentials v14
- Citrix Ready

Share Office Data Faster

Affordable Entry Model

This TeraStation utilizes the latest Marvell ARMADA XP 1.33 GHz processor, 1 GB DDR3 memory to provide surprisingly fast performance for an entry-level model. This enables offices to share information with greater speed.

* [PC] CPU: Intel(R) Core(TM) i3 2100, M/B: Intel DH77KC, Memory: PC-1600 DDR3 2 GB, NIC: Gigabit CT Desktop, OS HDD:
Seagate ST1000MD003 x 2 RAID 0, OS: Windows7 x86 (32 bit) Professional Edition [NAS] TS-XH8.0TL/R6 (RAID 5 setting), TS3200D0804 (RAID 5 setting)
The TS-XH8.0TL/R6 and TS3200D0804 were connected to the computer via a LAN, with sequential writes and reads measured
using benchmark software (CrystalDiskMark 3.0.2). (Testing conducted by BUFFALO in May 2013)
* Measured values were obtained in a specific test environment; this does not necessarily guarantee similar results can be achieved in all operating environments.skMark 3.0.2). (Testing conducted by BUFFALO in May 2013)
* Measured values were obtained in a specific test environment; this does not necessarily guarantee similar results can be achieved in all operating environments.

Business Class NAS Features

File Sharing

Secure file sharing from a central location with cross-platform support and access restrictions.

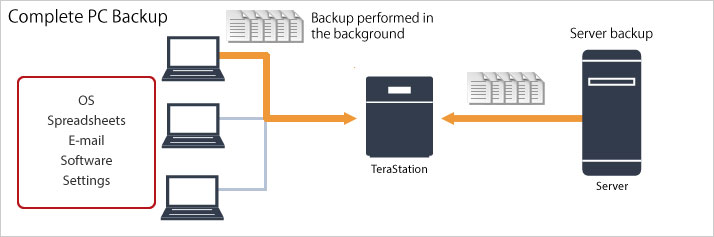

Client/Server Backup

Backup all mission-critical data for peace of mind
-NovaBACKUP®backup software
-Time Machine support
-Supports most major server backup software

Buffalo Surveillance Server

Store video captured with an IP camera directly on a TeraStation via a network.Supports up to five IP cameras per TeraStation. Just select the camera model and enter the IP address on the setup screen, and the TeraStation is set to record video. With the management software, you can centrally control multiple TeraStations from a single point, such as a Windows PC or Mac.
The TeraStation can be configured to automatically switch over to a secondary TeraStation when the primaty TearStation runs out of capacity, to continue recording without interruption.

*Product comes with one free camera license. Additional licenses available for purchase.

iSCSI Target

Create NAS and iSCSI volumes on a single RAID array. Supports simultaneous usage of NAS and iSCSI in one device.



The TeraStation can be backed up to another TeraStation by replicating one to the other. When the primary TeraStation faces hardware failure, the secondary TeraStation will automatically take over NAS operations (Failover), without any noticeable service interruption to users. Failover also keeps trace of various setting changes, minimizing restoration workload.


Replicates data between two TeraStations. In the event of a TeraStation failure, simply unplug the Ethernet cable from the malfunctioning TeraStation and plug into the backup TeraStation for service restoration.

Scheduled backup

Scheduled backup can be set at a specific data and/or time.

Retroactive recovery

Keeps up to 10 backup generations with historical incremental backup.

Many-to-one TeraStation Backup

Backup all shared folders in multiple TeraStations on a single TeraStation.

Cloud Storage Backup

Backup mission-critical data to Amazon S3 (Simple Storage Service) for offsite backup

*Amazon S3 account required.

Supports prompt recovery when NAS is replaced or fails

"Save and restore settings" after a failure and when purchasing multiple TS3200 units

You can connect a thumb drive or other USB memory*1 to the TS3200 and save the settings to the USB memory. Use this feature to restore the settings from USB memory after a failure or more easily program the settings when purchasing multiple TS3200s.

*1: USB sold separately; not included with TeraStation.
*2: Prior matching of disk configurations/formats may be required.

"Initialization" when you forget your password or other settings

You can initialize the TeraStation using USB memory.*3
Use this feature if, for example, you happen to forget your password.
Main initialized settings:
・IP address
・Ethernet frame size settings
・Administrator user name

*3: May require prior setting of USB memory from TeraStation's settings screen.
*4: Initialized settings parameters are the same as those initialized with the Web-based settings screen.

Hardware Features

Extremely reliable hardware

The design of the unit and ventilation fan help ensure air flow,which is critical in holding down temperatures inside the case.The fan used id very quiet.It also monitors temperatures within the case and automatically regulates the fan speed for quiet yet effective cooling.

Utilizes specially designed,highly reliable power supply unit

The components are rigorously designed to handle high-temperature environments and extended operation.The highly reliable power supply withstands even continuous 24-hour-a-day use.BUFFALO recommend confidently to even business users with systems running for long hours.

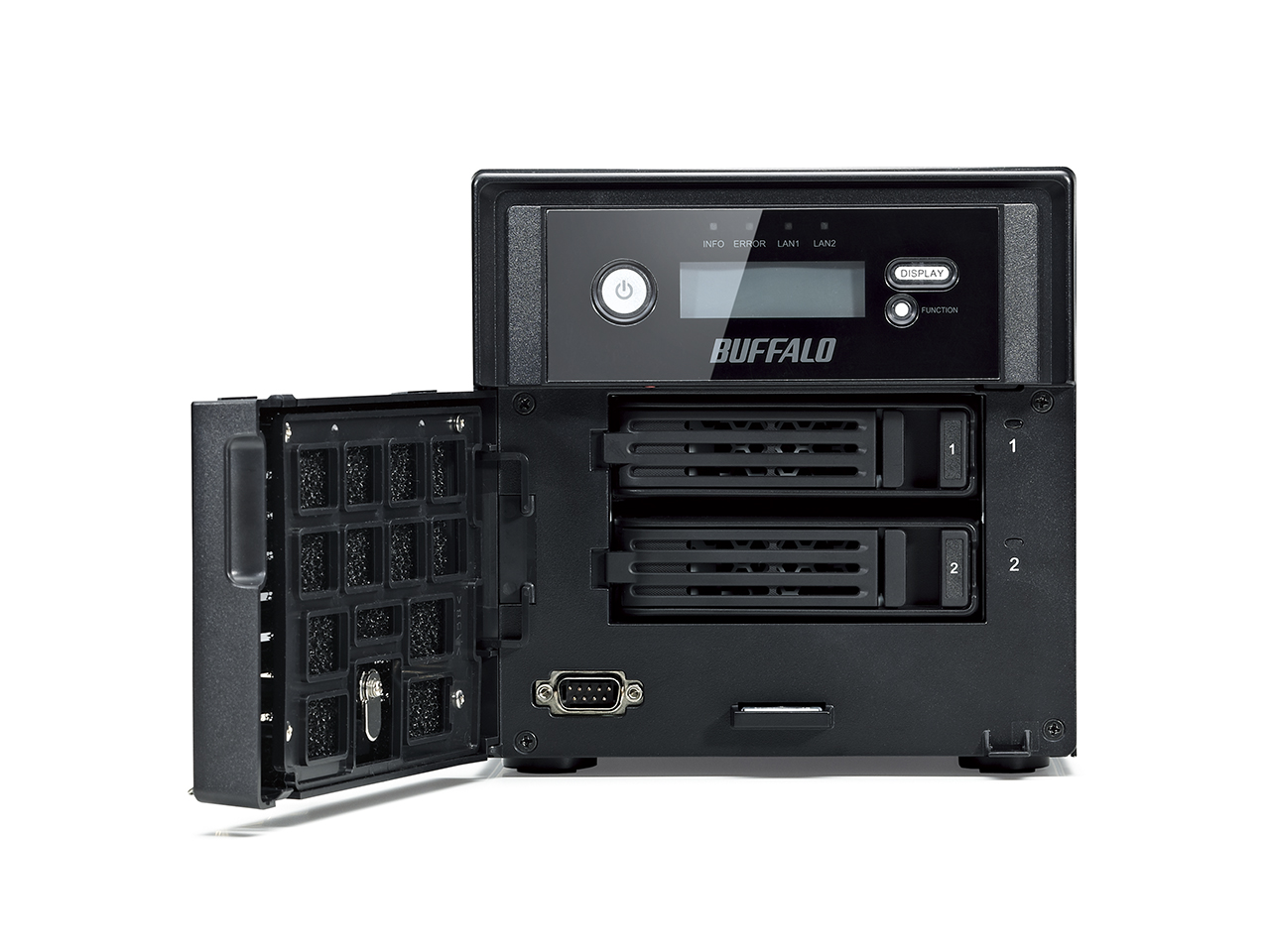

Front panel dust filter

The filter prevents dust from getting inside the unit,which reduces the load on the fan and contributes to more stable operation.

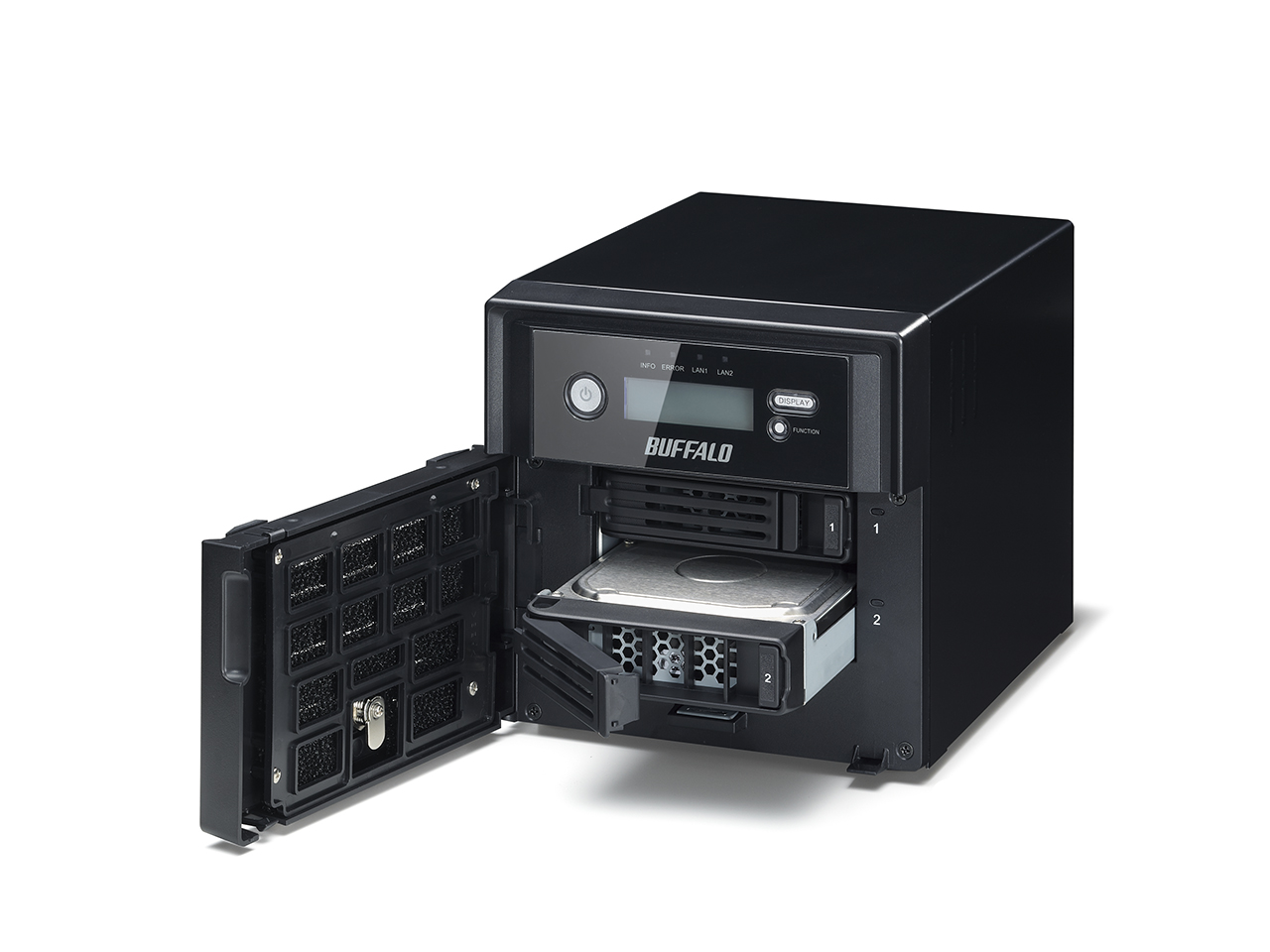

Hot-swappable hard drive

The inernal drives are hot-swappable,so they can be replaced in the event of a hard drive failure, with no need to switch off the power. It is designed to minimize effects on the system when disks are replaced.
The RAID array absent the failed hard drive allows the system to be used as usual, even while the drive is being replace,so there is no extra obstacle to normal business operations.

Port Trunking

UPS Support

Supports devices from Schneider Electric and Omron.

RAID Modes

The TS3200D is equipped with two internal hard disk drives and features RAID technology, which allows storage to be configured in accordance with the user's needs, recognizing and displaying multiple hard drives as a single drive. Using RAID 1 mode, for example, allows you to recover the stored content if one internal drive happens to fail, keeping your data safer as you use the device. If not using RAID, you can then use the Normal mode, in which the two drives are used as independent drives.

Safe and reliable administration, from security to operations

Joining Active Directory makes administration more efficient

The TS3200D features the ability to join Active Directory. In the Active Directory environment, the TS3200D uses the account information registered in the Active Directory server to control access to files and folders stored on the unit, so no separate account administration is required. Active Directory centralizes administration of account information, which vastly reduces the work of setup and administration, even with systems using multiple TS3200D units.

Advanced TeraStation access administration

• Group administration function provides flexibility and rigorous security

You can make other detailed settings to individual folders and files residing on the TS3200D, including specifying Windows, Mac, FTP, and backup public addresses and setting read-only and read-write attributes, backup passwords, and Recycle Bin/Trash settings. Access to shared folders can also be set individually for each group and user for secure, efficient data management.

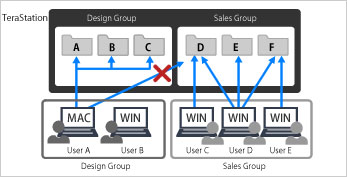

[Example (right figure)]
Consider an example where Mr. A of the Design Group is allowed access to Design Group folders, but not to the Sales Group's folders. Folder B within the Design Group folder is read-only, so Mr. A cannot write to files in that folder.

• "DFS" Distributed File System simplifies access

This system allows users to access shared folders created on the TS3200D through shared folders on multiple TS3200Ds or PC file servers (up to eight DFS links can be set).

• Quota function sets capacity available to users and groups

Setting the appropriate amount of hard disk space available for each user and group prevents any one user or group from making excessive use of the hard drive.

• Hidden Share folder function is perfect for storing administrator files

You can make settings for the "Hidden Share folders," which are not displayed in the list of folders. These folders can be used as destinations for PC server backups and for saving system administrators' management data while the existence of the folders themselves is hidden from general users.

• Offline File function is convenient for mobile computer users

The TS3200D features the "Offline File" function included in Windows 8/7/Vista/XP/2000 and Windows Server 2012/2008/2003. This enables access to. This function enables users to access folders and files even when not connected to the network (offline). (Changes in files are synchronized between the computer and TS3200D the next time the user connects to the network).

Rest assured with disk encryption, even if the TS3200D is stolen

Using the TS3200D encryption settings allows you to encrypt data automatically as it is written to the drive. This means that even if the hard disk is removed and taken away, the data cannot be read with another computer or TeraStation. In addition, you can assign passwords to shared folders residing on the TeraStation so that only users with the password can access the files.

* With the encryption settings are used, files are encrypted and cannot be read on other devices. However, files that are not assigned passwords can be read on the encrypted TeraStation without a password.

Features security slot to guard against theft

A security slot is provided on the TS3200D's rear panel. Used with other security products, this feature is helpful in preventing theft of the unit. This is also recommended for units that are used in stores and offices.

ON/OFF Timer function runs the TS3200D only at selected times

This function allows the power to be switched on only at predetermined times, with up to three separate time settings available. This prevents wasted electricity when a user forgets to turn the power off, achieving both convenience and energy savings. The power switch can be controlled using up to three programmable weekday and weekend timer settings. This cuts energy waste after office hours, on days off, and at other times when the drive is not in use, thus reducing CO2 emissions and helping to protect the global environment.

Greater energy savings than with PC-based

The TS3200D also consumes less electricity than PC-based file servers, thus reducing both operation expenses and CO2 emissions. Running multiple units increases efficiency even more. We suggest the TeraStation as a superb way to reduce costs and help the environment.

Virus Check Expansion Pack Support (Planned)

"Virus Check" function automatically detects and removes infected files

Installing the Virus Check function on the TeraStation prevents the spread of viruses over the network. Even if a computer with insufficient virus protection connects to the network and sends a file infected with a virus to the TeraStation, the TeraStation with Virus Check automatically detects, removes, and quarantines the virus. This prevents other computers from accessing infected files before they are infected.

Expansion Pack Adds Virus Check

The TeraStation allows use of the OP-TSVC Series Expansion Pack.*1
Additionally, the Virus Check function can be used for an extended period with computers with the Virus Check function that are already using this expansion pack.
>> For a more detailed explanation of the Virus Check function, please refer to the OP-TSVC Series product page.

*1: Compatible with TeraStation firmware Ver. 2.10.
* For more information on Virus Check period of validity and purchase examples, please refer to the OP-TSVC Series product page.

WebAccess for Business

WebAccess for Business smartphone app

Free app for Android, iPhone, and iPad, to access and manage the TeraStation over the Internet. Configure your TeraStation from the palm of your hand!

TeraStation Sync

Share files with remote locations by synching folders between two TeraStations over the web.

Citrix Ready Certification

The TS3000 series has been certified as "Citrix® Ready", verified to be compatible with Citrix® product solutions. For more information about the TS3000 compatibility, please visit the Citrix® Ready Xchange Marketplace at http://www.citrix.com/ready/en/buffalo-inc/terastation-3000.

Other features

Easy setup wizard and management through intuitive web interface
USB print server
Hide specific folders for limited access
Antivirus scanning

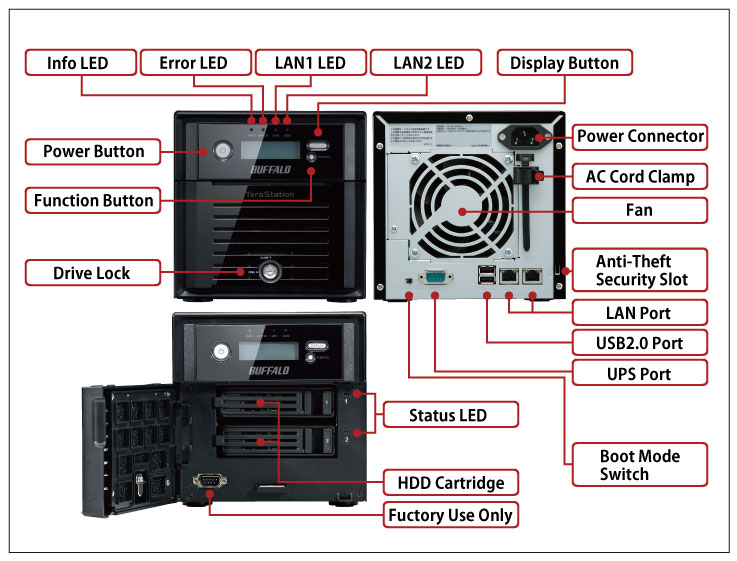

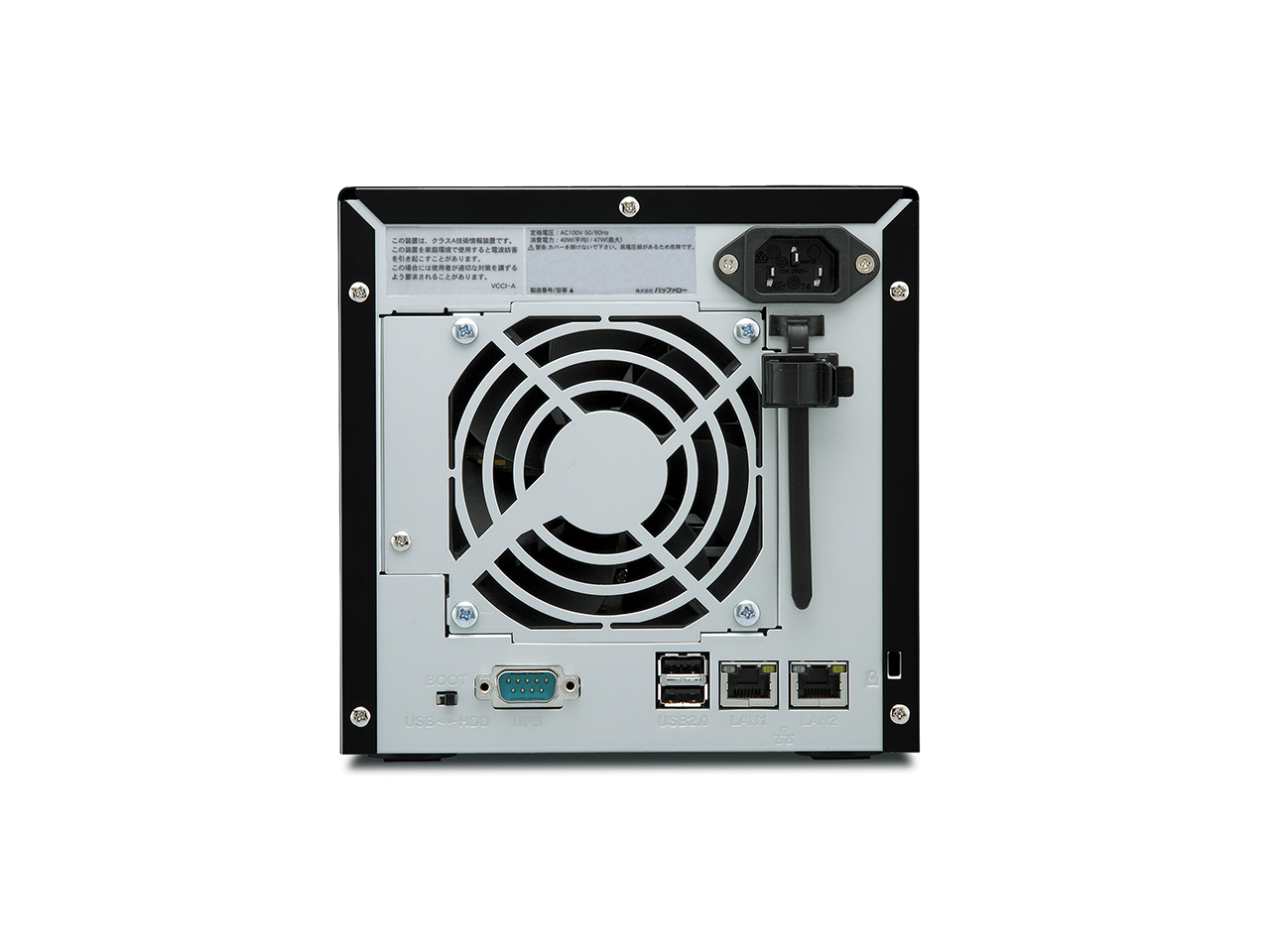

Hardware Overview


Certified Citrix Ready®

Citrix Ready is an end-to-end partner program for introducing and recommending third-party products, solutions, and services. This program allows solutions that Citrix recommends to be found rapidly and easily with the aim of improving the quality of the products Citrix offers.
For more detailed information about the Citrix Ready program, refer to this site: www.citrix.com/ready/en


Name TS3200D


Type Desktop
OS Linux Original
Clock 1.33GHz
Memory DDR3 1GB

Internal Hard Drives

Number of Drives 2
Drive Interface SATA II
Supported RAID Levels 0, 1,Normal (JBOD)
Drive Capacity TS3200D0202(2TB)

LAN Interface

Standard Compliance IEEE802.3/3u/3ab
Speed and Flow Control 10/100/1000 Mbps (Auto Sensing)
Number of Ports 2 x RJ-45 (Auto MDIX)

USB Interface

Standard Compliance USB 2.0
Connector Type A type
Number of Ports 2 x USB2.0

UPS Interface

Standard Compliance D-Sub 9pin
Number of Ports 1

Other Interface

Number of Ports -

Key Feature

IP Camera Y
Redundant Power Surpply -
Hot Spare
Hot Swap Y
Replication Y
Failover Y
Amazon S3 Y
Port Trunking Y
Disk Quota Y
Virus Scan Y (supported from firmware version 1.11 or later)

Protocol Support

Networking TCP/IP
Directory Integration Active Directory
Management HTTP/HTTPS
Time Synchronization NTP


Client OS Support Windows® 8 (32/64-bit)/ 7 (32/64-bit)/ Vista® (32/64-bit)/ Windows® XP
Windows Server® 2012/ 2008 R2/ 2008/ 2003 R2/ 2003/ 2000
Mac OS® X 10.8/ 10.7/ 10.6/ 10.5/ 10.4
Power Consumption 40W (Average), 47W (MAX)
Dimensions (LxWxH, ) 230 x 170 x 170
Weight 4.5 kg
Operating Environment 5-35°C, 20-80% (non-condensing)
Power Supply AC 100-240V, 50/60Hz
Warranty 3-year

Package Contents

Contents TeraStation 3200D (TS3200D)
Setup CD-ROM
LAN cable
AC Cable
Front Panel Key
Quick Setup Guide
Warranty Statement
