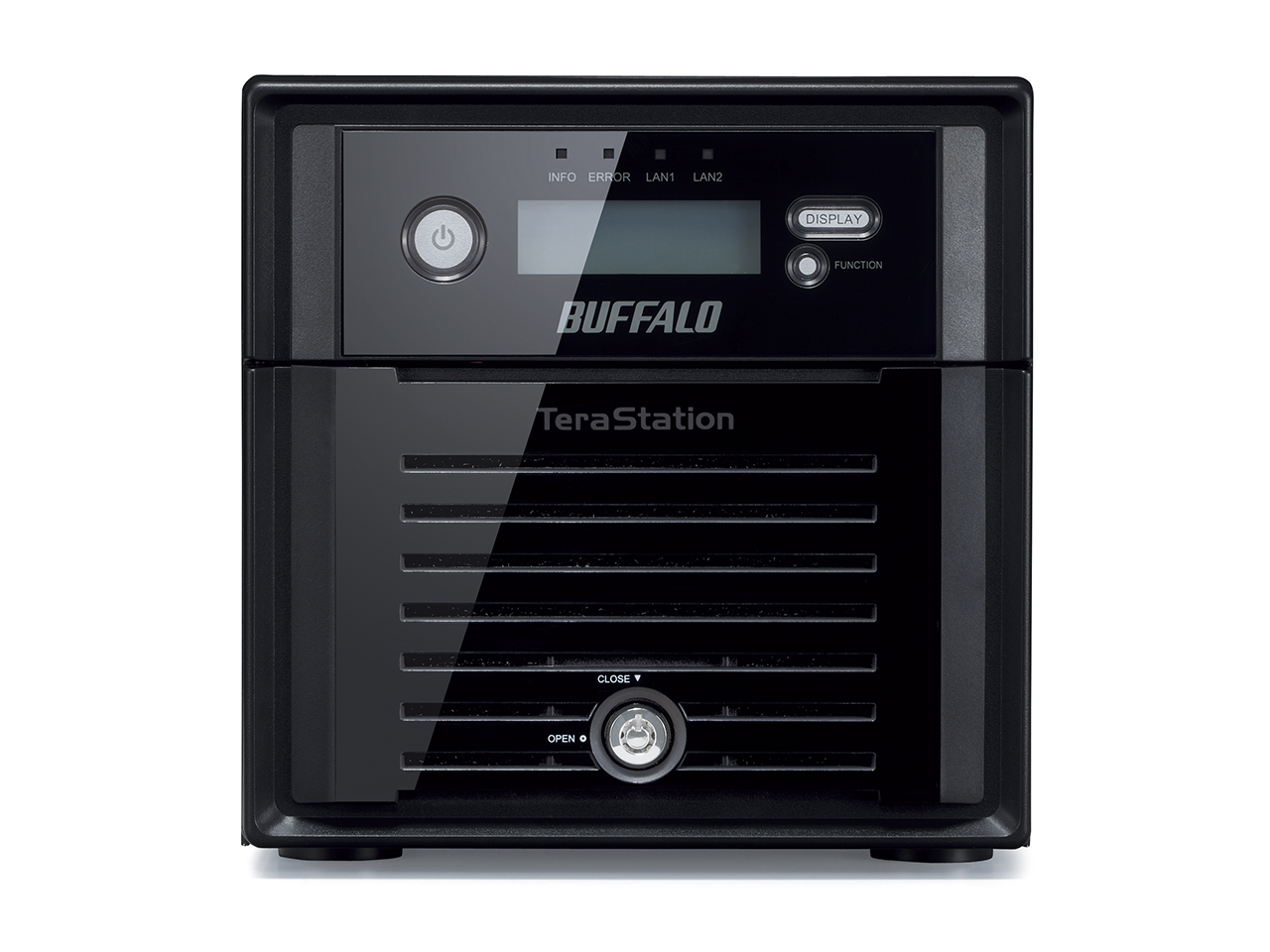

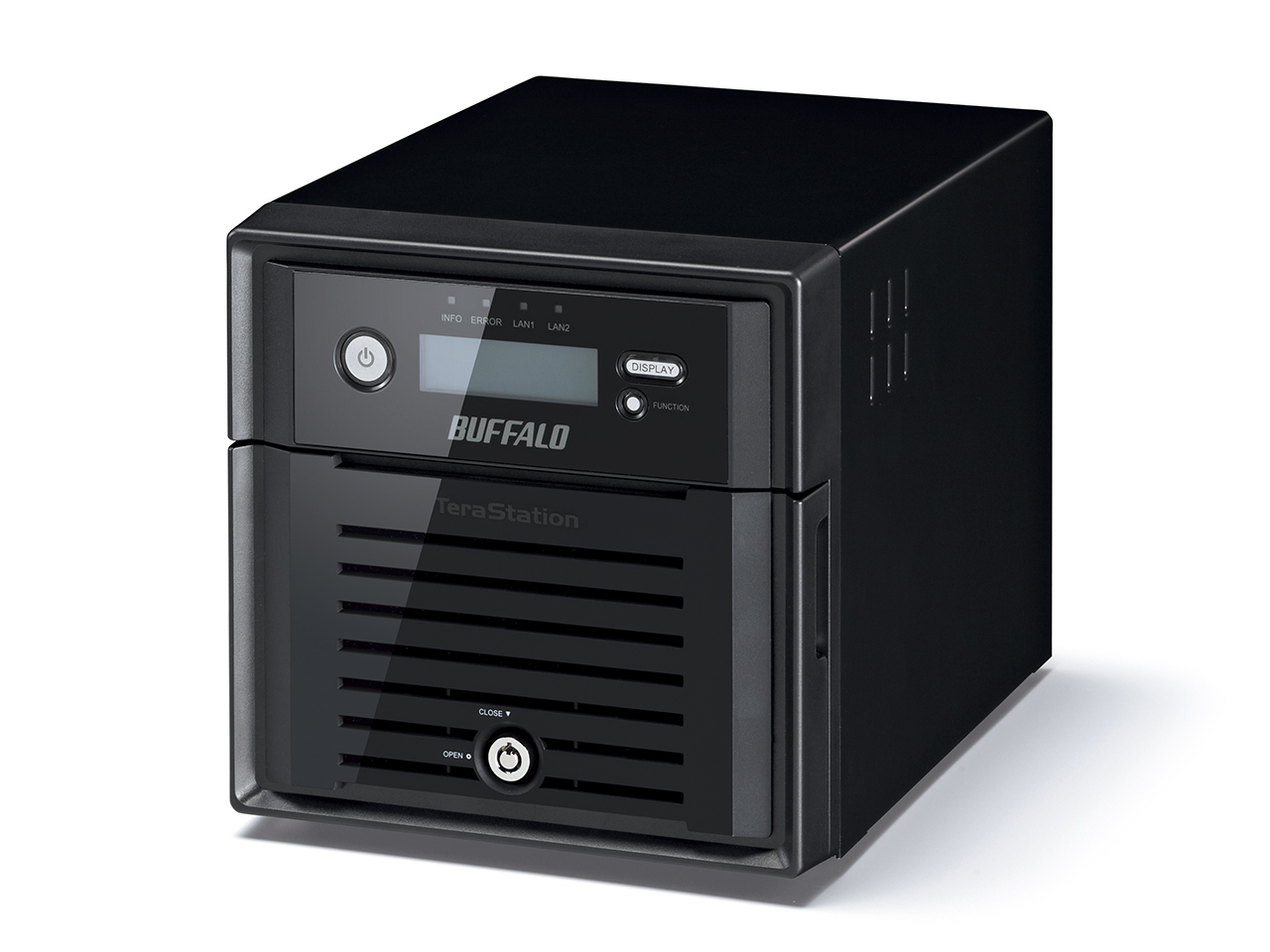

TeraStation NVR TS5000DS Series


AXIS Camera Companion Turnkey 16-Channel Network Video Recorder
TS5200D0202S (2TB)
TS5200D0402S (4TB)
TS5200D0802S (8TB)

Supports Axis Communications's "AXIS Camera Companion One-Click NAS Configuration"

Optimal NAS for recording networked video surveillance solutions

The TeraStation TS5200DS Series supports "AXIS Camera Companion One-Click NAS Configuration" from Axis Communications.
The TeraStation's hard drive is equipped with highly reliable hard disk drives that are perfectly suited for extended periods of operation. This model is the optimal NAS for saving data recorded by surveillance cameras.

What is Axis Companion?

What is AXIS Camera Companion?

AXIS Camera Companion is a networked video surveillance solution that allows you to connect up to a maximum of 16 networked cameras. It also supports High Definition (HD) video, features simple and intuitive operation, with live video monitoring, image search, video and snapshot export and more, while simplifying access to the most frequently used operations.

>> Click here for the list of compatible cameras
>> Click here to go to the AXIS Communications website

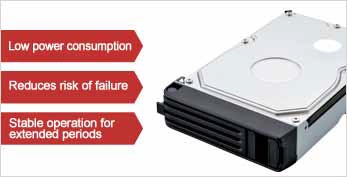

HDD designed for robust reliability

Equipped with reliable hard drive, perfect for extended operation

The TeraStation's HDD utilize new technologies the ensure stable,dependable operation. The hard disks are perfectly suited for the long hours of operation that surveillance camera recording requires. Due to their reduced risk of disk failure and greater service life, these hard disks are guaranteed for a full three years.

- Reduces power consumption, keeps operating temperatures low
- Suppresses vibration and noise
- Provides stable operation, controls operational costs

NAS and HDD provided greater assurance

3-year warranty

The TeraStation TS5200DS is covered by a 3-year warranty. In it happens to break down within three years following the date of purchase*, BUFFALO will repair the unit free of charge. You can be confident in using this NAS to handle your important data with.

* Warranty applies both to the TeraStation as well as the hard disks.
* Warranty does not apply to saved data.

Supports office operations around the clock

Hardware ensures superior dependability

-Air flow chassis suppresses high temperatures

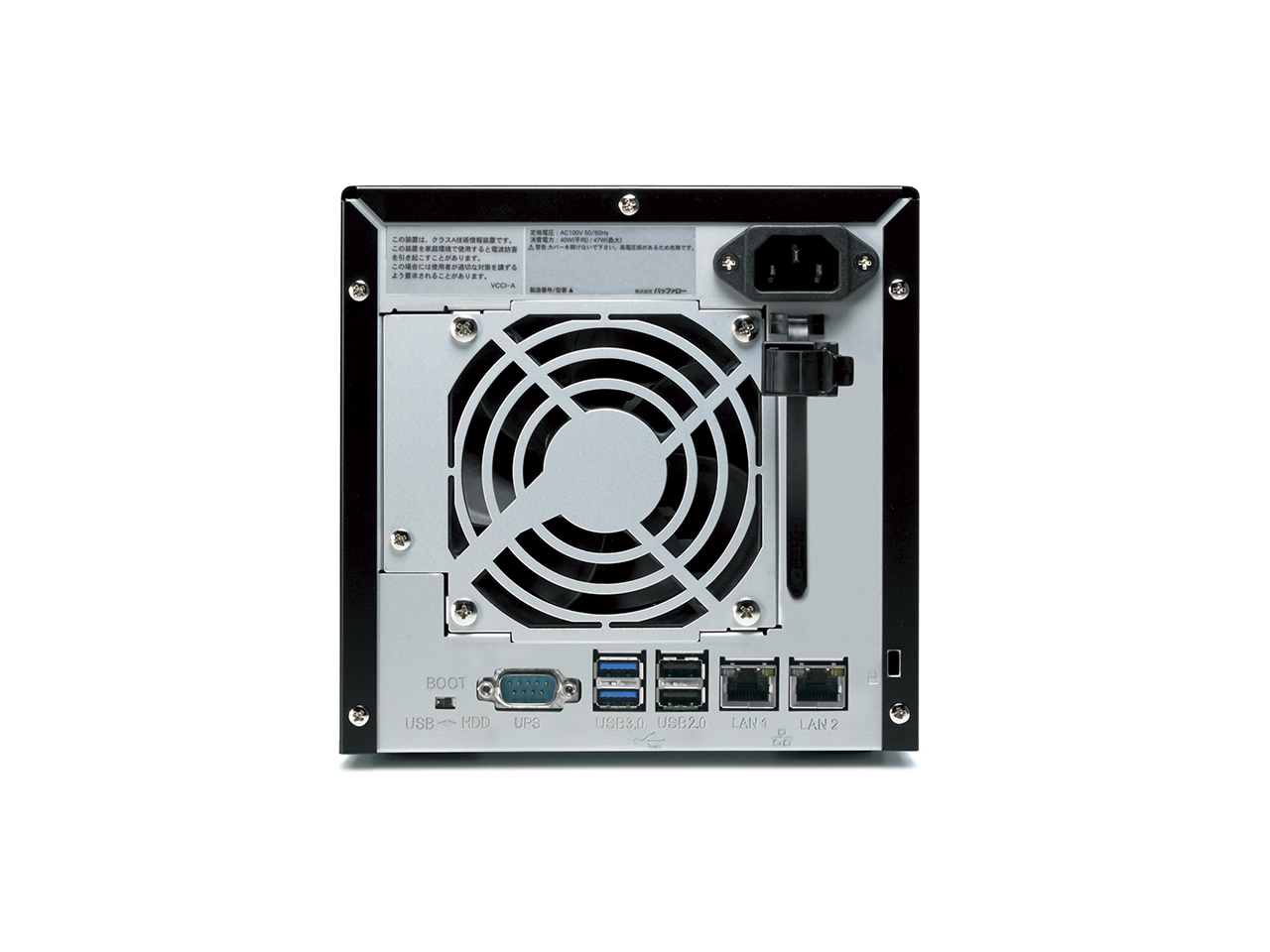

The design of the TS5200DS and ventilation fans help ensure air flow, which is critical in holding down temperatures inside the case. The fans used are extremely quiet. The unit also monitors temperatures within the case and automatically regulates the fan speed for quiet yet effective cooling.

-Utilizes specially designed, highly reliable power supply unit

The components are painstakingly designed to handle high-temperature environments and extended operation. The highly reliable power supply is capable of withstanding continuous operation, 24 hours a day. Business users with systems running continuously for long hours can use the TeraStation with complete peace of mind.

-Highly reliable fans

The fans used in this unit feature highly reliable double ball bearings. Should they ever fail, the fans can be replaced without opening up the TeraStation.

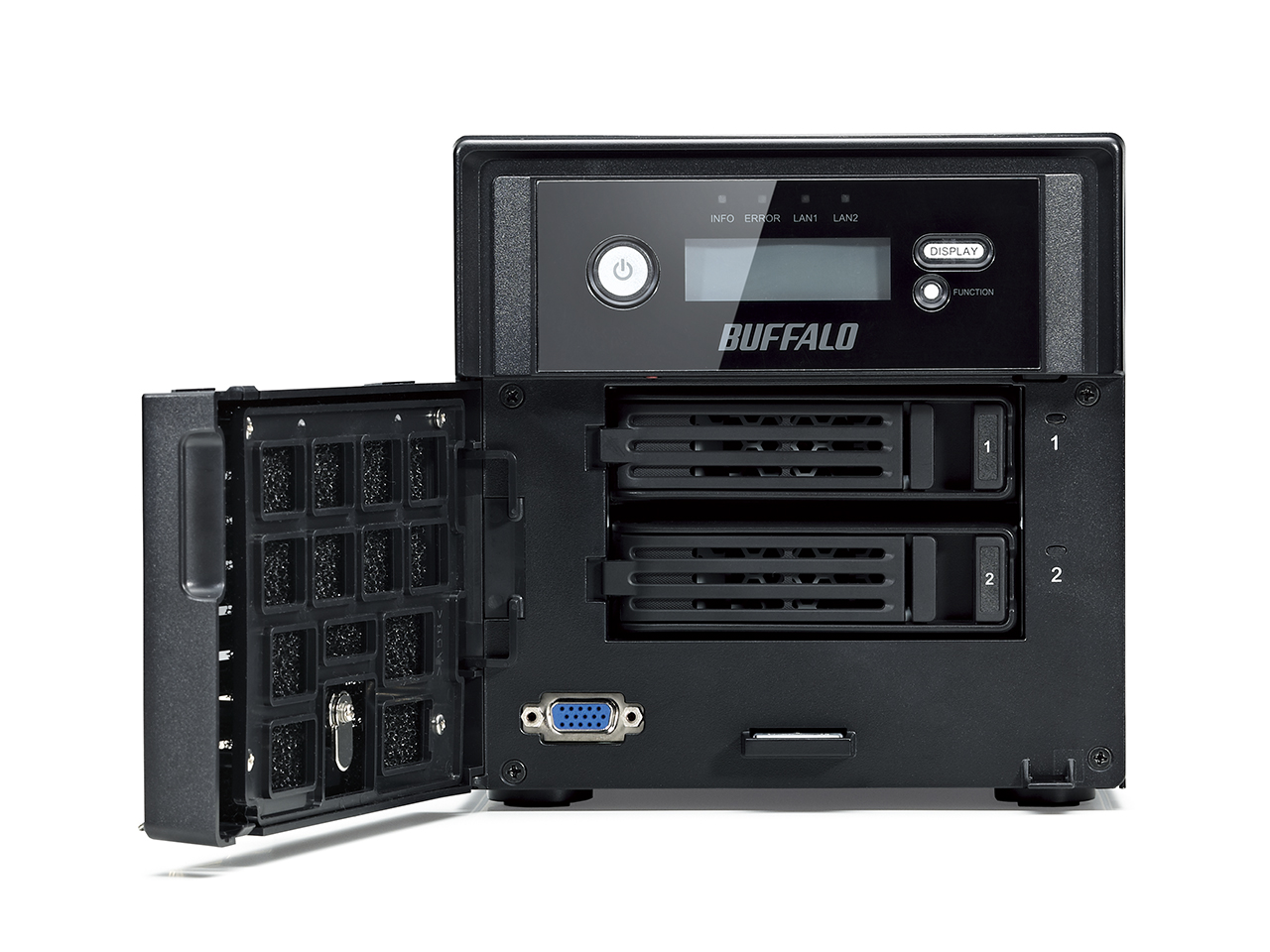

-Front panel dust filter

The filter prevents dust from getting inside the unit, which reduces the load on the fan and contributes to more stable operation.

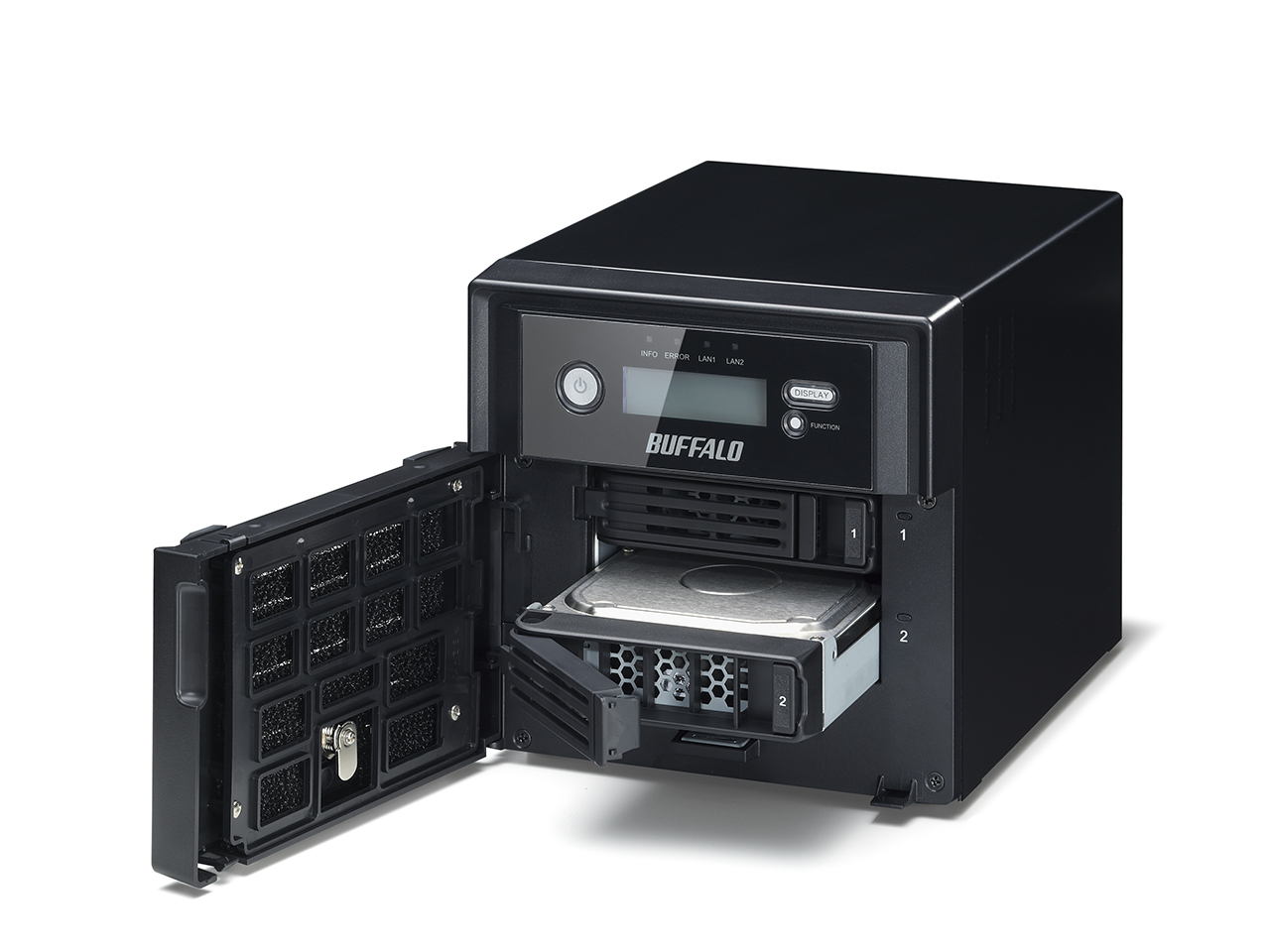

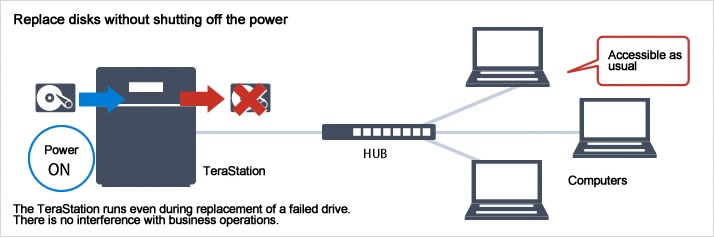

Hot swap support—replace disks without powering down

The TS5200DS drives are hot-swappable, so they can be replaced in the event of a hard drive failure, with no need to switch off the power. The TS5200DS is designed to minimize effects on the system when disks are replaced. Even while the drive is being replaced, the disks other than the failed HDD are configured in a RAID array. This allows the system to be used as usual, so the process creates no additional obstacles to normal business operations.

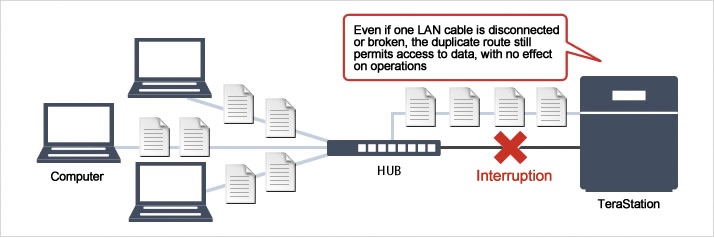

Port trunking improves redundancy through duplication

The TS5200DS is equipped with two LAN ports. Use of two LAN cables ensures an alternative route for transmissions and provides the LAN with redundancy for more reliable communications.
Port trunking also enables link aggregation, with two LAN cables functioning as a single cable. Using the bandwidth of two cables
increases data transfer speeds.

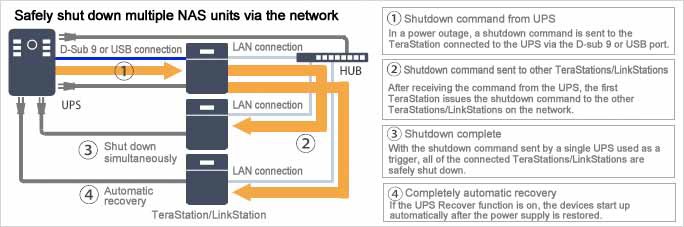

UPS interfacing supported—safely shut down multiple NAS units with on UPS

The TeraStation supports interfacing with UPS (Uninterruptable Power Supply) units manufactured by APC, Omron, and Schneider Electric. This proactive measure helps prevent loss of data and other problems resulting from unexpected power failure due to momentary power outages or tripped circuit breakers. Running off of a UPS also allows the TeraStation to be shut down safely if any interruption in the external power supply occurs.
D-Sub 9 pin or USB ports can be used as communications ports for the UPS.

When multiple TeraStations/LinkStations are connected, the network linking function allows them to be shut down safely from a
single UPS, with no need for power distributors or multiple UPS devices.

Other Features

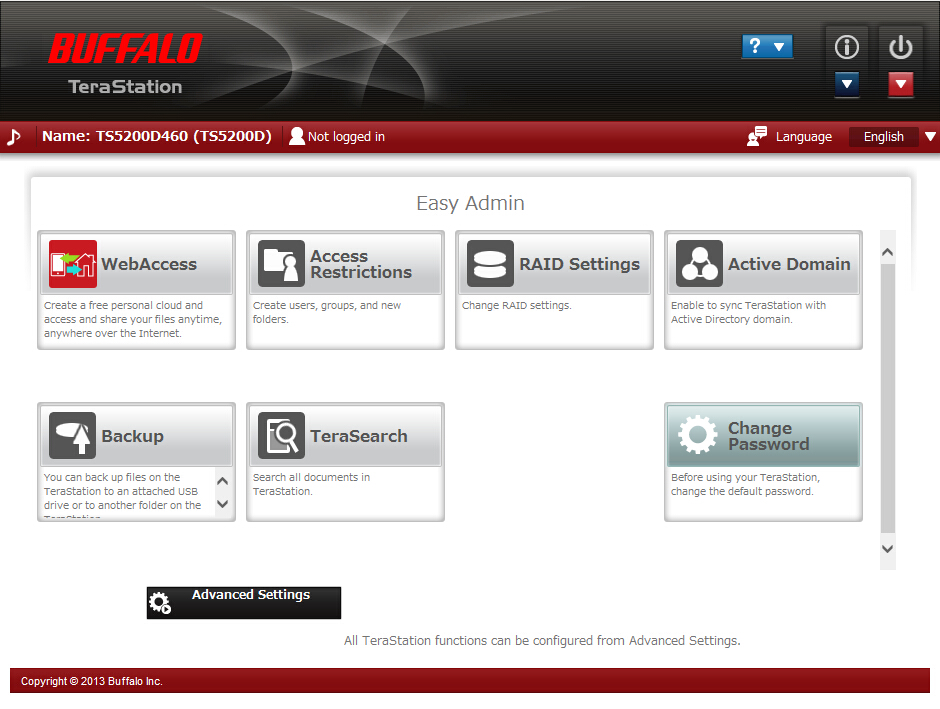

Setup is simple, the settings panel easy to understand

The TeraStation's setup and settings panels feature an intuitive design that makes operation simple. These TeraStations also include a new interface for enhanced usability.

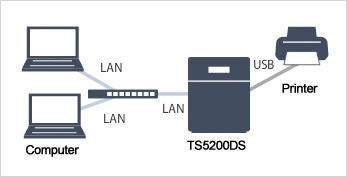

Features USB Print Server function

The TS5200DS includes the "Print Server" function that lets multiple computers share a single printer through the network.
This allows printers, even those without any LAN ports, to be used as networked printers.

Green Purchasing Law Compliant

Enacted in April (and partially January) of 2001, amended in April 2011, this act stipulates the obligation on the part of the national government, Independent Administrative Institutions, and local public organizations to procure environmentally friendly goods. The objective is to have this approach to environmental awareness reach throughout the entire market.
For detailed status of each particular model, please refer to the specifications.

Certified Citrix Ready®

Citrix Ready is an end-to-end partner program for introducing and recommending third-party products, solutions, and services. This program allows solutions that Citrix recommends to be found rapidly and easily with the aim of improving the quality of the products Citrix offers.
For more detailed information about the Citrix Ready program, refer to this site: www.citrix.com/ready/en


Name TS5200DS


Type Desktop
OS Linux Original
CPU Intel Atom D2550
Clock 1.86GHz
Memory DDR3 2GB

Internal Hard Drives

Number of Drives 2
Drive Interface SATA II
Supported RAID Levels 0, 1, JBOD (Normal)
Drive Capacity TS5200D0202S(2TB)

LAN Interface

Standard Compliance IEEE802.3/3u/3ab
Speed and Flow Control 10/100/1000 Mbps (Auto Sensing)
Number of Ports 2 x RJ-45 (Auto MDIX)

USB Interface

Standard Compliance USB 2.0 / USB 3.0
Connector Type A type
Number of Ports 2 x USB2.0 / 2 x USB3.0

UPS Interface

Standard Compliance D-Sub 9pin
Number of Ports 1

Other Interface

Number of Ports -

Key Feature

IP Camera Y
Redundant Power Surpply -
Hot Spare Y
Hot Swap Y
Replication Y
Failover Y
Amazon S3 Y
Port Trunking Y
Disk Quota Y
Virus Scan Option

Protocol Support

Networking TCP/IP
Directory Integration LDAP, Active Directory
Management HTTP/HTTPS
Time Synchronization NTP


Client OS Support Windows® 8 (32/64-bit)/ 7 (32/64-bit)/ Vista® (32/64-bit)/ Windows XP
Windows Server® 2012/ 2008 R2/ 2008/ 2003/ 2000
Mac OS® X 10.8/ 10.7/ 10.6/ 10.5/ 10.4
Power Consumption 26W (Average), 48W (Max), 0.7W (Standby)
Dimensions (LxWxH, ) 165 x 158 x 35
Weight 1.7 kg
Operating Environment 5-35°C, 20-80% (non-condensing)
Power Supply AC 100-240V, 50/60Hz
Warranty 3-year

Package Contents

Contents TeraStation 5200(TS5200D)
Setup CD-ROM
LAN Cable
AC Cable
Front Panel Key
Quick Setup Guide
Warranty Statement
