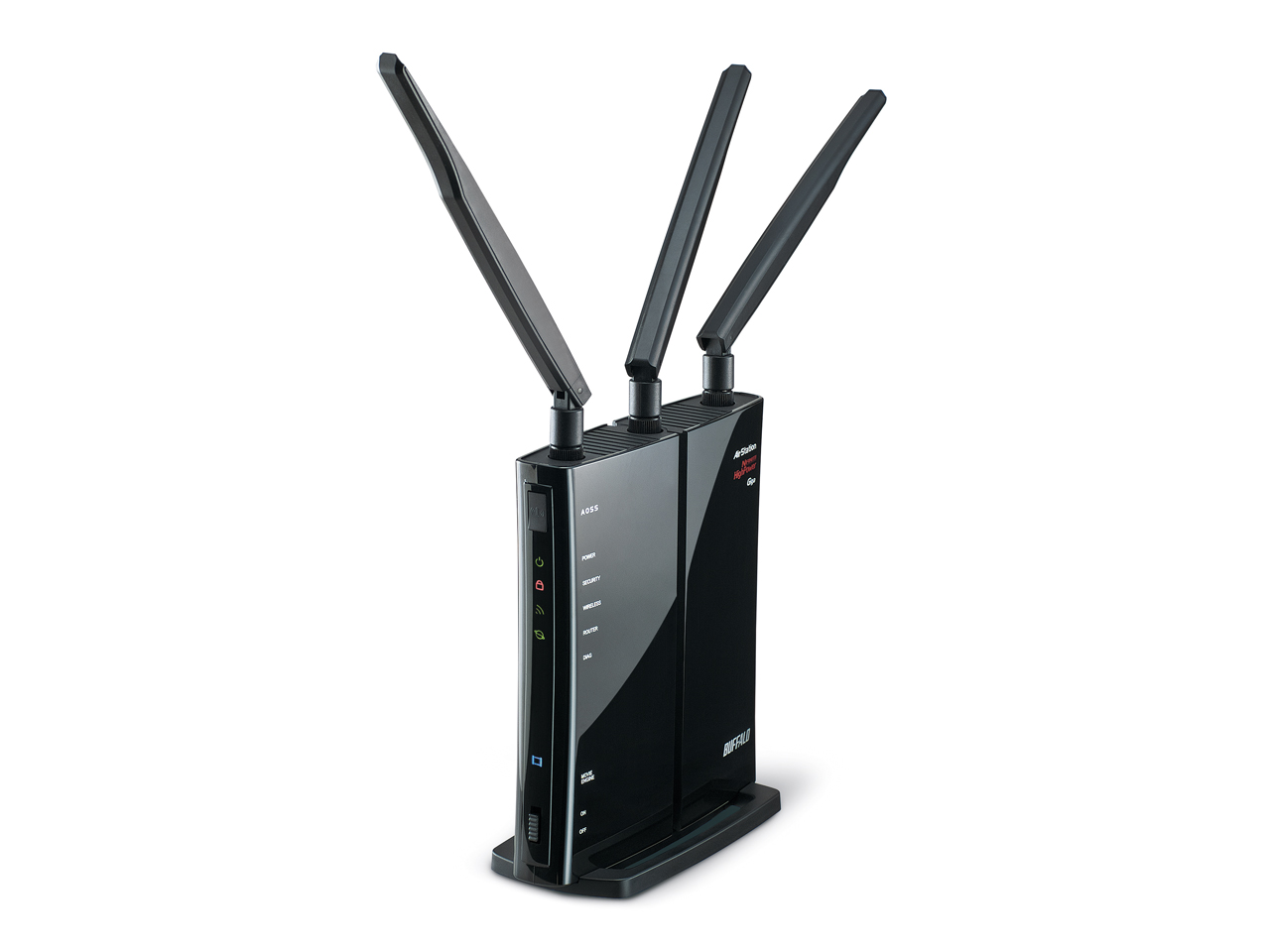

Wireless-N High Power Wireless Broadband Router
WZR-HP-G450H
WZR-HP-G450H is a new product supporting the latest wireless high speed 450 Mbps and High Power Technology. Wired LAN supports Gigabit Ethernet that no matter in the wired or wireless transmission, WZR-HP-G450H brings the high quality video era and creates the comfortable wireless network environment. USB2.0 port may be connected to Buffalo’s USB external hard drive for network storage after simple setting.
Wireless Broadband Distributor Supporting IEEE802.11n/g/b
WZR-HP-G450H supports the latest wireless high speed 450 Mbps and High Power Technology. Wired LAN supports Gigabit Ethernet that no matter in the wired or wireless transmission, WZR-HP-G450H brings the high quality video era and creates the comfortable wireless network environment. Wireless security supports hybrid encryption of WPA2-PSK (AES, TKIP), WPA-PSK (AES, TKIP), 128/64-bit WEP. USB2.0 port may be connected to Buffalo's USB external hard drive for network storage after simple setting.
※"300 Mbps" "54 Mbps" "11 Mbps" are the max. theoretical value of wireless network standard , not the actual data transfer rates.
Adopt the latest transfer technology, increase 1.5 times faster than previous product.
Diversified 11n/g connection
Shared USB hard drive
"Power-saving function" may save the energy
Easy and secure connection
Other features
Adopt the latest transfer technology, increase 1.5 times faster than previous product
This product is the wireless base station supporting 11n 450 Mbps and contain the HighPower transmission function. It supports the optical-fiber wideband line of high-speed transmission that is suitable for the transmission of large-size file transmission and playing of the high-quality animation.
450 Mbps is the theoretical value but not the actual speed of data transmission.
To reach the speed of 450 Mbps, the wireless network card must support the same specification. Please refer to the information in the product specification website for related supporting products.
450 Mbps 11n and HighPower technology strengthen the data transmission and communication strength

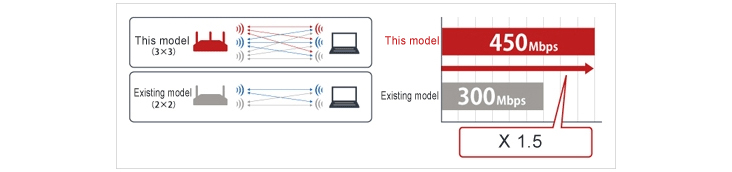

This product supports 11n specification of the wireless network and adopts MIMO (Multiple Input Multiple Output) technology to realize the simultaneous communication by multiple antennas. Therefore, it may use multiple communication paths to accelerate the data transmission.
The earlier product contains 2 antennas to transmit by 2 communication paths at the frequency of 40Mhz (2 channels), and reaches the speed of 300 Mbps, while this product contains 3 antennas to transmit at the frequency of 40Mhz, and reaches the high speed of 450 Mbps (theoretical value).

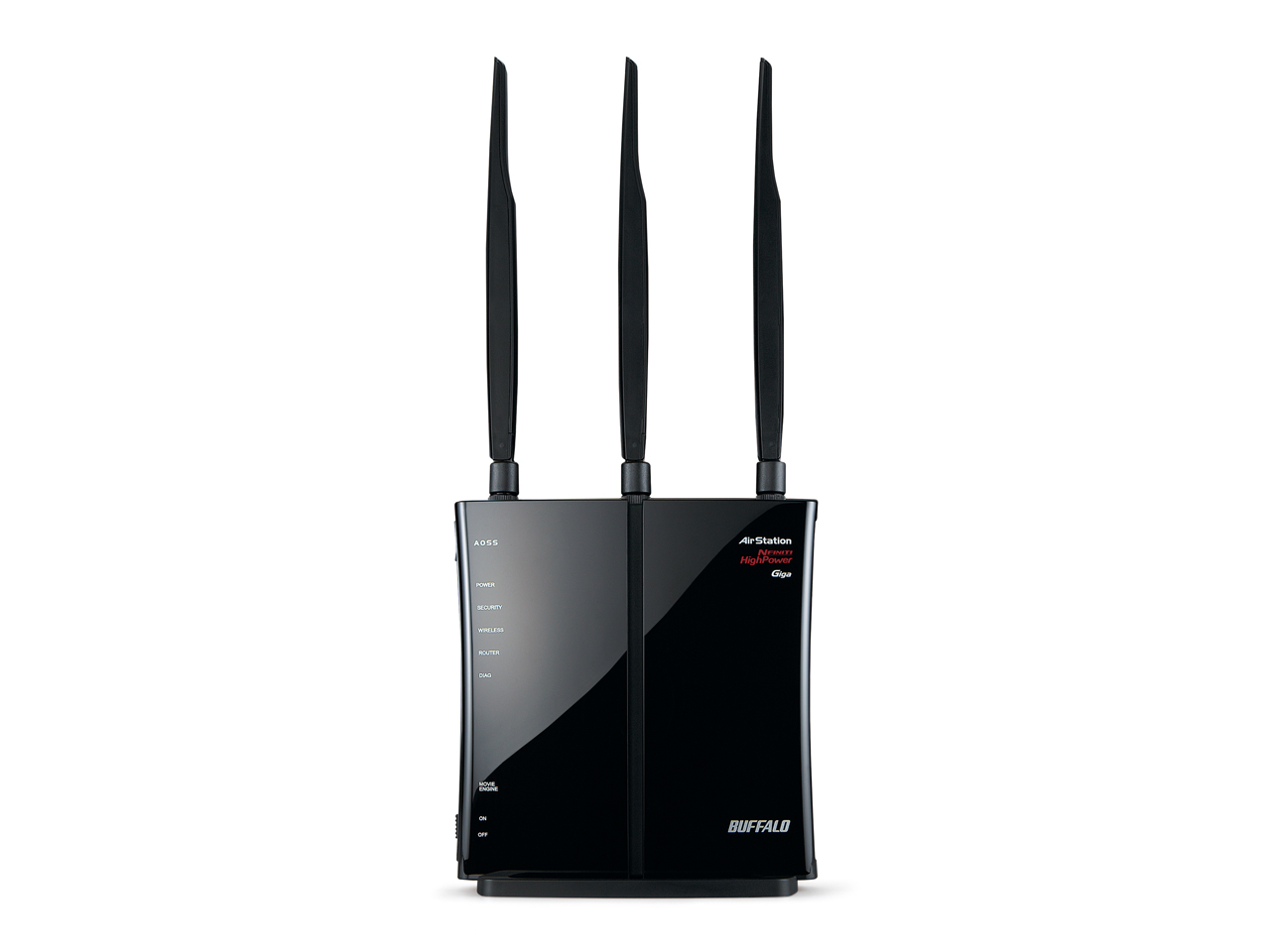

Adjustable Antenna
3 5dBi adjustable antennas that the angle may be adjusted according to the position to reach the best reception effect, and the antenna can be automatically adjusted according to the service environment.
Wired network supports Gigabit
All equipped wired network interfaces (LAN switching hub x 4 ports, INTERNET x 1 port) support gigabit Ethernet (1000BASE-T) . Each port supports and automatically identify Auto-MDIX of cross/straight cable. 1000BASE-T connection with the computer with gigabit interface or NAS (network storage device)
Frame Length: up to 16,000 Bytes, wire rate: 9,216 Bytes (Header + including FCS).
If Jumbo Frame function is to be used, both network card and Hub of the PC shall support the Jumbo Frame function.
Adjustment to make network steaming media video more smooth through switch.
Only by using "Movie Engine•Switch" (ON/OFF) on the front panel of the main unit, the video to be played in the streaming media or network program may be easily set without any complicated operation in the Web management screen.
Program set by "Movie Engine•Switch" ON
Alteration of wireless unicast rate
Enable the automatic acquisition of Ipv6
Enable the alteration of multicast/unicast
Give the communication appointed in the setting interface with priority
Set the lowest limit of communication speed
Diversified 11n/g connection
This product also supports 11n/g/b, other than the previous 11n of 300 Mbps, the product of IEEE802.11g with up to 54 Mbps (theoretical value) and IEEE802.11b up to 11Mbps (theoretical value) may be connected. Any devices using the 2.4GHz such as computer, game machine or smart phone may also be connected.
To connect at the speed of 450 Mbps, the wireless network card shall also support the same specification.

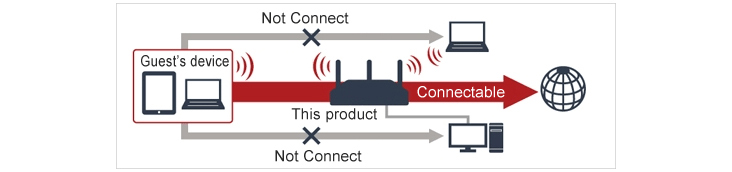

Guest Port function is suitable for wireless devices such computer and Smart Phone of the visitors
It contains the Guest Port function to enable the wireless device such computer and Smart Phone of the visitors to access the Internet by this product but prevented from connecting the exiting internal network.
Shared USB hard drive
Printer and multifunctional device can be used by family simultaneously
Since the USB Port of this product supports USB multifunctional device, multiple PC may share the multifunctional device without moving PC or multifunctional device.
By connecting USB external hard drive or USB flash drive, USB external hard drive or flash drive becomes a simple NAS
The product contains a USB 2.0 port for connection with USB external hard drive or USB flash drive. They become simple NAS devices once connected with this product through the network.
Attached application software support when multiple computers use the multifunctional device simultaneously
Mac system often used by design studio, automatic backup function "Time Machine" is included from Mac OS® X 10.5 Leopard system.

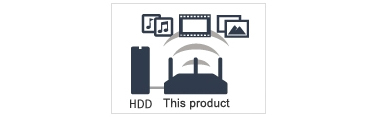

"Media server" function
It stores files like movie, music and photo on the hard disk through the network and uses the built-in “media server” function to play the video file stored on the hard disk on the TV supporting the multimedia server.

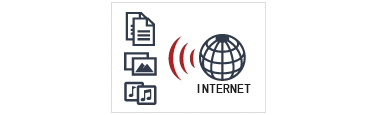

"WebAccess" function
Built-in “WebAccess” function of Buffalo may access the data in the hard disk through the Internet, more convenient information sharing with family and friends.
"BitTorrent"
It contains “BitTorrent”, a downloading software widely used in the world. This product + external USB hard drive may automatically download and store the large file without booting the computer.

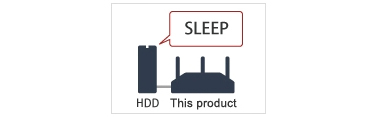

"HDD power-saving" function
With "HDD power-saving function", USB hard disk will stop running if it is not used for a long time, thus reducing unnecessary power consumption and noise, saving energy and ensuring comfortable application of this product.
"Power-saving function" may save the energy
"It contains the "energy savings function"that the router can be switched on/off according to your habit to avoid unnecessary energy consumption. This product will be automatically switched on or off at the set time every day. Once temporary use is necessary, it can be awaken by AOSS™ button. The user-defined mode may also set details of the wireless network function (ON/OFF), wired network function (common (Giga)/ECO (100Mbps)/OFF), and LED light (ON/OFF). It is switched on in the evening and weekend, and only the wireless network for the child to play game is switched on the day.
This function can be also used in the bridging mode.
1
Easy and secure connection
AOSS™ is a quick and simple wireless network connection and encryption setting
"AOSS™" function support can simply set the wireless network. Connection and encryption are automatically complicated by pressing the AOSS™ button on the base station and launching the AOSS™ function of Client Manager, the wireless network connection program, without any complicated setting. Other than game machines like NDS Lite and Wii, other products containing the AOSS function such as printer or other digital household appliances may also simply use it (AOSS™ area).
It also supports WPS (Wi-Fi Protected Setup), wireless network setting function of the industrial standard drafted by Wi-Fi Alliance, and the user may use related products at ease in the future.
Both wireless router and wireless network card must support AOSS™/WPS when setting AOSS™/WPS.
Please check the product instruction for AOSS™ connection.
It is not guaranteed that all laptops with internal wireless network card may achieve the AOSS™ connection by Client Manager.
WPS only supports Windows® 7/Vista™/XP.
NintendoDS and Wii are registered trademarks of Nintendo.
This website is independent that Nintendo does not recognize, support or admit any other affair.
Set the full encryption mode to comfort you in using the Internet
Even if the used device does not support AOSS™ or WPS, the network key with high security may still be automatically set. It supports "AES" , an encryption mode without cracking method right now, so the user may use the wireless network at ease. Besides, since "AES"is stronger than the earlier encryption mode, it is suggested to use"AES"in the wireless network.
What is AES?
It radically improves RC4 encryption, which is regarded as one reason of the fragility of WEP that it is a superior technology.
The most security encryption method used by USA government.
It also supports the earlier encryption mode
It supports earlier encryption modes including"TKIP"or"WEP (64/128bit)" to select the proper encryption mode according to your network device.
App is dedicated for Android Smart Phone, only one touch can connect with Wi-Fi
"AOSS™ for Android"connects Android Smart Phone and the AirStation, wireless base station product of Buffalo by AOSS, exclusive technology of Buffalo. Any Wi-Fi connecting to the high-speed wideband network may smoothly watch the high-quality animation and use the App, as well as upload/download, etc.
It supports the strong encryption mode "WPA2"
WPA2 is a stronger security specification of wireless network drafted by Wi-Fi Alliance in September of 2004. It uses the encryption mode that cannot be cracked currently that the user may use the wireless network at ease.
It contains the "electric wave mixing prevention function" to improve the communication environment interfered by the electric wave
It automatically searches and switches to the channel not in use to prevent the interference of radio wave. When AOSS/WPS is set or the power is on, it automatically scans all channels and switches to the channel not in use without any complicated setting.
It contains the "router/bridge switch"
If the earlier wireless base station is to switch the router or bridge mode, it must alter the setting in the setting screen of the wireless base foundation, which is quite complicated. This product simply and rapidly switches the router or bridge mode by manually operating the switch.
All functions of the router will be suspended once switched to the bridge mode.

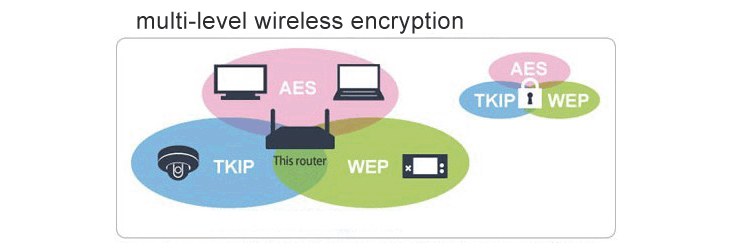

It contains the "Multi Security"function that once AOSS is pressed, it will automatically select the highest level of encryption according to the encryption level supported by the device. It may realize the mixed encryption of AES, TKIP and WEP.
Some devices may have to alter the setting.
Set WEP encryption device which can not connect with AES/TKIP encryption devices
Set on WEB setting screen to make low WEP encryption device which can not connect with AES/TKIP encryption devices. Ensure you to safe usage of internet .
Only support router mode.
Other features
Support connect iPhone/iPad/iPod touch with Wi-Fi
This product supports to connect with iPhone 4, iPhone 3GS, iPhone 3G, iPad and iPod touch, and conveniently browses the Internet through Wi-Fi.
iPhone, iPod, and iTunes are registered trademarks of Apple Inc. in USA and other countries.
Use of the trademark of iPhone has been approved by Aiphone company.
This website is independent that Apple Inc. does not recognize, support or admit any other affairs.
Built-in VPN server
The built-in VPN server function may connect with the LAN at home simply through the VPN (Virtual Private Network) that it is a quite convenient function for both the private and business use.
Built-in DDNS matching function
The built-in dynamic DNS matching function may prevent the problem that the dynamic IP fails to remotely connect with the network, and it becomes more convenient to use in cooperation with other remote connection functions.
Comply with specific hazardous substance restriction directive "RoHS"
The product complies with restriction instruction of the use of specific hazardous substance in electrical and electronic equipment “RoHS” implemented by EU countries from July 2006.
Substances prohibited in “RoHS” directive:
Pb lead, Cd cadmium, Hg mercury, Cr 6 + hexavalent chromium, PBB polybrominated
Part Name
Dimension Drawing
Model
| Name | WZR-HP-G450H |
|---|
Wireless Interface
| Standard Compliance | IEEE802.11n/g/b |
|---|---|
| Security | WPA2-PSK (AES,TKIP), WPA-PSK (AES, TKIP), WEP (128/64bit) |
| Transfer Rates | Max. 450Mbps(IEEE802.11n) Max. 54Mbps(IEEE802.11g) Max. 11Mbps(IEEE802.11b) |
| Antenna | External 5dBi anntena, 3x3 |
| WDS | Y (with DD-WRT for Buffalo firmware) |
Wired Interface
| Standard Compliance | IEEE802.3/3u/3ab |
|---|---|
| Speed and Flow Controll | 10/100/1000 Mbps (Auto Sensing) |
| Number of Ports | Internet : 1 x RJ-45 (Auto MDIX) LAN : 4 x RJ-45 (Auto MDIX) |
USB Interface
| Standard Compliance | USB 2.0 |
|---|---|
| Connector Type | A type |
| Number of Ports | 1 |
Key Feature
| Advanced QoS | - |
|---|---|
| Guest Port | - |
| Beam Forming | - |
| Parental Controls | - |
| Wi-Fi Extender | - |
| PPTP Server | Y |
| BitTorrent | Y |
| Media Server | Y |
| NFINITI HighPower Technology | Y |
| Dynamic DNS | Y |
| Energy Save | Y |
| MAC Address Clone | Y |
Other
| OS Support | Windows® 8 (32/64-bit), Windows® 7 (32/64-bit), Vista® (32/64-bit), XP Mac OS® X 10.8, 10.7, 10.6, 10.5, 10.4 |
|---|---|
| Power Consumption | 16.9W (Max) |
| Dimensions (LxWxH, mm) | 35 x 158 x 165 mm (Exclude antennas and a stand) |
| Weight | 404g (Exclude a stand) |
| Operating Environment | 0-40°C, 20-80% (non-condensing) |
| Power Supply | AC 100-240V, 50/60Hz |
| Warranty | 3-year |
Package Contents
| Contents | AirStation HighPower N450 Giga WZR-HP-G450H 3 Antennas (HighGain 5 dBi Buffalo Custom) LAN cable (Flat 2m Cat5e UTP Straight White) AC power Wall mount Screw (M3*25) Stand (with Rubber Feet) USB Cable CD-ROM Setup Wizard Quick Setup Guide Warranty Statement |
|---|
