AirStation Pro™ Business Class Simultaneous 11 n/a & 11n/g


AirStationPro™ WAPS-APG600H offers high-speed 11n wireless network and such as offices and educational facilities. With features such as 11n/a & 11n/g/b simultaneous wireless connections, 802.3af PoE unit compatibility, energy efficient features, multiple SSID functionality, and various installation options,the WAPS-APG600H support users looking for speed, functionality and efficiency.

802.3af compliant PoE unit compatible

Compliant with IEEE802.3af Power over Ethernet, the WAPS-APG600H can be powered with 802.3af PoE unit.If you have an existing 802.3af PoE unit, it is possible to replace your existing wireless access point with the WAPS-APG600H, reducing both the cost and hassle.

Energy efficient features

Our newly engineered hardware is capable to provide many energy efficient features for eco-minded customers.
Intelligent Power Control
An energy conservation feature that monitors the activity status of each port to greatly reduce the total power consumed. It determines the on/off status of each PCs connected to the LAN port or the length of the LAN cable, and limit the power supply according to the situation.

LED on/off feature
LED can be turned off to reduce power consumption.

Simultaneous 11n/a and 11n/g/b wireless connections

Ideal for offices which requires multiple PC access and large file transfers, the WAPS-APG600H can output both 11n/a and 11n/g/b signal simultaneously with speed up to 300Mbps per wireless standard*.

*Based on 40Mhz channel bandwidth mode. Performance may vary depending on user environment.

1000BASE-T port maximize 11n advantage

The WAPS-APG600H has two 1000BASE-T LAN ports, capable of transferring data through the wired LAN network with speed up to 1Gbps. This allows fast data communication between Gigabit-enabled device throughout your office.

Combine with RADIUS server for stronger security

By combining the WAPS-APG600H and RADIUS (authentication) server, the WAPS- APG600H can function under the IEEE802.1x/EAP authentication protocol network. The RADIUS server manages authorized user information of the network, preventing unauthorized access from joining the network

Multiple SSID

Compatible with multiple SSID, the WAPS-APG600H is capable of setting multiple SSID (wireless VLAN),allowing separate authentication and encryption protocol to be set to each individual SSIDs.The WAPS-APG600H is also compatible with 802.1Q tagged VLAN. With the combination of 802.1Q compatible ethernet switch, building seamless wired and wireless VLAN environment is possible.Both 2.4GHz and 5GHz bandwith can have up to 5 SSIDs per bandwidth.

Various installation options available

The WAPS-APG600H comes with a ceiling-mounting screws and wall-mounting screws.There are other installation options available, such as the BS-MGK-A Magnet Kit (sold separately) for installation onto a steel wall, or the WLE-OP-SC Security Case (sold separately) for added protection from unexpected tampering or theft. The WLE-OP-SC is also compatible with the Kensington lock system.

Backup and restore settings

Backing up and restoring settings of WAPS-APG600H can be done through the web administrative interface or a USB device connected on the WAPS-APG600H. This allows quick replace and restore of the access point if there are any issues with it that needs immediate replacement.

Compatible with basic wireless LAN functions

- WEP(64/128bit), IEEE802.1x/EAP, WPA/WPA2-PSK and WPA/WPA2-EAP compatible
- STA separator and SSID separator compatible
- SNMP compatible
- QoS/WMM support

Provides 3 years warranty

In order to provide stable network environment, reliability of network device is a key factor.Buffalo's original corporate model quality standard requires selection of highly reliable parts and strict product development, pursuing for product's durability and longevity.As a result, Buffalo is able to provide 3 years warranty on this WAPS-APG600H.

RoHS compliant

The WAPS-APG600H is a RoHS compliant product.

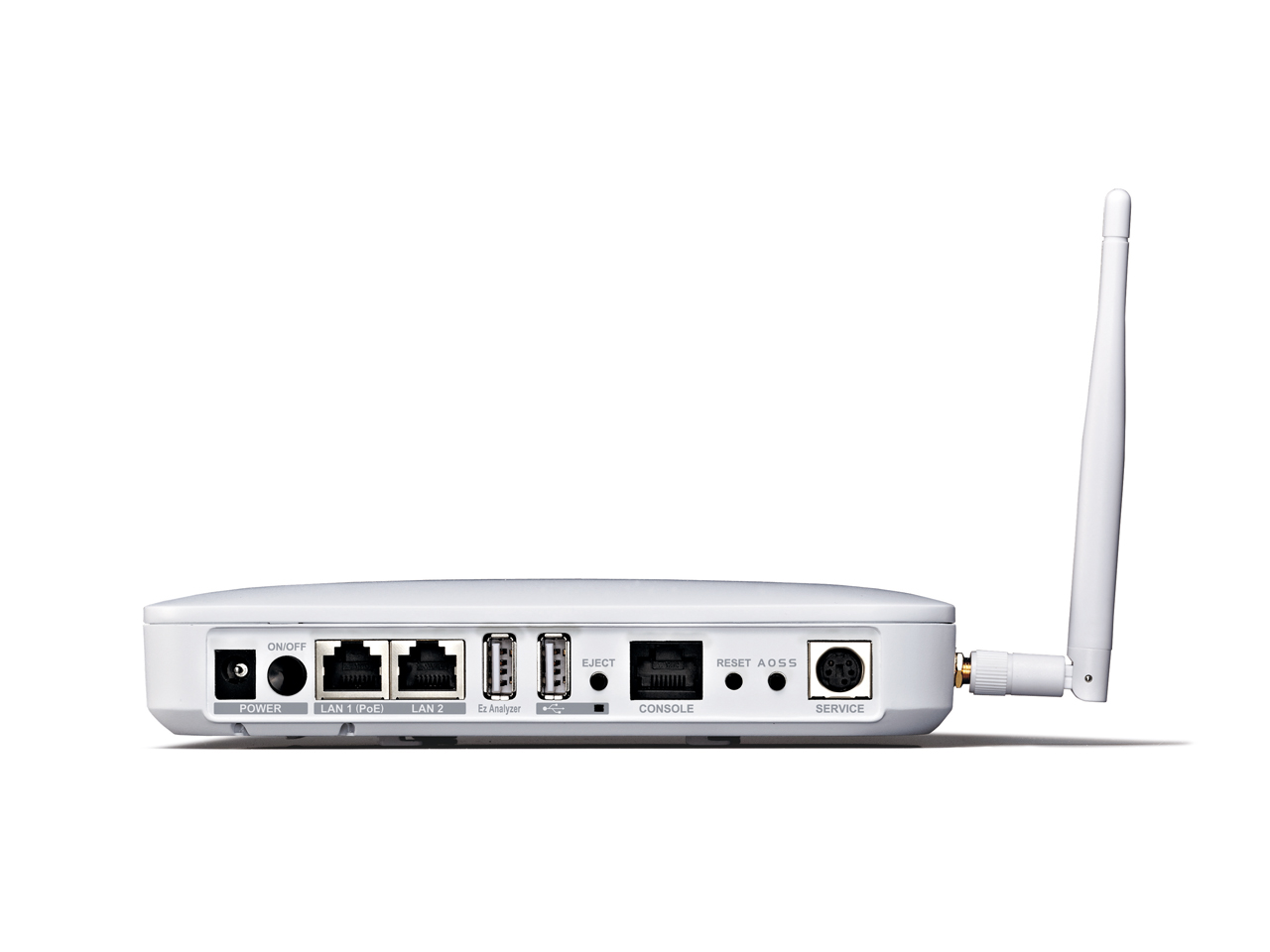

Hardware Overview


*Values are in milimeters.



Wirelss LAN Interface

Standard Compliance IEEE802.11a/IEEE802.11b/IEEE802.11g/IEEE802.11n
Transmission Method Direct Sequence Spread Spectrum(DSSS),OFDM,MIMO
Transmission Rate 802.11b: 11,5.5,2,1Mbps
802.11a/g: 54,48,36,24,18,12,9,6Mbps
 20MHz BW (Long GI)
    130,117,104,78,52,39,26,13Mbps(2 stream)
    65,58.5,52,39,26,19.5,13,6.5Mbps(1 stream)
  20MHz BW(Short GI)
    144.4,130,115.6,86.7,57.8,43.3,28.9,14.4Mbps(2 stream)
    72.2,65,57.8,43.3,28.9,21.7,14.4,7.2Mbps(1 stream)
 40MHz BW(Long GI)
    270,243,216,162,108,81,54,27Mbps(2 stream)
    72.2,65,57.8,43.3,28.9,21.7,14.4,7.2Mbps(1 stream)
 40MHz BW(Short GI)
    300,270,240,180,120,90,60,30Mbps(2 stream)
    ;150,135,120,90,60,45,30,15Mbps(1 stream)
Access Mode Infrastructure Mode,WDS Mode
Security AOSS,WPA2(TKIP/AES),WPA(TKIP/AES),WPA/WPA2 mixed PSK,IEEE 802.1X/EAP,64-bit and 128-bit WEP,MAC ADDRESS Filter

Wired LAN Interface

Standard Compliance IEEE802.3ab(1000BASE-T),IEEE802.3u(100BASE-TX),IEEE802.3(10BASE-T)
Transmission Rate 10/100/1000Mbps
Transmission Encoding 1000BASE-T 4DPAM5,100BASE-TX 485B/MLT-3,10BASE-T Manchester Coding
Access Method CSMA/CD
Speed and Flow Control 10/100/1000Mbps,Auto Sensing,Auto MDIX
Number of LAN Ports 2
LAN Port Connector RJ45

USB Interface

Interface USB2.0
Connector Type Type A(plug)
Compliance 5.0V 500mA(max 1000mA)


Power Supply External AC 100-240V Universal,50/60 Hz Power over Ethernet
Power Consumption About 12W(Max)
Dimensions 152mm x 182mm x 35mm (5.98 x 7.17 x 1.38 in.)
Weight 440g (15.52 oz.) (not including antennas)
Operating Environment 0-45° C (32-104° F), 10-90% (non-condensing)

Frequency Range

USA, Canada, Brazil 2,412 - 2,462 MHz(Channels 1-11)
5,180 - 5,240MHz (Channels 36,40,44,48)
5,745 - 5,825MHz (Channels 149,153,157,161,165)
Mexico 2,412 - 2,472MHz (Channels 1-13)
5,180 - 5,240MHz (Channels 36,40,44,48)
5,745 - 5,825MHz (Channels 149,153,157,161,165)
EU ,Russia ,Kuwait ,Saudi Arabia ,UAE ,Australia ,Hong Kong ,The Philippines ,India ,Thailand ,Malaysia ,Singapore ,Vietnam 2,412-2,472MHz(Channels 1-13)
5,180-5,240MHz (Channels 36,40,44,48)
South Korea 2,412-2,472MHz (Channels 1-13)
5,745-5,825MHz (Channels 149,153,157,161,165)
China ,Taiwan 2,412-2,462MHz (Channels1-11)
5,745-5,825MHz (Channels 149,153,157,161,165)
WAPS-APG600H / 2013-02-17Product DatasheetDownload
WAPS-APG600H / 2014-01-30数据表(中文)Download
