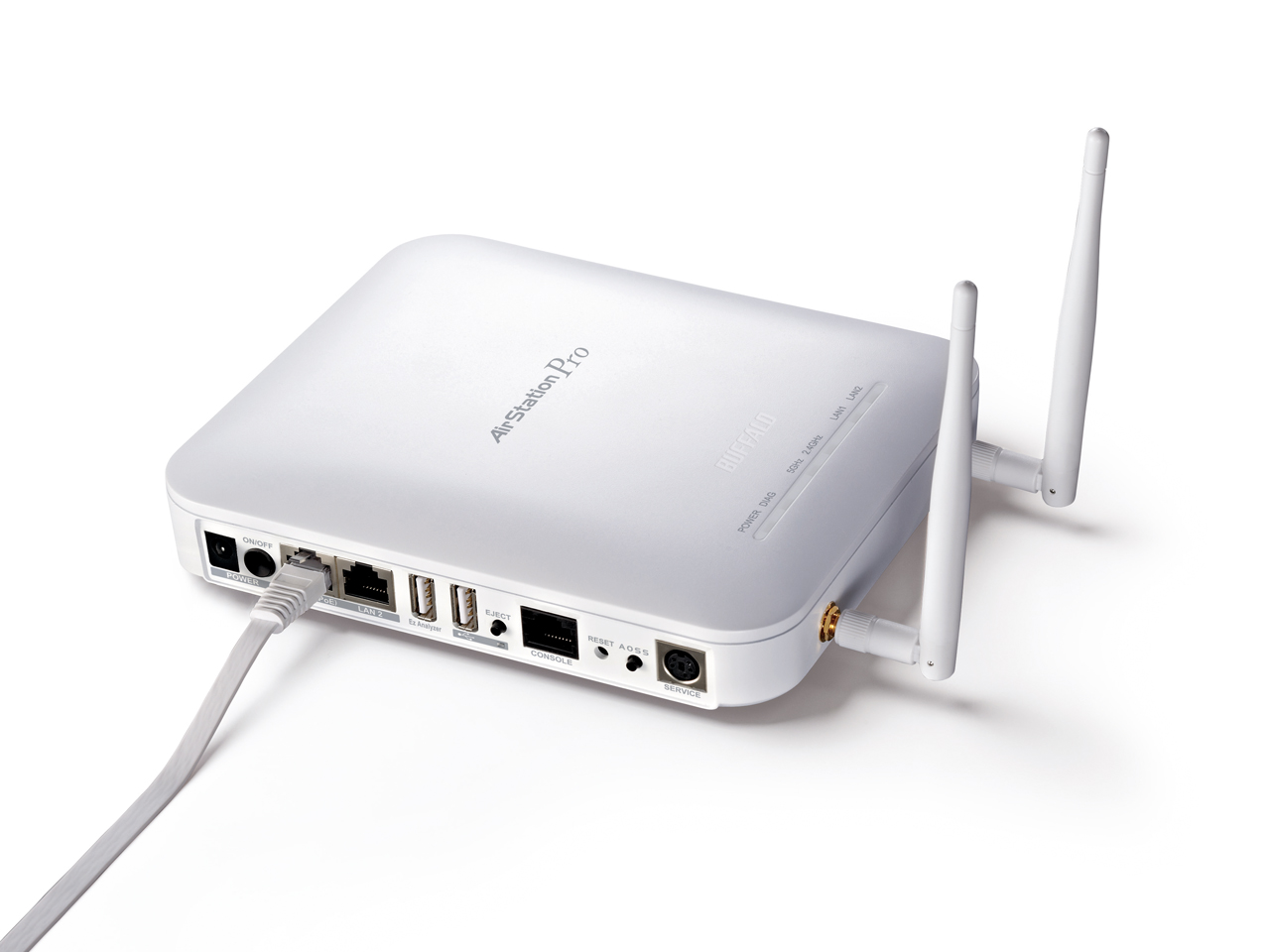

AirStation Pro™ Business Class Wireless LAN Access Point
WAPS-AG300H
AirStation Pro™ WAPS-AG300H offers high-speed 11n wireless network and Gigabit wired network experience that is ideal for large network traffic environment such as offices and educational facilities. With features such as 802.3af PoE unit compatibility, energy efficient features, multiple SSID functionality,and various installation options, the WAPS-AG300H support users looking for speed, functionality and efficiency.
802.3af compliant PoE unit compatible
Compliant with IEEE802.3af Power over Ethernet, the WAPS-AG300H can be powered with 802.3af PoE unit.If you have an existing 802.3af PoE unit, it is possible to replace your existing wireless access point with the WAPS-AG300H, reducing both the cost and hassle.
Energy efficient features
Our newly engineered hardware is capable to provide many energy efficient features for eco-minded customers.

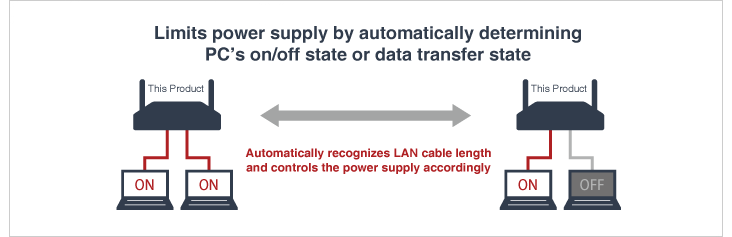

Intelligent Power Control
An energy conservation feature that monitors the activity status of each port to greatly reduce the total power consumed. It determines the on/off status of each PCs connected to the LAN port or the length of the LAN cable, and limit the power supply according to the situation.

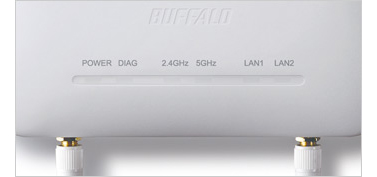

LED on/off feature
LED can be turned off to reduce power consumption.

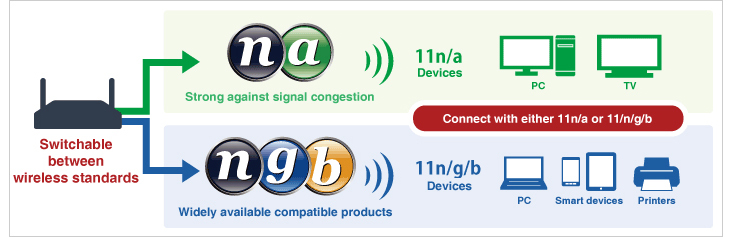

Switchable 11n/a and 11n/g/b wireless connections
Ideal for offices which requires multiple PC access and large file transfers, the WAPS-AG300H can switch between 11n/a and 11n/g/b. This allows user to choose the best wireless standard depending on the wireless device or user environment.
1000BASE-T port maximize 11n advantage

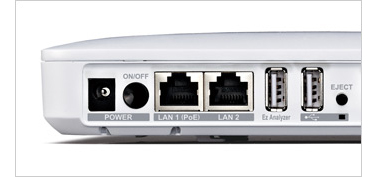

The WAPS-AG300H has two 1000BASE-T LAN ports, capable of transferring data through the wired LAN network with speed up to 1Gbps. This allows fast data communication between Gigabit-enabled device throughout your office.
Combine with RADIUS server for stronger security
By combining the WAPS-AG300H and RADIUS (authentication) server, the WAPS-AG300H can function under the IEEE802.1x/EAP authentication protocol network. The RADIUS server manages authorized user information of the network, preventing unauthorized access from joining the network

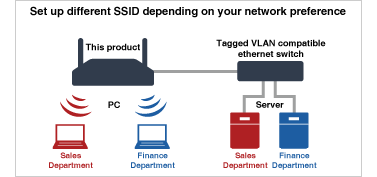

Multiple SSID
Compatible with multiple SSID, the WAPS-AG300H is capable of setting multiple SSID (wireless VLAN),allowing separate authentication and encryption protocol to be set to each individual SSIDs.The WAPS-AG300H is also compatible with 802.1Q tagged VLAN. With the combination of 802.1Q compatible ethernet switch, building seamless wired and wireless VLAN environment is possible.Both 2.4GHz and 5GHz bandwith can have up to 5 SSIDs per bandwidth.

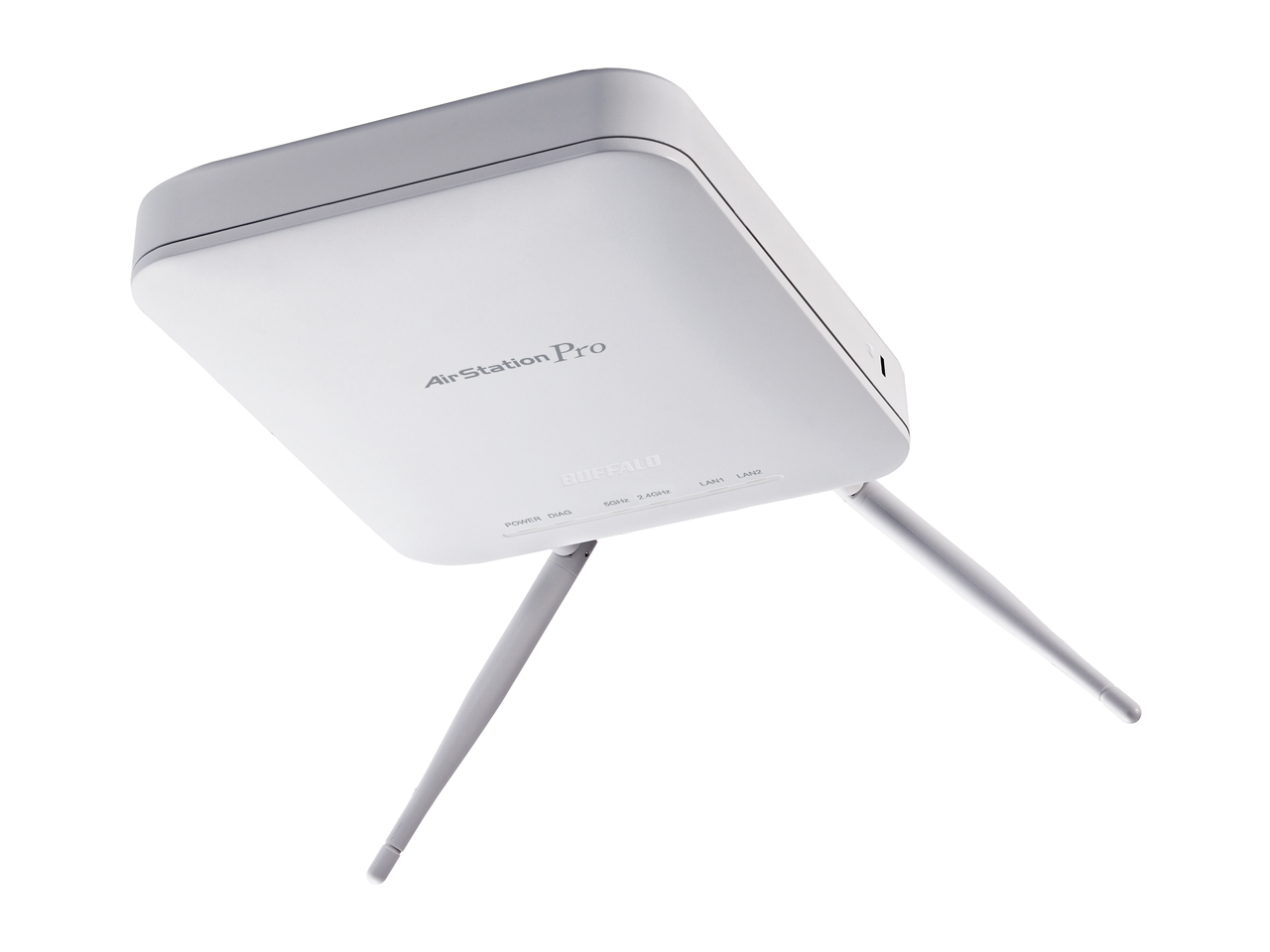

Various installation options available

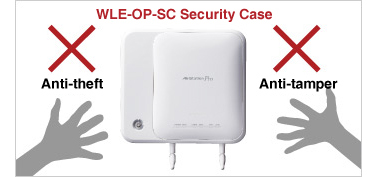

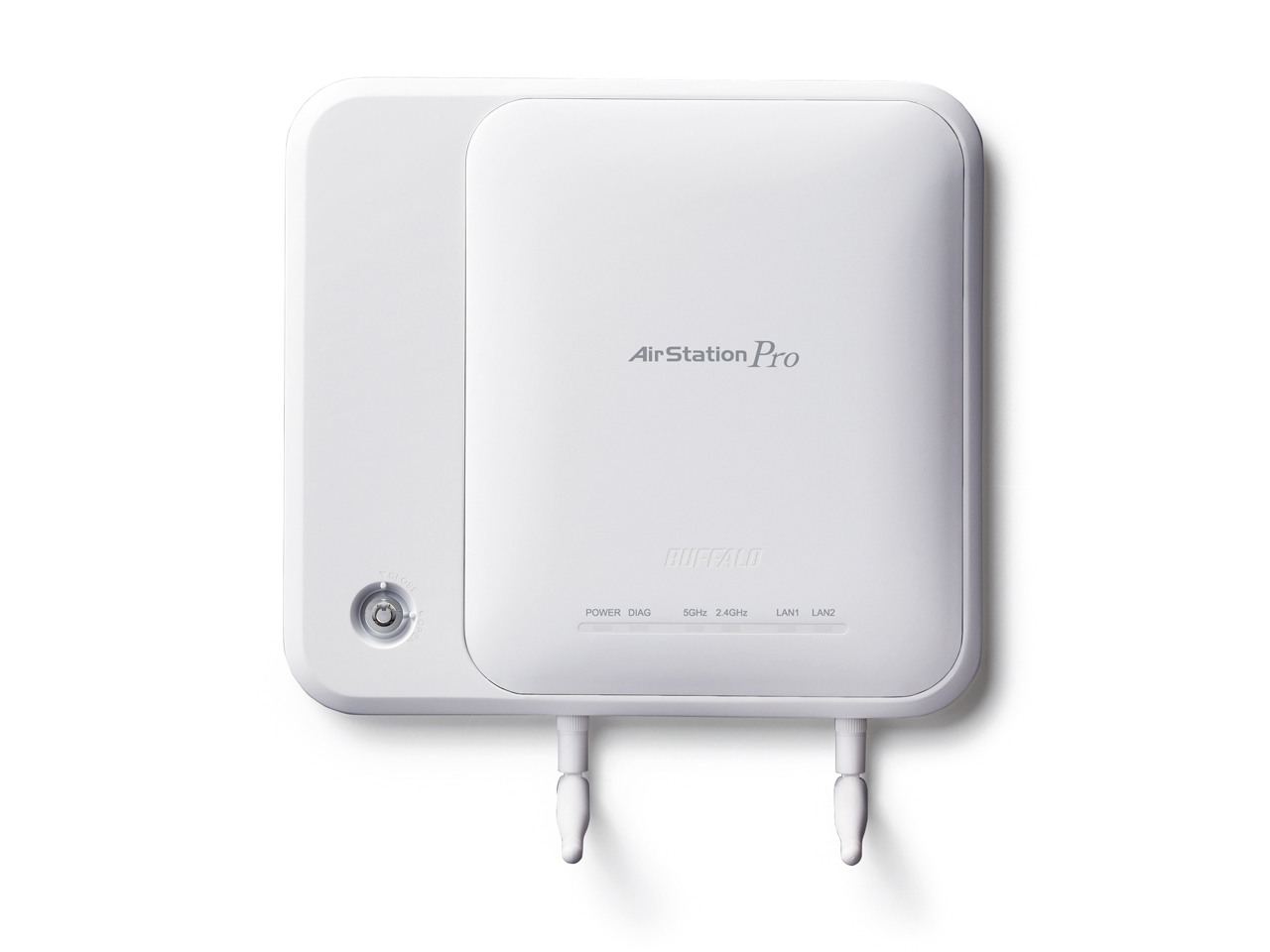

The WAPS-AG300H comes with a ceiling-mounting screws and wall-mounting screws.There are other installation options available, such as the BS-MGK-A Magnet Kit (sold separately) for installation onto a steel wall, or the WLE-OP-SC Security Case (sold separately) for added protection from unexpected tampering or theft. The WLE-OP-SC is also compatible with the Kensington lock system.
Backup and restore settings
Backing up and restoring settings of WAPS-AG300H can be done through the web administrative interface or a USB device connected on the WAPS-AG300H. This allows quick replace and restore of the access point if there are any issues with it that needs immediate replacement.
Compatible with basic wireless LAN functions
- WEP(64/128bit), IEEE802.1x/EAP, WPA/WPA2-PSK and WPA/WPA2-EAP compatible
- STA separator and SSID separator compatible
- SNMP compatible
- QoS/WMM support
Provides 3 years warranty
In order to provide stable network environment, reliability of network device is a key factor.Buffalo's original corporate model quality standard requires selection of highly reliable parts and strict product development, pursuing for product's durability and longevity.As a result, Buffalo is able to provide 3 years warranty on this WAPS-AG300H.
RoHS compliant
The WAPS-AG300H is a RoHS compliant product.

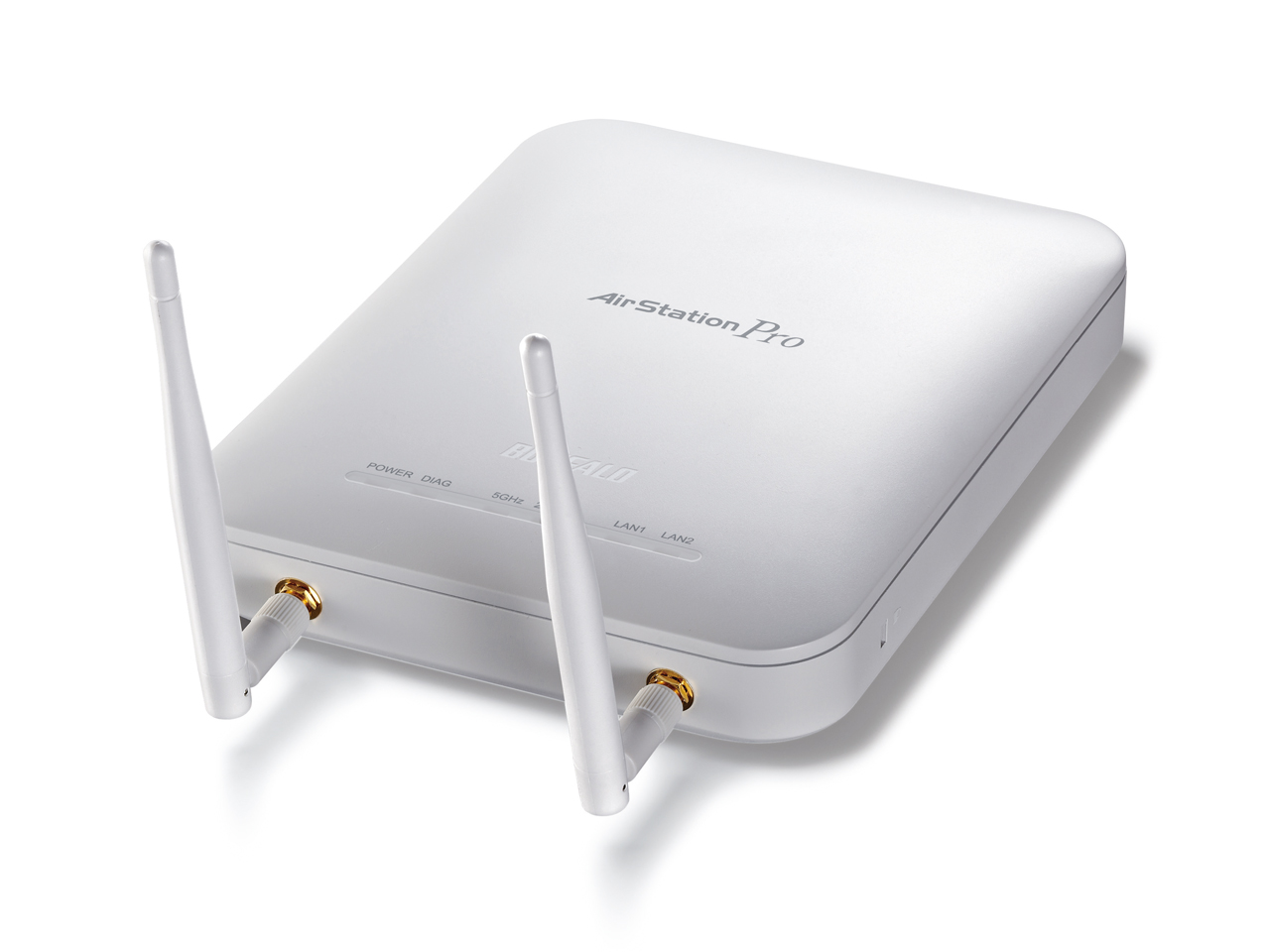

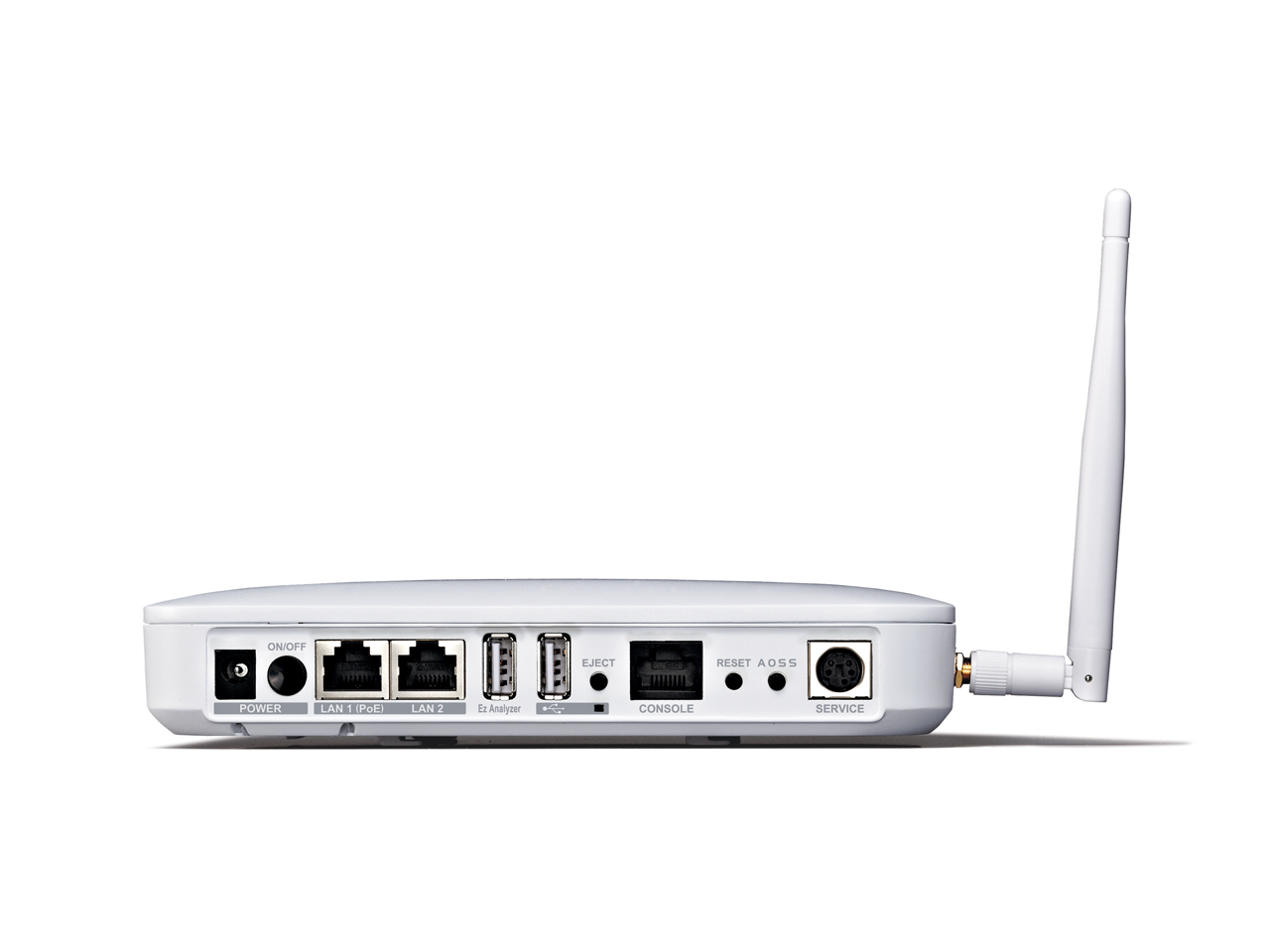

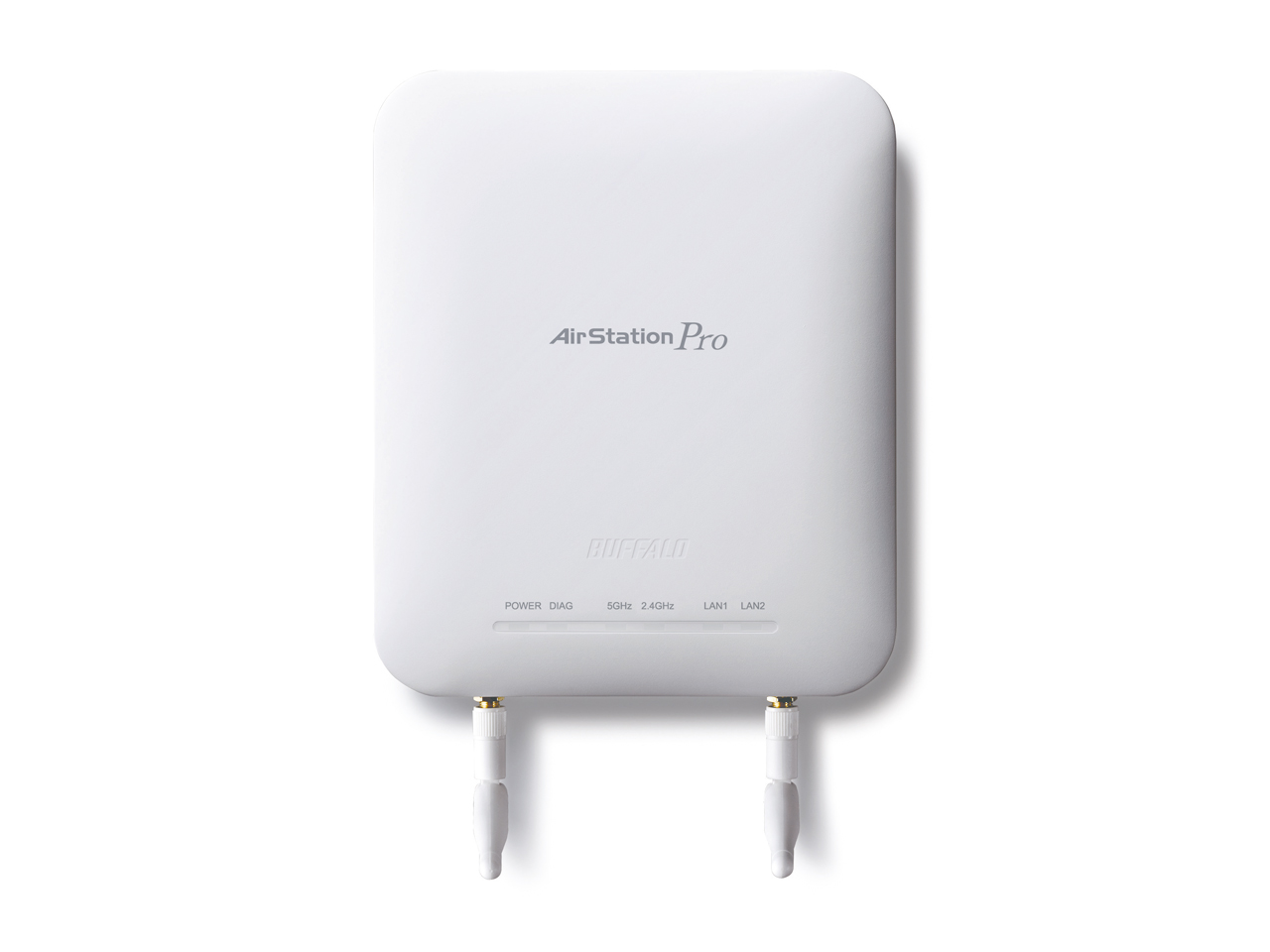

Hardware Overview

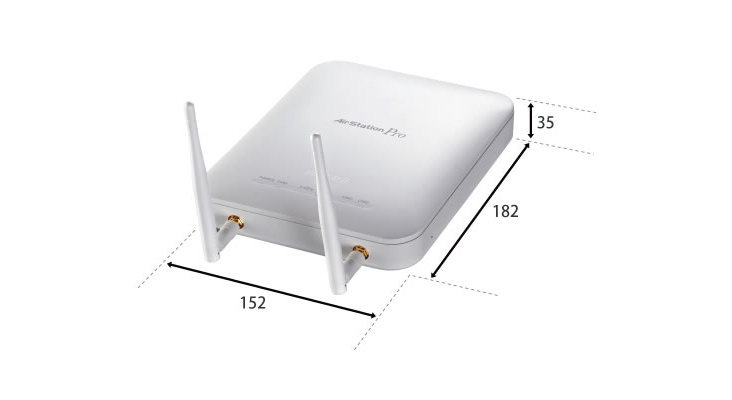

Dimensions
*Values are in milimeters.
Model
| Name | WAPS-AG300H |
|---|
Wirelss LAN Interface
| Standard Compliance | IEEE802.11a/IEEE802.11b/IEEE802.11g/IEEE802.11n |
|---|---|
| Transmission Method | Direct Sequence Spread Spectrum(DSSS),OFDM,MIMO |
| Transmission Rate | 802.11b: 11,5.5,2,1Mbps 802.11a/g: 54,48,36,24,18,12,9,6Mbps 802.11n: 20MHz BW (Long GI) 130,117,104,78,52,39,26,13Mbps(2 stream) 65,58.5,52,39,26,19.5,13,6.5Mbps(1 stream) 20MHz BW(Short GI) 144.4,130,115.6,86.7,57.8,43.3,28.9,14.4Mbps(2 stream) 72.2,65,57.8,43.3,28.9,21.7,14.4,7.2Mbps(1 stream) 40MHz BW(Long GI) 270,243,216,162,108,81,54,27Mbps(2 stream) 72.2,65,57.8,43.3,28.9,21.7,14.4,7.2Mbps(1 stream) 40MHz BW(Short GI) 300,270,240,180,120,90,60,30Mbps(2 stream) ;150,135,120,90,60,45,30,15Mbps(1 stream) |
| Access Mode | Infrastructure Mode,WDS Mode |
| Security | AOSS,WPA2(TKIP/AES),WPA(TKIP/AES),WPA/WPA2 mixed PSK,IEEE 802.1X/EAP,64-bit and 128-bit WEP,MAC ADDRESS Filter |
Wired LAN Interface
| Standard Compliance | IEEE802.3ab(1000BASE-T),IEEE802.3u(100BASE-TX),IEEE802.3(10BASE-T) |
|---|---|
| Transmission Rate | 10/100/1000Mbps |
| Transmission Encoding | 1000BASE-T 4DPAM5,100BASE-TX 485B/MLT-3,10BASE-T Manchester Coding |
| Access Method | CSMA/CD |
| Speed and Flow Control | 10/100/1000Mbps,Auto Sensing,Auto MDIX |
| Number of LAN Ports | 2 |
| LAN Port Connector | RJ45 |
USB Interface
| Interface | USB2.0 |
|---|---|
| Connector Type | Type A(plug) |
| Compliance | 5.0V 500mA(max 1000mA) |
Other
| Power Supply | External AC 100-240V Universal,50/60 Hz Power over Ethernet |
|---|---|
| Power Consumption | About 12W(Max) |
| Dimensions | 152mm x 182mm x 35mm (5.98 x 7.17 x 1.38 in.) |
| Weight | 440g (15.52 oz.) (not including antennas) |
| Operating Environment | 0-45° C (32-104° F), 10-90% (non-condensing) |
Frequency Range
| USA, Canada, Brazil | 2,412 - 2,462 MHz(Channels 1-11) 5,180 - 5,240MHz (Channels 36,40,44,48) 5,745 - 5,825MHz (Channels 149,153,157,161,165) |
|---|---|
| Mexico | 2,412 - 2,472MHz (Channels 1-13) 5,180 - 5,240MHz (Channels 36,40,44,48) 5,745 - 5,825MHz (Channels 149,153,157,161,165) |
| EU ,Russia ,Kuwait ,Saudi Arabia ,UAE ,Australia ,Hong Kong ,The Philippines ,India ,Thailand ,Malaysia ,Singapore ,Vietnam | 2,412-2,472MHz(Channels 1-13) 5,180-5,240MHz (Channels 36,40,44,48) |
| South Korea | 2,412-2,472MHz (Channels 1-13) 5,745-5,825MHz (Channels 149,153,157,161,165) |
| China ,Taiwan | 2,412-2,462MHz (Channels1-11) 5,745-5,825MHz (Channels 149,153,157,161,165) |
