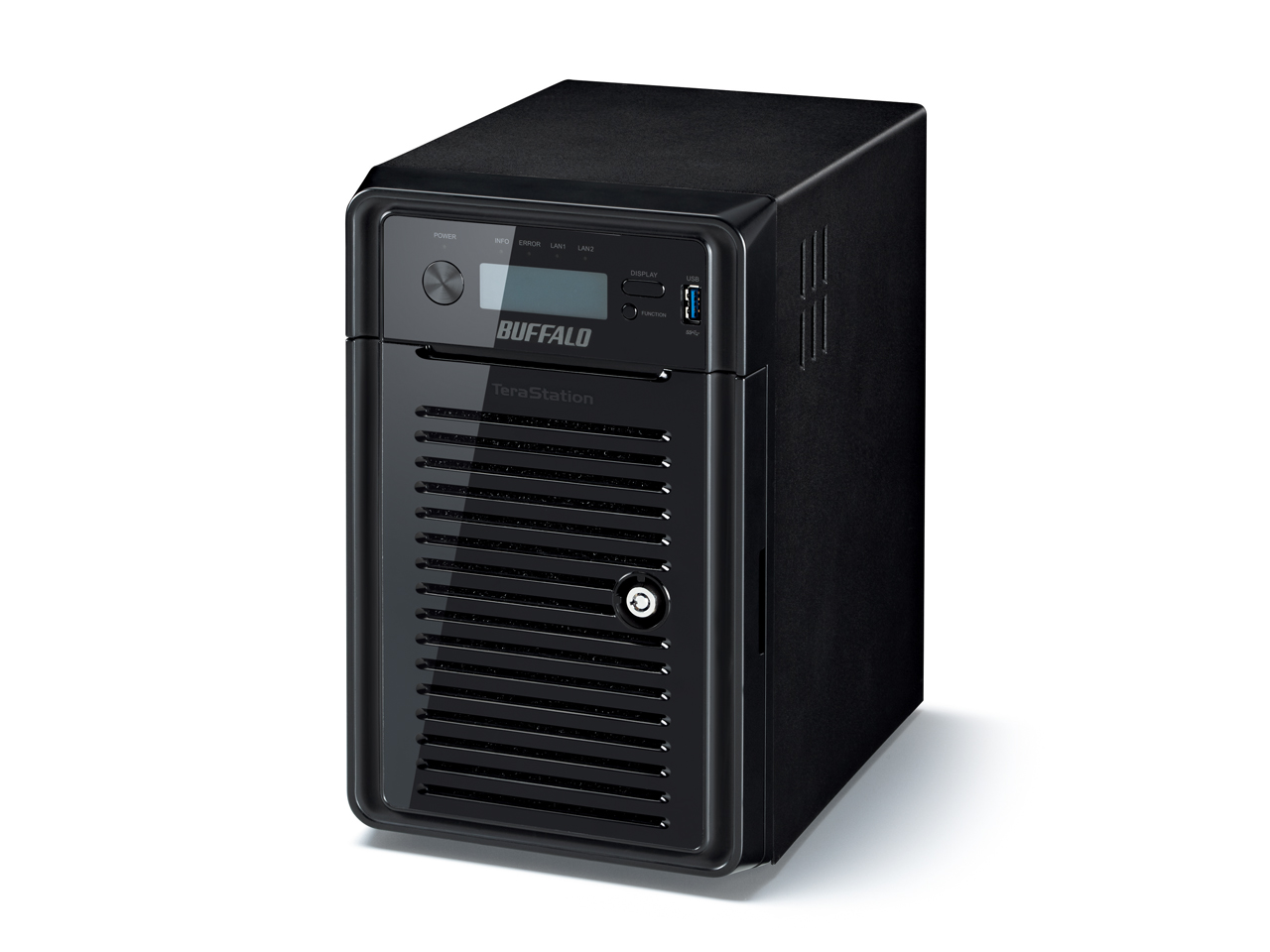

TeraStation 5600 is a high performance 6-drive network storage solution ideal for businesses and demanding users requiring a reliable RAID based NAS and iSCSI storage solution for larger networks and business critical applications. With the powerful dual-core 2.13 GHz Intel? Atom? processor D2700, TeraStation 5600 provides exceptional performance during file transfers and everyday NAS functions: experience maximum network throughput while a replication job runs in the background, network surveillance video is recording from multiple IP cameras and remote users are accessing content.
Business Class NAS Features

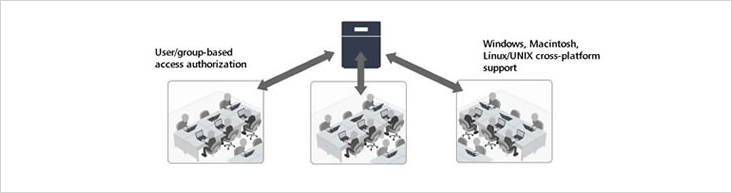

Secure file sharing from a central location with cross-platform support and access restrictions

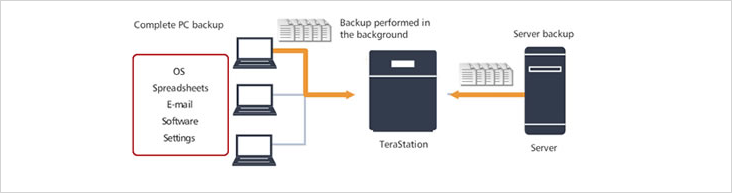

Backup all mission-critical data for peace of mind
- NovaBACKUP® backup software
- Time Machine support
- Supports most major server backup software

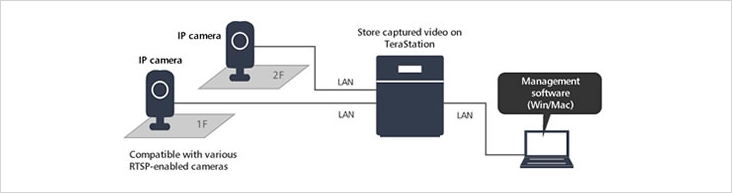

Buffalo Surveillance Server
Store video captured with an IP camera directly on a TeraStation via a network.
Supports up to ten IP cameras per TeraStation. Just select the camera model and enter the IP address on the setup screen, and the TeraStation is set to record video.
With the management software, you can centrally control multiple TeraStations from a single point, such as a Windows PC or Mac.
The TeraStation can be configured to automatically switch over to a secondary TeraStation when the primary TeraStation runs out of capacity, to continue recording without interruption.
*Product comes with one free camera license. Additional licenses available for purchase

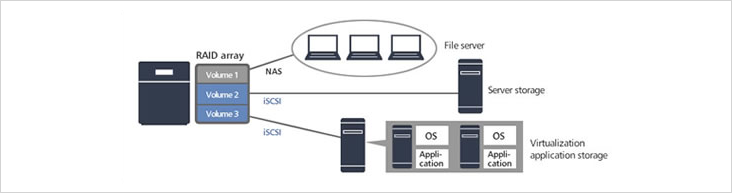

Create NAS and iSCSI volumes on a single RAID array. Supports simultaneous usage of NAS and iSCSI in one device.
The TeraStation can be backed up to another TeraStation by replicating one to the other. When the primary TeraStation faces hardware failure, the secondary TeraStation will automatically take over NAS operations (Failover), without any noticeable service interruption to users. Failover also keeps trace of various setting changes, minimizing restoration workload.

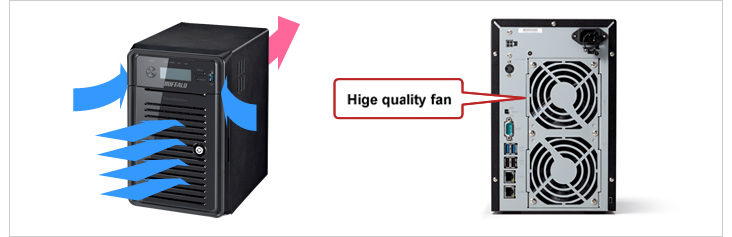

•Hardware Supporting 24/7 Operations
Advanced ventilation design reduces internal heat
Large fan cools hard drives efficiently
Front panel filter keeps dust out
Manage access restrictions with user account information from the Windows Active Directory server
•Settings such as read/write access and user/group-based access authorization can be tailored to your needs
•DFS Namespace support
•Disk quota support prevents users/groups from consuming too much disk space
•Hide specific folders for limited access
•Offline Files feature enables folder synchronization to/from your laptop for offline accessibility

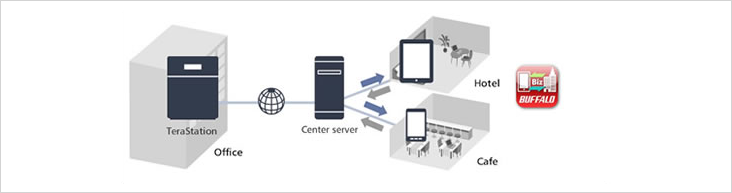

WebAccess for Business
•WebAccess for Business smartphone app
Free app for Android, iPhone, and iPad, to access and manage the TeraStation over the Internet. Configure your TeraStation from the palm of your hand!

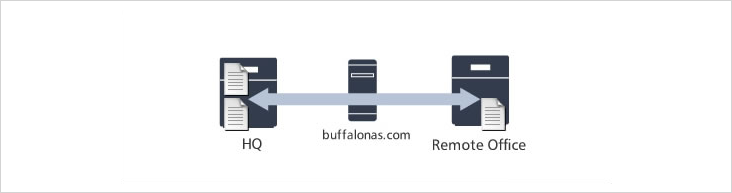

Share files with remote locations by synching folders between two TeraStations over the web.
•Easy setup wizard and management through intuitive web interface
•USB print server
•Scheduled shut down eliminates unnecessary access and reduces energy costs
•AES-128 bit hard drive encryption
•Hide specific folders for limited access
•Security lock slot
Certified Citrix Ready®
Citrix Ready is an end-to-end partner program for introducing and recommending third-party products, solutions, and services. This program allows solutions that Citrix recommends to be found rapidly and easily with the aim of improving the quality of the products Citrix offers.
For more detailed information about the Citrix Ready program, refer to this site: www.citrix.com/ready/en
|CPU||Intel Atom D2700|
Internal Hard Drives
|Number of Drives||6|
|Drive Interface||SATA II|
|Supported RAID Levels||0, 1, 5, 6, 10, 50, 51, JBOD (Normal)|
|Speed and Flow Control||10/100/1000 Mbps (Auto Sensing)|
|Number of Ports||2 x RJ-45 (Auto MDIX)|
|Standard Compliance||USB 2.0 / USB 3.0|
|Connector Type||A type|
|Number of Ports||2 x USB2.0 / 3 x USB3.0|
|Standard Compliance||D-Sub 9pin|
|Number of Ports||1|
|Number of Ports||-|
|Redundant Power Surpply||-|
|File Sharing||CIFS/SMB, AFP, HTTP/HTTPS, FTP/FTPS, SFTP, NFS|
|Directory Integration||LDAP, Active Directory|
|Client OS Support||Windows® 8 (32/64-bit)/ 7 (32/64-bit)/ Vista® (32/64-bit)/ Windows® XP
Windows Server® 2012/ 2008 R2/ 2008/ 2003/ 2000
Mac OS® X 10.8/ 10.7/ 10.6/ 10.5/ 10.4
|Power Consumption||100W (Average), 120W (Max)|
|Dimensions (LxWxH, )||170 x 260 x 230|
|Operating Environment||5-35°C, 20-80% (non-condensing)|
|Power Supply||AC 100-240V, 50/60Hz|
Front Panel Key
Quick Setup Guide
