LinkTheater™ HD Digital Media Player
LT-V100
The LinkTheater™ LT-V100 is an HD digital media player capable of playing back full-HD 1080p movies on your TV via a network or USB connection. The LT-V100 sports an HDMI port for easy connection to your TV.
Play video and photos in high
Full HD 1080p support
The LT-V100 is a simple digital media player which can play movies, pictures and music saved in your camcorders, digital cameras, external hard disks, USB flash drives, computers and other equipment on your TV set.
It supports high quality full-HD playback and can play home videos and photos on a big screen TV in the living room
HDMI Interface
HDMI interface allows you to easily connect the LinkTheater to a TV and enjoy high definition playback.
Full HD videos and images can be played without distortion.
DTS and Dolby Digital 5.surround sound support
Optical audio port on back of device.
Supports DTS and Dolby Digital 5.1 surround sound. You can achieve more immersive sound by connecting with a multi-channel speaker.

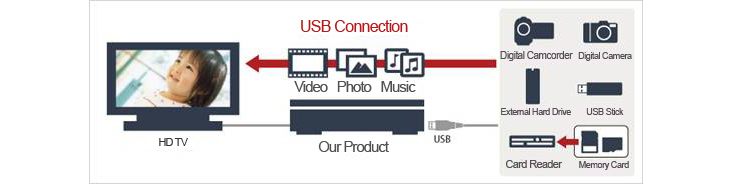

Playback contents in USB devices
Connects to your camcorder, digital camera, USB hard drive, USB flash drive and flash memory.
Play back movies, music, and pictures on a big-screen TV through simple operations.

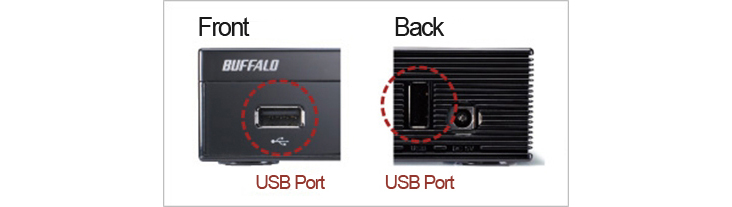

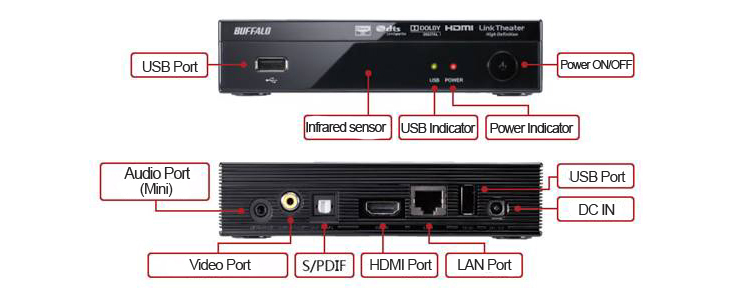

USB ports are provided in the front and back of LT-V100
Equipped with two USB ports. The front USB port can be used for quick USB access.
The rear USB port is ideal for keeping a USB storage device connected so you can immediately access the contents anytime

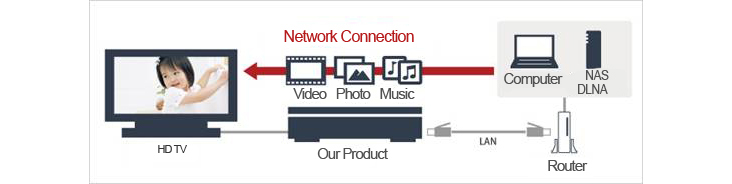

Since the LT-V100 supports network connection, you can now enjoy videos, pictures and music stored on computers・ and NAS devices throughout your home network on the big-screen TV in your living room.

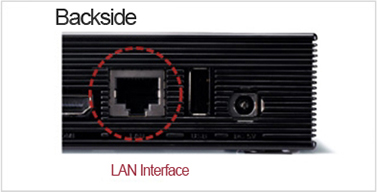

Network Connection
Equipped with 100 Base-TX Ethernet port.

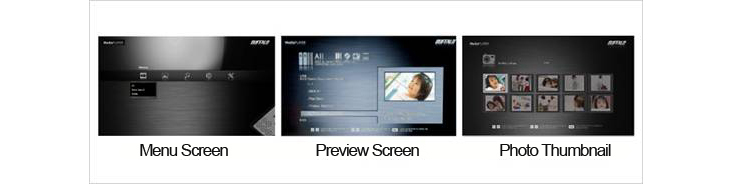

Simple User Interface
Simple interface to navigate through videos, pictures, and music intuitively.
ideos can be previewed on the menu screen to make it easier to find the video you’re looking for.
Pictures can be shown as thumbnails to quickly browse through your collection

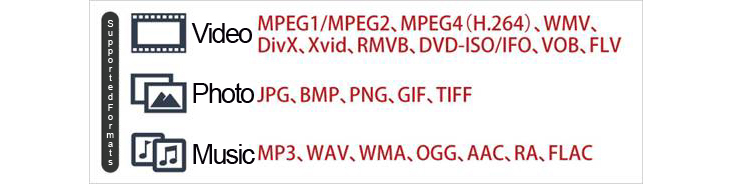

Plays a broad range of formats
Can play a broad range of video, image, and audio formats, freeing you from the hassle and confusion of dealing with different format compatibility issues.
Play DVD - iso image files
Supports DVD ISO image file playback stored in USB hard drives and NAS devices
The DVD menu can be displayed on the screen, so you can select the contents to play

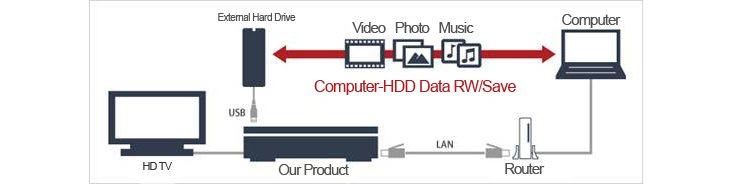

Share a USB hard drive over the network
Store and share data
You can turn a USB hard drive into a NAS device by connecting it to the LT-V100
Once connected, the hard drive can now be accessed from computers on your network.
Simply save your videos, pictures, and music on the hard drive
Now your videos, pictures, and music can be enjoyed from any computer on your home network.
Hardware Features

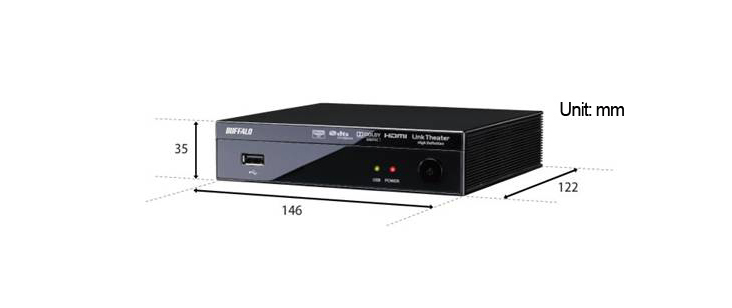

Dimensions
Model
| Name | LT-V100 |
|---|
Supported Devices
| Devices | Televisions supporting HDMI and composite video |
|---|
Wired LAN Interface
| Specification | IEEE 802.3/IEEE 802.3u (10BASE-T / 100BASE-TX) |
|---|---|
| Connector Type | RJ-45 |
| USB Interface | Interface USB2.0/1.1 Data Transmission Speed 480 Mbps |
Media
| Videos:(Format,Max. Resolution,Max. Bit Rate ,Restrictions) | MPEG-1, 1920 × 1080 × 30p, - , - MPEG-2 1920 × 1080 × 30p 25 Mbps Simple and Main profile@High Level MPEG-4 SP/ASP ,1920 × 1080 × 30p , 7 Mbps, - MPEG-4AVC（H.264） ,1920 x 1080 , 7 Mbps , Main and High profile @ Level 4.1 VC-1 , - , -, SP,MP,AP@L3 DivX3/4/5/6 ,1920 x 1080 x 30p , 8 Mbps, - Xvid ,1280 × 720 × 30p, 8 Mbps, - MJPEG ,640 × 480 × 30p, -, - WMV9 ,1920 × 1080 × 30p, 8 Mbps, - RealVideo ,1280 × 720 × 30p, -, RV8,RV9,RV10 FLV(H.263） ,352 × 288p, - , - |
|---|---|
| MKV (Matroska) Files:(Format,Max. Resolution,Max. Bit Rate ,Restrictions) | MPEG-2, (1920 × 1080 × 30p), -, (Simple and Main
profile @ High Level,
Audio Format：AAC, Dolby Digital(AC-3), DTS, MP3, PCM) MPEG-4 SP/ASP ,(1920 × 1080 × 30p), -, (Audio Format：AAC, Dolby Digital(AC-3), DTS, MP3, PCM) MPEG-4AVC（H.264), -, -, (Main and High profile @ level4.1 Audio Format：AAC, Dolby Digital(AC-3), DTS, MP3, PCM) |
| Images:(Format,Restrictions) | jpeg Up to 40 Megapixels. Baseline JPEG support only. bmp Max. 3968 pixels png Max. 3968 pixels gif Max. 3968 pixels tiff Max. 3968 pixels |
| Music:(Format,Specification,Restrictions) | jpeg ,(44.1kHz/48kHz,-288kbps), (ISO/IEC 13818-7) MPEG-1Layer1,2,3(MP3) ,(44.1kHz/48kHz,-320kbps) (ISO/IEC-11172-3) WMA ,(44.1kHz/48kHz,-192kbps), - WAV ,- ,- OGG Volbis ,(44.1kHz/48kHz,-500kbps), - RA ,- ,(During video playback only) FLAC -, - LPCM -, (During video playback only) Dolby DigtalAC3 - ,During video playback only DTS - During video playback only |
| Interfaces | ideo output (RCA) HDMI output Stereo output Optical audio output LAN Interface (100BASE-TX / 10BASE-T) |
USB A interface x* 2 ( 1 x front, 1 x rear)
Power input
| 电源 | |
|---|---|
| 最大功耗 | |
| 尺寸 | |
| 重量 | |
| 操作环境 | |
| 包装清单 |
