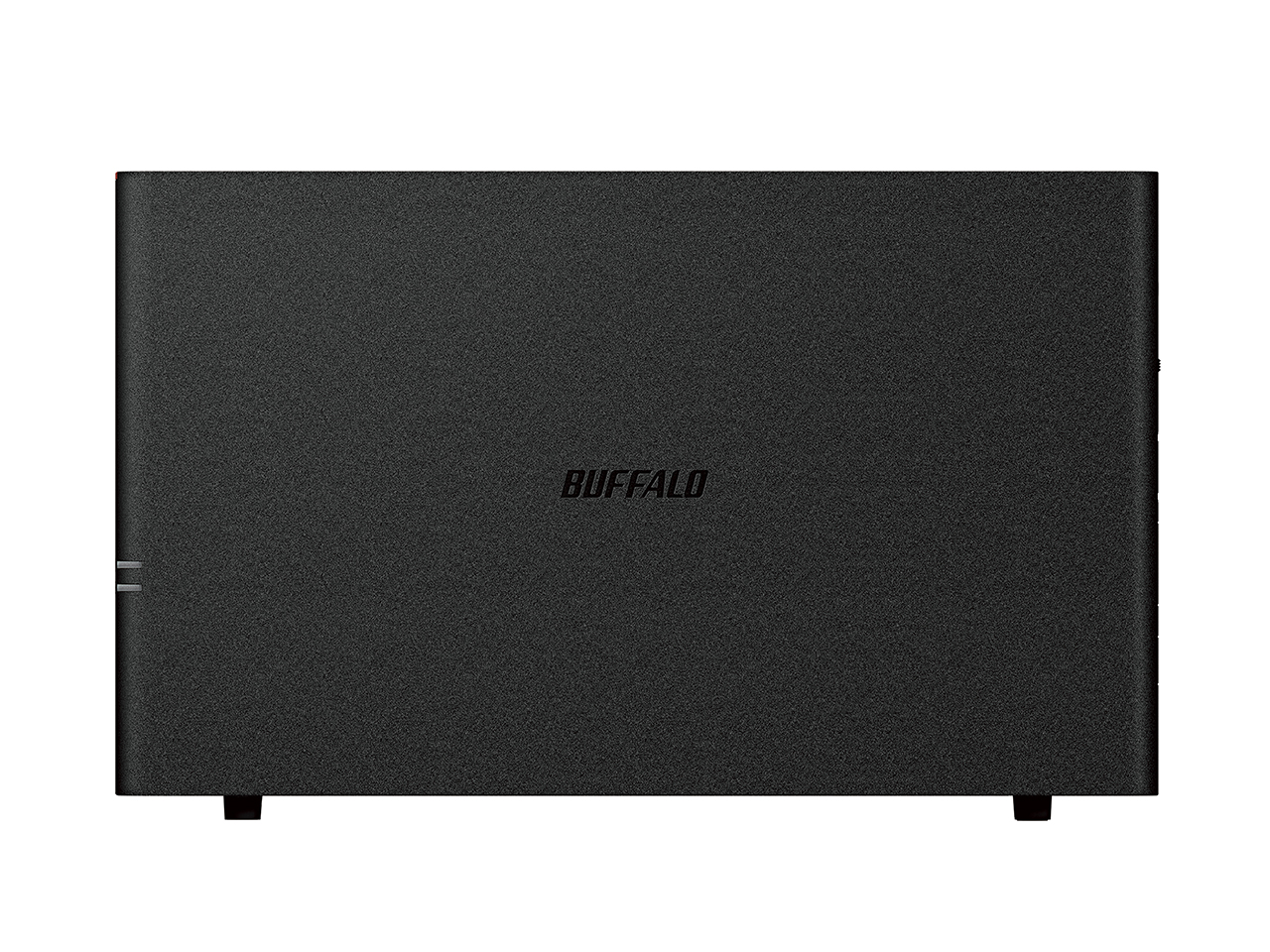

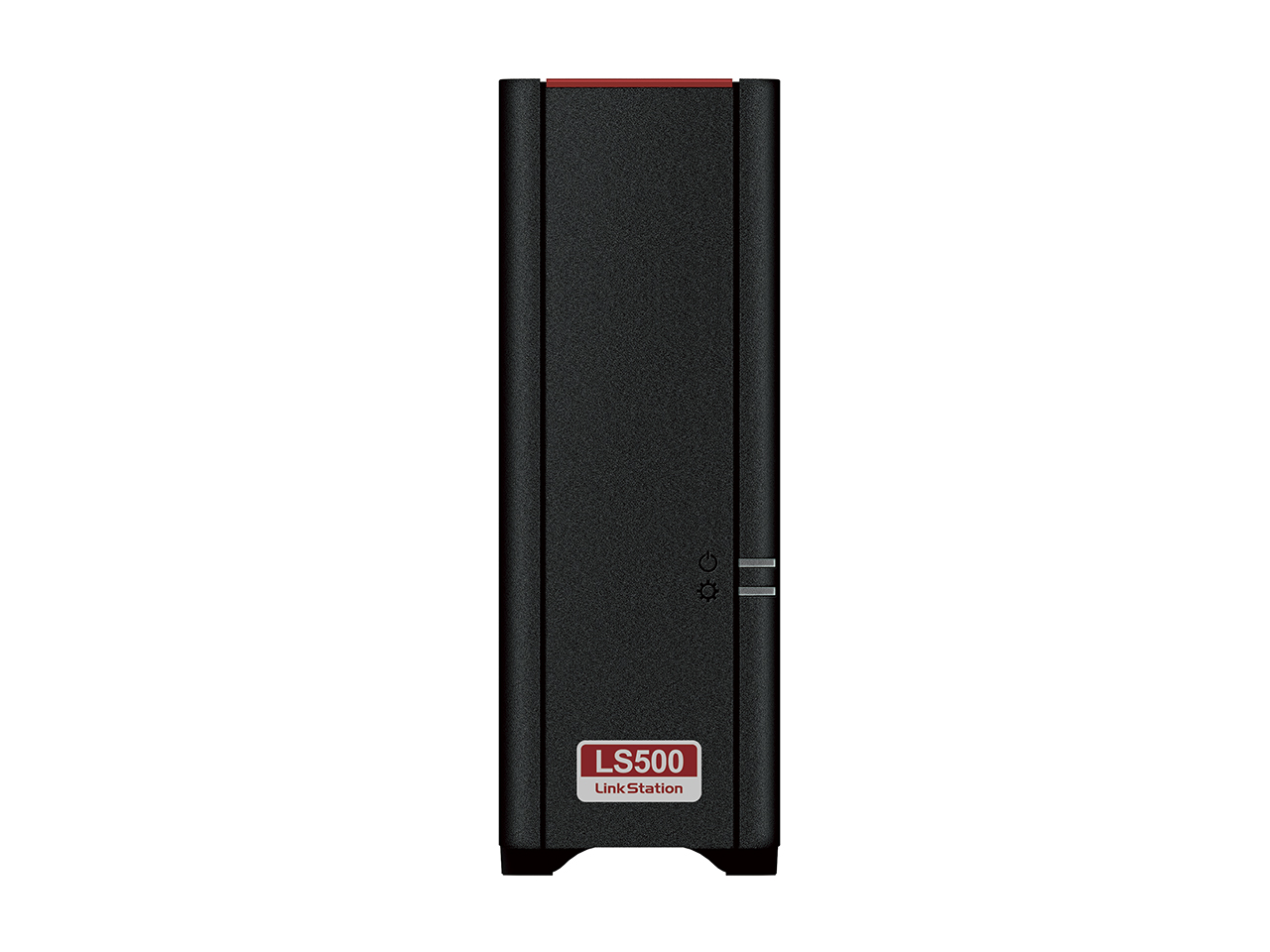

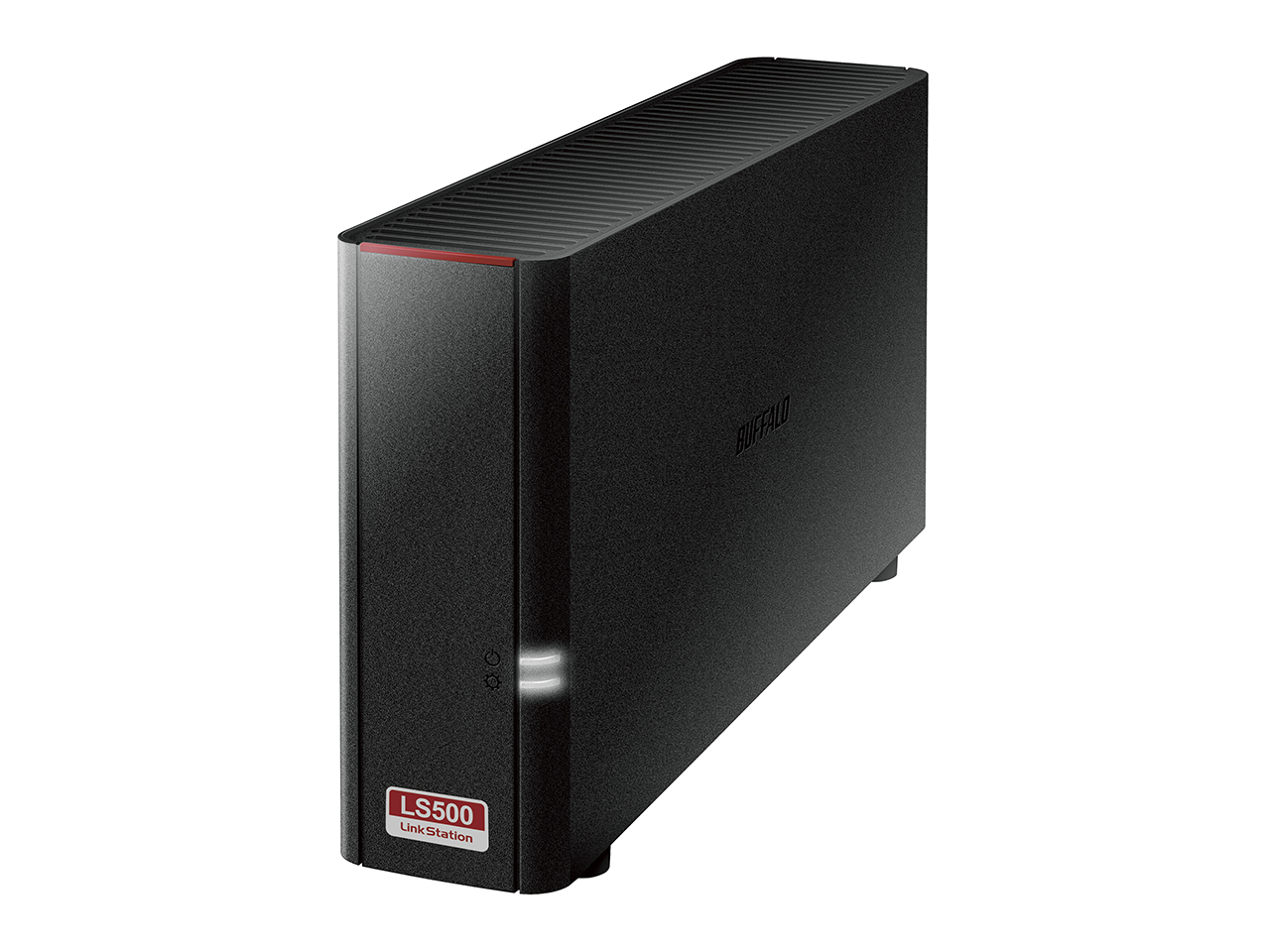

LinkStation™510D High Performance Single-drive Network Storage


The LinkStation Network Attached Storage (NAS) is an incredibly powerful yet convenient way to link and manage data stored on computers, smartphones, tablets, and other devices. Easy to set up and use, the LinkStation features massive storage and is packed with convenient features for transferring files, streaming content, adding disks, backing up and protecting data, and more.

2.0TB : LS510D0201
3.0TB : LS510D0301
4.0TB : LS510D0401

Easily access files the same way you do with smartphones, tablets and computers.

Gives everyone in the family quick access!

This unit enables high-speed more than 100 MB/s transfers. Enjoy getting to your photos, movies, and music quickly and reliably, even with the entire family accessing their data at the same time.

Designed and built for higher performance

130% Faster than LS410

With the latest-generation processors and technologies, the LinkStation achieves data transfer speeds of 100 MB/s or more (when DLNA feature is switched off; default DLNA setting is "Off"). Experience fast copies and videos, streamed content, and more, without the stalls or hiccups.

*Increase in transfer speed varies depending on the number and size of files, type of access and PC environment.

use your home NAS remotely

Access all kinds of data - video, music, photos, and more

You can access the LinkStation even while away and use it like a smartphone or notebook computer's external HDD to enjoy video, music,photos, and other data stored on the NAS.

Advanced Features

iTunes® Server

LinkStation NAS System has an integrated iTunes server allowing users to set up LinkStation as a content source to easily stream content from their LinkStation device directly to any network device running iTunes.

*Supports playback of files on up to five computers and transfers to iPods.
*Supported formats : Audio data (MP3/M4A/M4P)


Installation is easy with the included setup CD.

NAS Navigator

Easily find and connect to your LinkStation using the NAS Navigator tool. NAS Navigator finds all NAS devices attached to your network, making it easier to manage multiple NAS devices.

Built-in BitTorrent

You can also access the LinkStation from smartphones, tablets, computers, TVs, and game devices on the network, allowing you to enjoy video, photo, and music files saved on the LinkStation through these devices. DLNA-compatible TVs and game devices can directly play data stored on the LinkStation. A single LinkStation can be used as the central device for storing all kinds of data on the home network.

External Hard Drive Support

Plug a USB hard drive into the available USB port to expand the total capacity of your LinkStation unit. External storage cannot be added to the LinkStation RAID array.

Mac OS X: Time Machine®

LinkStation supports Time Machine for Mac users, including Mac OS X Lion. Schedule backups from one or multiple Mac computers on your network.

Back up your data and prepare for data disasters

Supports Apple Bonjour

FTP Server

LinkStation NAS System offers an optional FTP server allowing users to securely access and share files on their LinkStation NAS device from outside the local network. The FTP server uses the same security settings as LinkStation user/group network file sharing.



Name LS510D


OS Linux Original
CPU Realtek RTD1195PN
Clock 1.0GHz
Memory DDR3 256MB

Internal Hard Drives

Number of Drives 1
Drive Interface SATA II
Supported RAID Levels -
Drive Capacity LS510D0201(2TB) LS510D0301(3TB) LS510D0401(4TB)

LAN Interface

Standard Compliance IEEE802.3/3u/3ab
Speed and Flow Control 10/100/1000 Mbps (Auto Sensing)
Number of Ports 1 x RJ-45 (Auto MDIX)

USB Interface

Standard Compliance USB 3.0
Connector Type A type
Number of Ports 1

Key Feature

Active Directory support N
Energy Save Y
Apple Bonjour® Y
Apple Time Machine® Y
iTunes® Server Y
WebAccess Y
BitTorrent™ Y
DLNA™ Media Server Y


Client OS Support Windows®10, 8, 7
Mac OS® X 10.8, 10.7
Android® 4.1 or later
iOS® 7 or later
Power Consumption 11W (Average), 24W (Max), 0.42W(Standby)
Dimensions (LxWxH, ) 128 x 45 x 205
Weight 1.1 kg
Operating Environment 5-35°C, 20-80% (non-condensing)
Power Supply AC 100-240V, 50/60Hz
Warranty 2-year

Package Contents

Contents LinkStation LS510D Ethernet Cable AC adapter AC Plug QSG (for PC/Mac) QSG (for Mobile) Warranty Statement
LS510D / 2016-03-30Product DatasheetDownload
