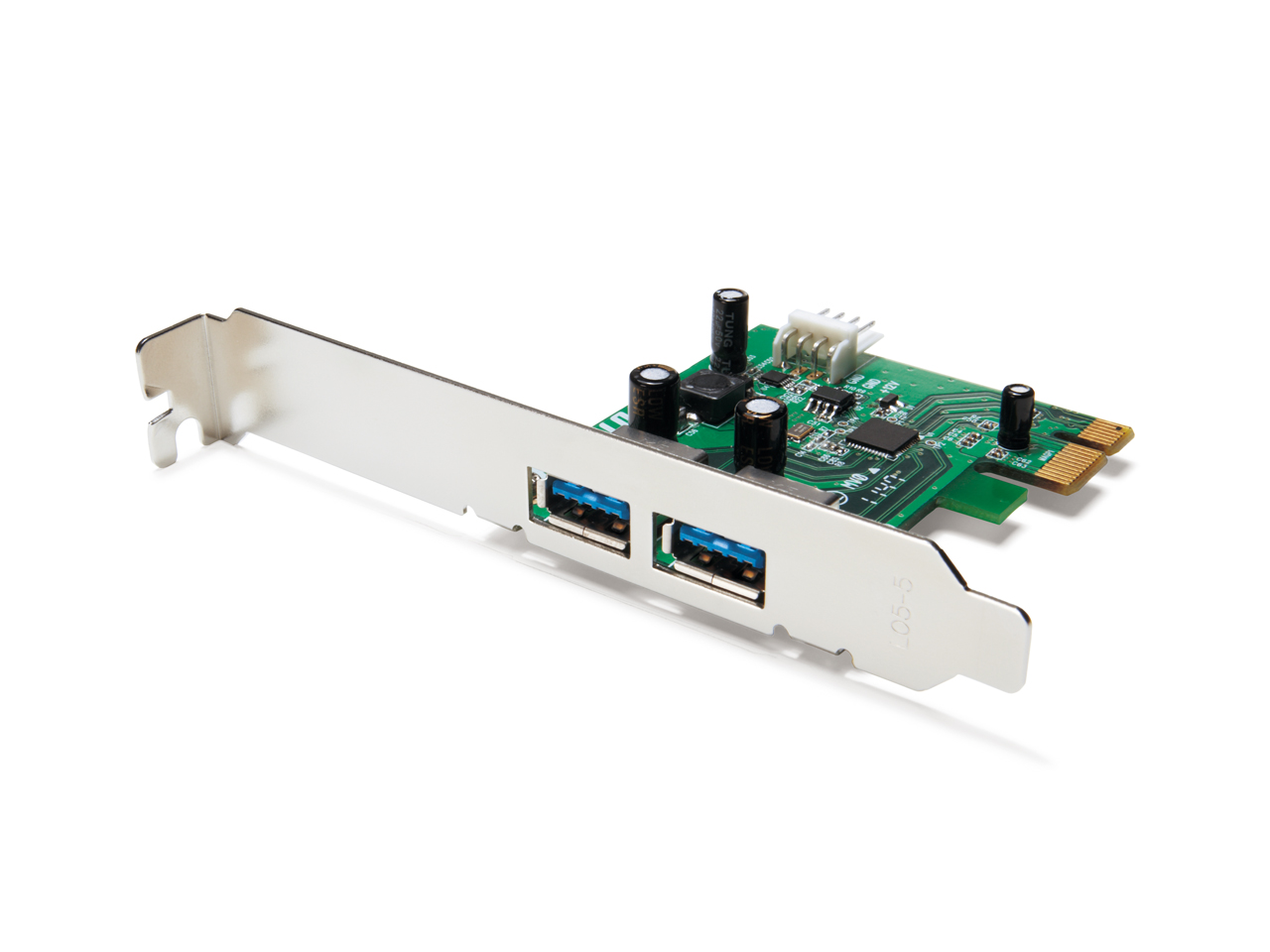

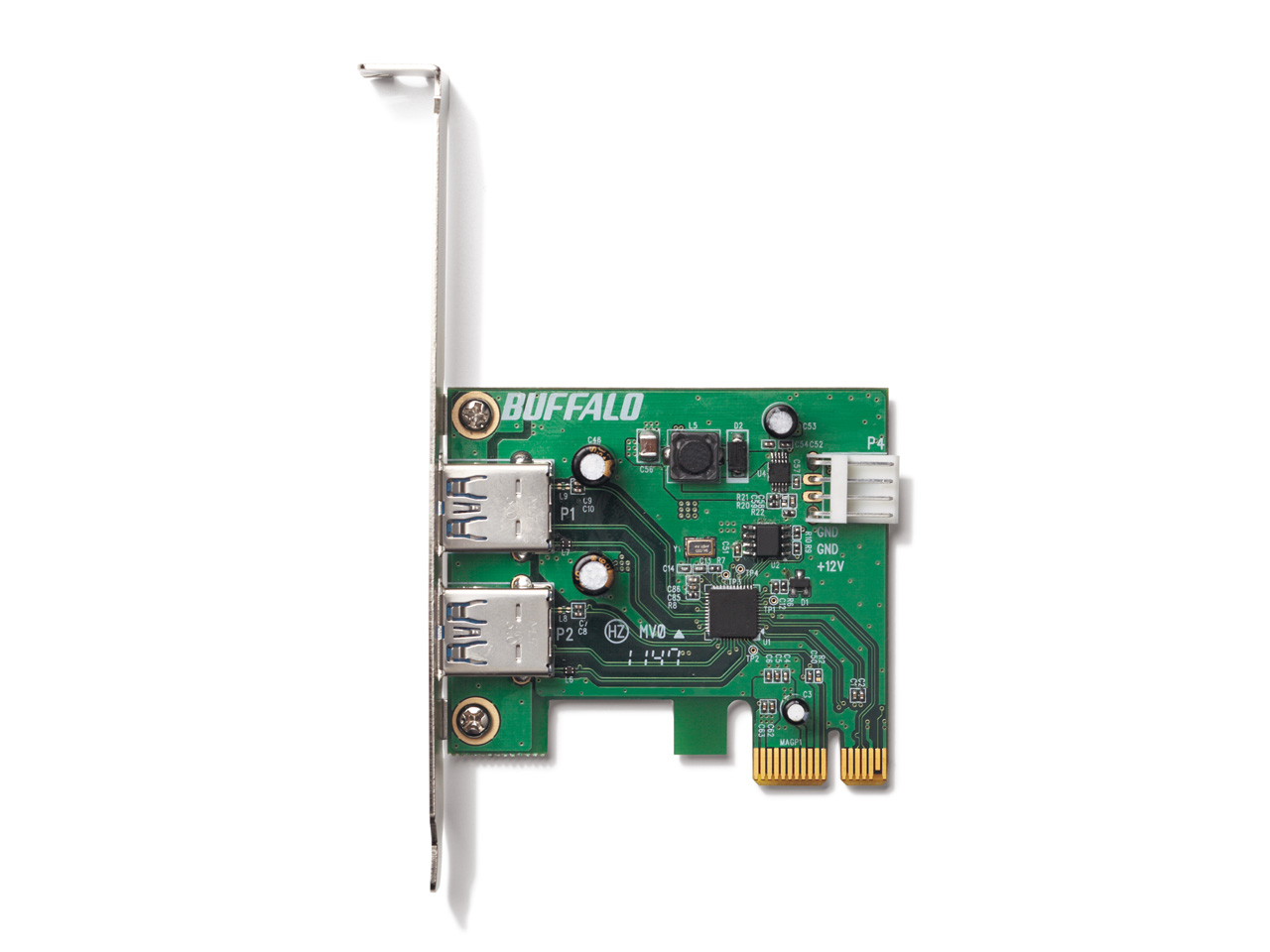

USB 3.0 Interface Board for PCI-Express with 2 ports


- 10 times faster sequential reads than available with USB 2.0―boosts speeds from 36.9 MB/s to 371.5 MB/s
- Fully backward compatible with USB 2.0
- Works great with BUFFALO's USB 3.0 HDDs such as DriveStation and MiniStation

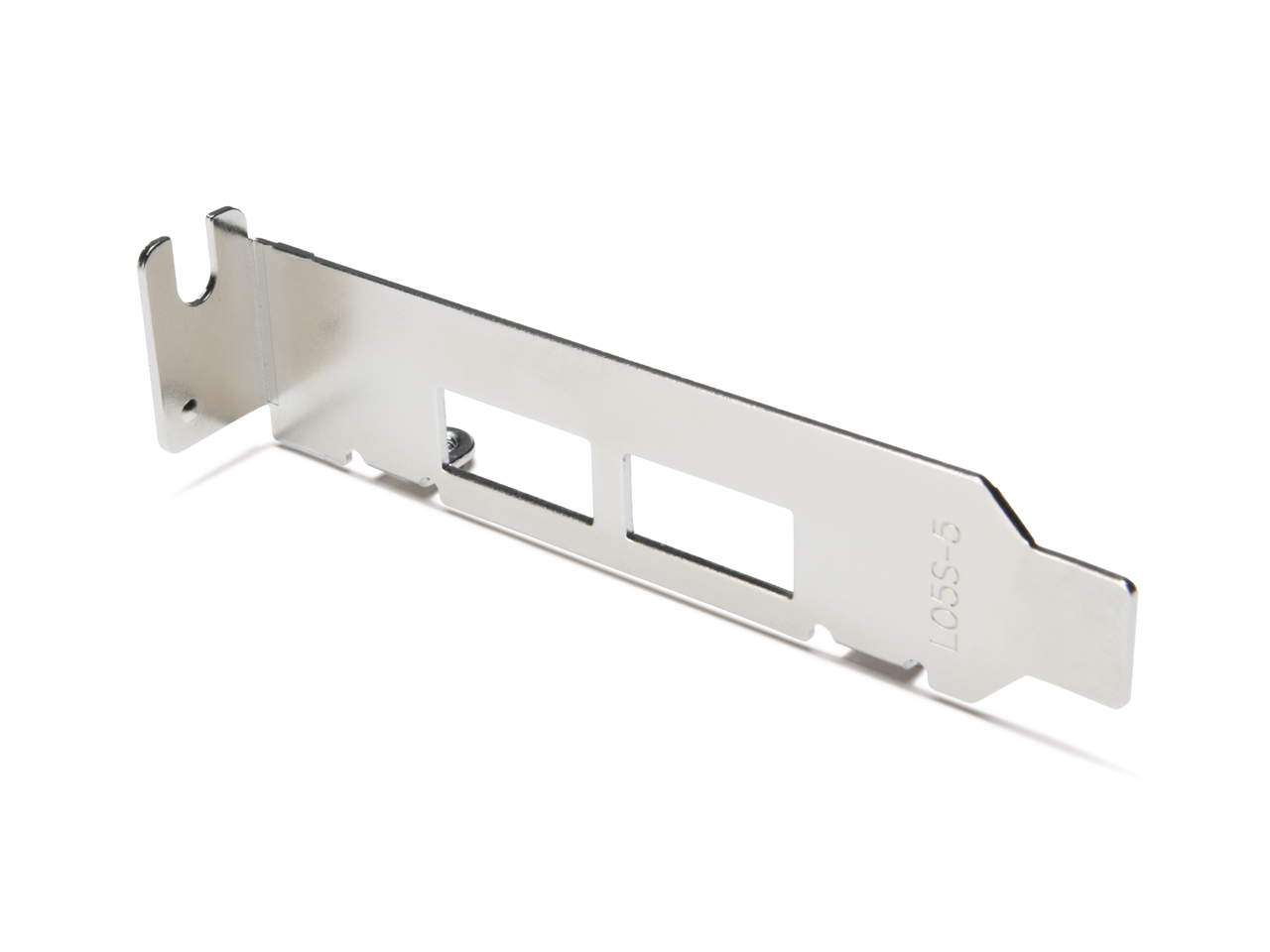

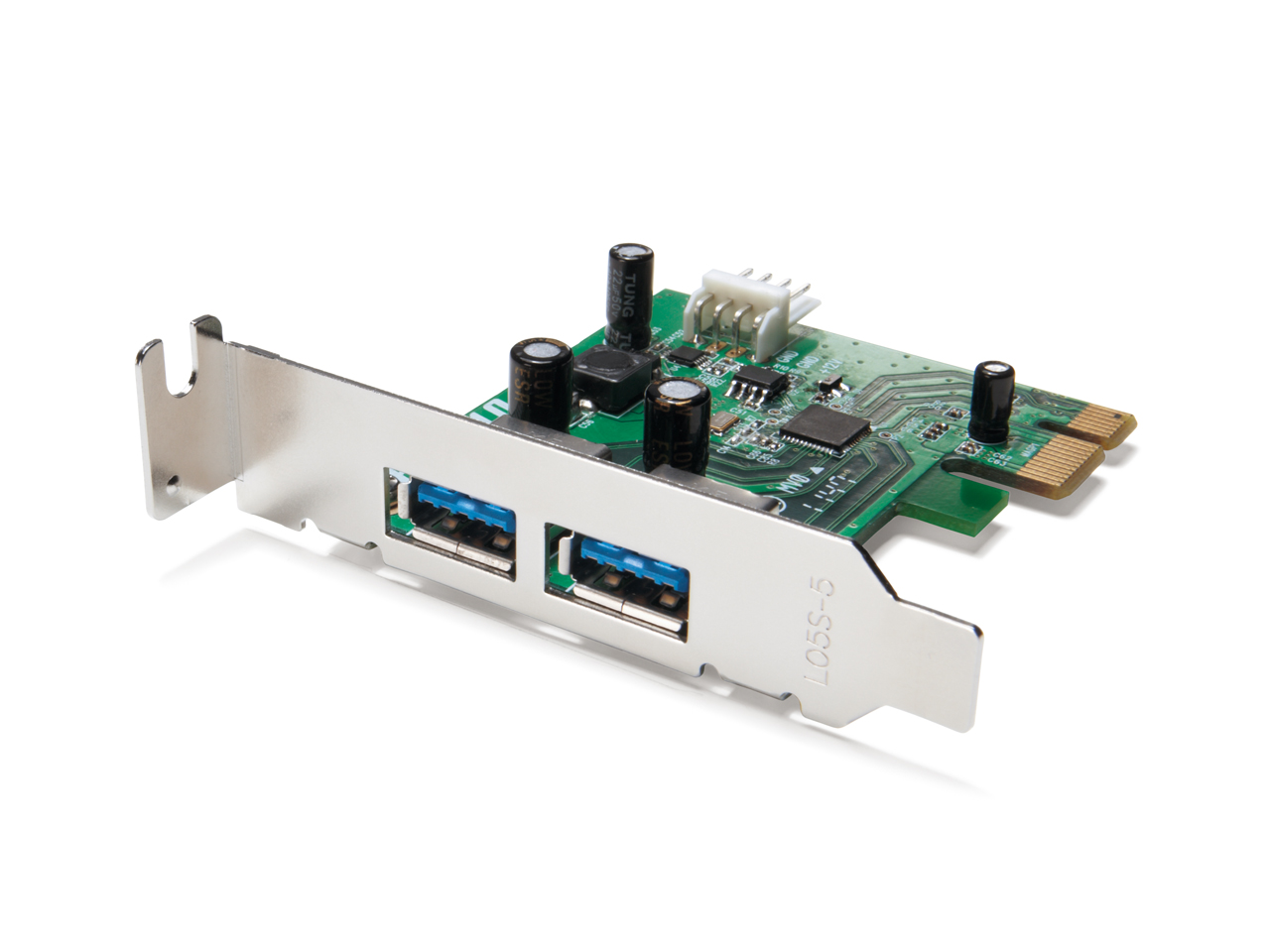

- Low-profile bracket included
- Hot-swappable support
- Supports Windows Server OS, Windows 7, Vista, and XP
- 3-year warranty


Like many consumers, you may be using more high-speed USB 3.0 devices. USB 3.0 offers transfer speeds of up to 5 Gbps* for much faster transfer and backups and better performance from connected devices. The 2-port IFC-PCIE2U3S2 PCI-Express Interface Card lets you enjoy the superior performance of these devices. But don't worry, both ports are also backward compatible with earlier USB 2.0 devices. The included low-profile bracket lets the card fit in the slim PCs easily, uses only one PCI Express bus, and the ports allow connection of two USB 3.0 devices such as external HDD, USB flash memory, SSD, and other USB devices at the same time.



Card Interface

Standard Compliance PCI Express

USB Interface

Standard Compliance USB 2.0 / USB 3.0
Number of Ports 2
Data Transfer Rates USB 3.0: Max. 5 Gbps USB 2.0: Max. 480 Mbps


Client OS Support Windows® 7 (32/64-bit), Vista® (32/64-bit),Windows® XP, Windows® 2000, Windows® Server 2003, Windows® Server 2008
Power Consumption
Dimensions (LxWxH, mm) 59 x 65
Weight 39.4 g
Warranty 3-year

Package Contents

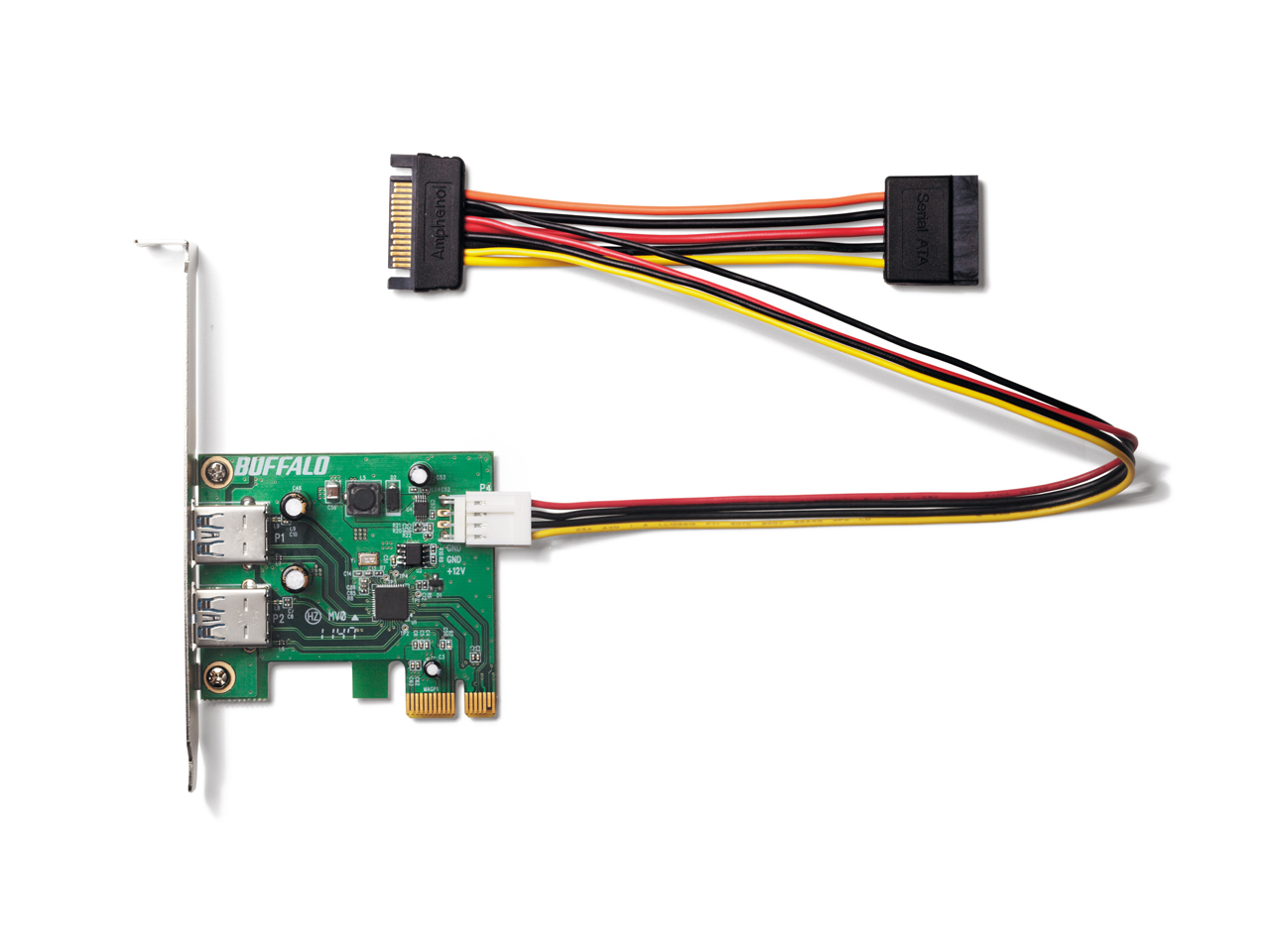

Contents USB 3.0 PCI Express Interface Board IFC-PCIE2U3S2 Low Profile Bracket Internal Power Cable CD-ROM Quick Setup Guide Warranty Statement
IFC-PCIE2U3S2 / 2012-12-14Product DatasheetDownload
