USB3.0 Interface Card


The USB 3.0 ExpressCard Adapter provides SuperSpeed USB capability to any PC laptop with an available ExpressCard 34 or 54 slot. USB 3.0 is the latest generation of USB technology, boasting enhanced transfer rates up to 5 Gbps. Super-Speed USB delivers faster access and transfer of your data while ensuring backward compatibility to USB 2.0 devices. The ExpressCard Adapter with two USB 3.0 ports provides two simultaneous USB 3.0 connections while offering a simple way to upgrade your laptop to SuperSpeed USB technology

USB 3.0 Express Card Adapter supporting Available ExpressCard

USB 3.0 is the latest generation of USB technology, boasting enhanced transfer rates up to 5 Gbp/s (specification value). The USB 3.0 PCI Express Card adapter is compatible with ExpressCard Slot in the latest laptops. USB 3.0 ensures backward compatibility to USB 2.0 devices and supports the latest personal computer in Windows 7 (32bit/64bit) OS

  • SuperSpeed USB 3.0: Ultra-fast transfer rates - up to 5 Gbps
  • Boost Your Peripheral Capability: USB 3.0 ExpressCard Adapter with 2 ports
  • The New Standard for USB: Connect any USB 3.0 device to your PC laptop
  • Backward Compatible: Works with USB 2.0 devices
  • Expand Your Storage: Great for connecting external USB 3.0 hard drives

Hardware Features



Name IFC-EC2U3/UC2

Card Interface

Standard Compliance Express Card 2.0

USB Interface

Standard Compliance USB 2.0 / USB 3.0
Number of Ports 2
Data Transfer Rates USB 3.0: Max. 5 Gbps USB 2.0: Max. 480 Mbps


Client OS Support Windows® 7 (32/64-bit), Vista® (32/64-bit),Windows® XP
Power Consumption 0.91W

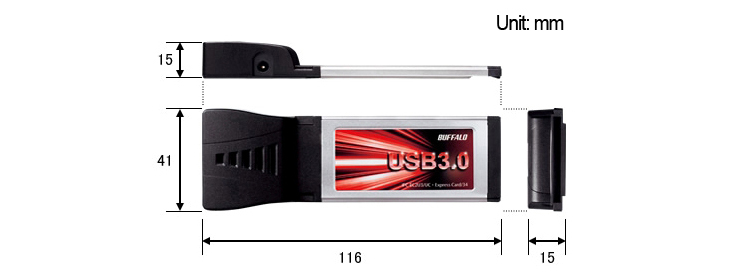

Dimensions (LxWxH, mm) 41 x 15 x 116
Weight 30.1 g
Warranty 3-year

Package Contents

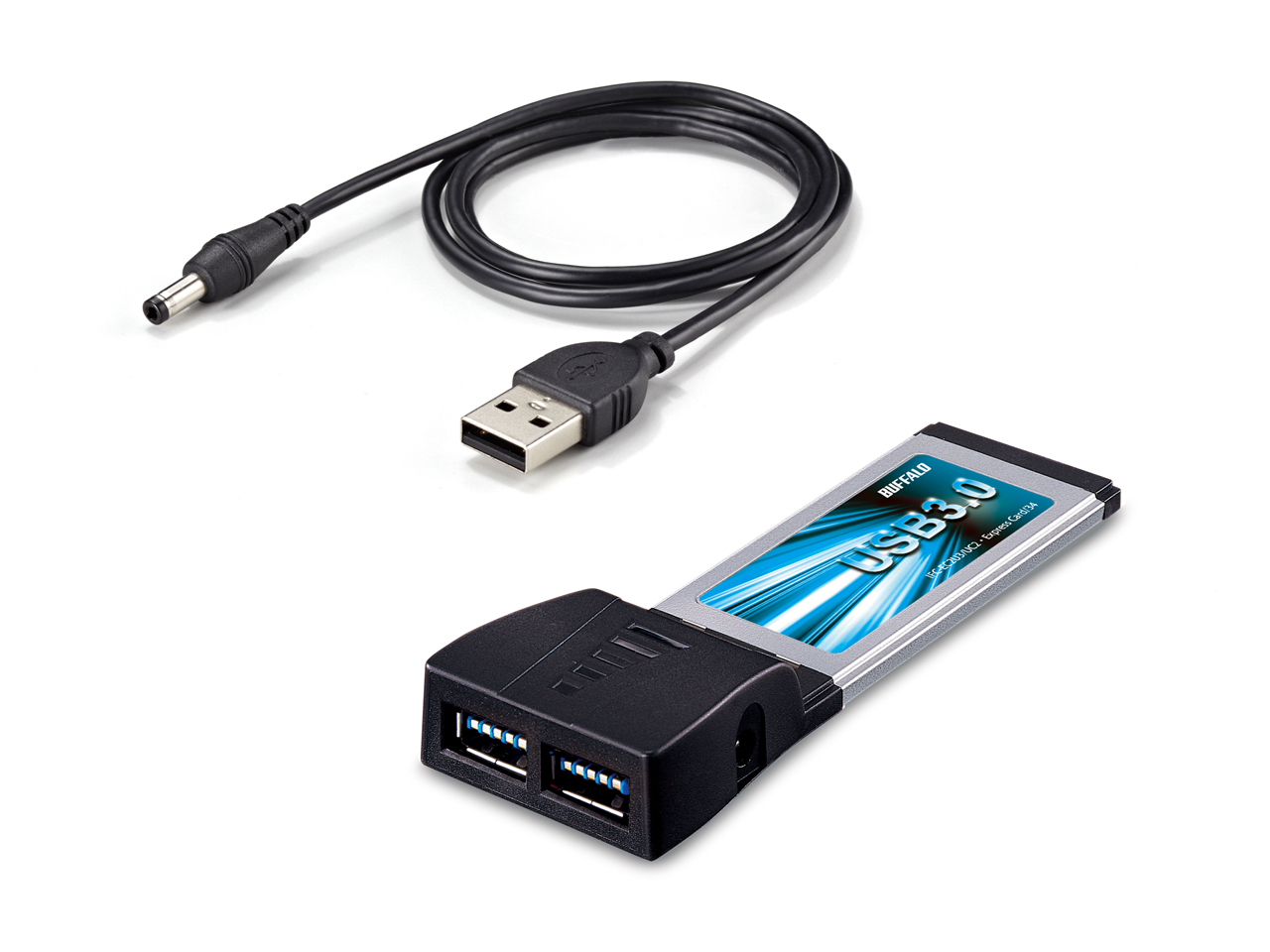

Contents USB 3.0 ExpressCard IFC-EC2U3/UC2 CD-ROM USB-DC Power Supply Cable Quick Setup Guide Warranty Statement
IFC-EC2U3/UC2 / 2012-12-14Product DatasheetDownload
