802.11n Fast Gigabit Dual Band Wireless Router


AirStation HighPower wireless LAN router supports 802.11n/a and 802.11n/g/b standards for 300 Mbps high-speed* connections. This capacity for high-speed communications enables full use of the high transfer rates available with fiber optic and other high-speed circuits, making downloads, large file transfers, playback of High-Vision video, and other data transfers over the Internet easier and more enjoyable.

- HighPower technology improves coverage and reduces or even eliminates dead spots
- Backward compatible with 1 x 1, 802.11a, 802.11n, 802.11g, and 802.11b devices
- Allows up to 4 simultaneous Gigabit wired connections
- True VPN Endpoint - access your network from anywhere in the world
- USB 2.0 for NAS and printer capabilities
- Media Server function provides seamless multimedia streaming and playback
- BitTorrent - fast, easy sharing and downloading of rich media files
- Multi-level Wireless Security Support: WPA2(AES), WPA-PSK (AES), and WEP
- Simple to install and use, even for the novice user
- Can be positioned vertically or horizontally
- 3-year Warranty

Extreme Range

HighPower Technology offers optimized antennas and integrated power amplifiers to notably boost signal strength for outstanding range and coverage.

Dual 5 GHz and 2.4 GHz bands allow simultaneous connection of more devices

The WZR-600DHP2 AirStation HighPower wireless LAN router supports both 802.11n/a and 802.11n/g/b standards providing 300 Mbps high-speed* transfer speeds. This capacity for high-speed transmissions enables full use of the high transfer rates available with fiber optic and other high-speed circuits, making downloads, large file transfers, playback of High-Vision video, and other data transfers over the Internet easier and more enjoyable.

* The "300 Mbps" under this wireless LAN standard is a theoretical maximum value and does not indicate the actual data transfer rate.
* Connecting at 300 Mbps requires that the access point also support 300 Mbps transfer rates. For more detailed information on supported devices, please
refer to the specifications.
* The device's initial setting is 216 Mbps (standard value).

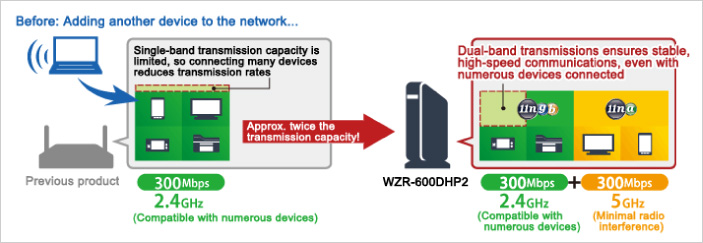

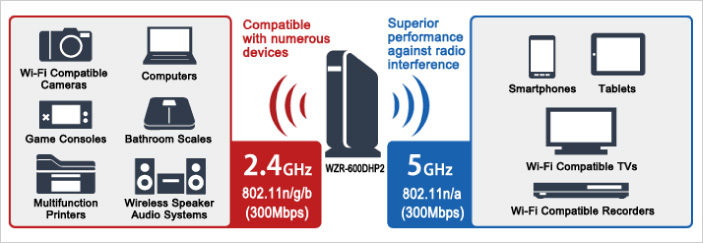

Dual-Band Transmissions Supports Numerous Connections with No Loss of Speed

Developed to increase transfer speeds, the 802.11n wireless LAN standard uses MIMO (Multiple Input Multiple Output) technology, with multiple antennas for both transmission and reception. This allows data to be transmitted over multiple paths (streams) simultaneously, thus enabling higher transfer speeds. This AirStation uses two simultaneous streams to achieve high-speed transfer rates of 300 Mbps (standard value), while further supporting the conventional 802.11n/g wireless LAN standard used by many compatible devices and the 802.11a standard for superior resistance to radio interference. This allows you to connect according to the type of signal used. Use 802.11n/a to connect TVs, for computers and game consoles, switch the stream to 802.11n/g—now you can enjoy fast, effortless wireless LAN transmissions with all the wireless devices in your home.

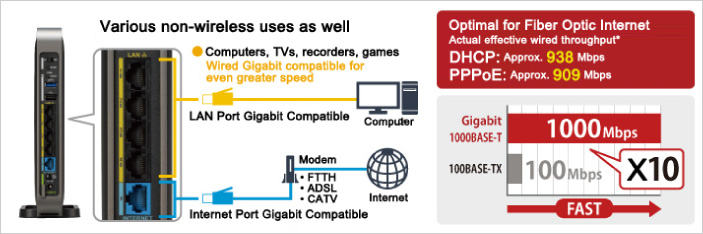

Gigabit Ethernet Wired LAN Makes Full Use of High-Speed Fiber Optic Lines

All of the WZR-600DHP2's wired LAN ports (4 LAN ports and 1 Internet port) support Gigabit Ethernet (1000BASE-T), allowing Gigabit connections with computers equipped with Gigabit LAN ports and with TeraStation and LinkStation networked hard disk drives (NAS). This intelligently forms a high-speed 300 Mbps wireless LAN and wired LAN network environment. This router is also compatible with Jumbo Frames, larger Ethernet data packets used to increase the efficiency of transfers over networks. This enables fuller utilization of Gigabit high-speed performance. The WZR-600DHP2's effective wired throughput is 938 Mbps with DHCP and 909 Mbps with PPPoE, providing trouble-free Internet connections for wired devices as well.

[Measurement Environment]
Server PC: Intel Xeon 3.2 GHz/Memory: 2 GB Linux (Debian 6.0 32 bit)
Client PC: Intel Core i5 750 2.67 GHz/Memory: 3GB Windows XP SP3 32 bit
[Measurement Method] Using IxChariot, the throughput from the Server PC to the Client PC was measured for 60 seconds five times, and the values were then averaged.
(Testing conducted by BUFFALO in March 2013)
* Transmission distance and rate are dependent on the environment.
* Frame length: maximum 9,216 bytes; wire speed: 9,216 bytes (including header and FCS).
* Use of jumbo frames requires that the transmitting computer (LAN adapter) and all switching hubs on the network support jumbo frames.

"Multi Security" Function Allows Use Mix of Dierent Wireless LAN Encryption Levels

The WZR-600DHP2 features the "Multi Security" function that automatically chooses the security setting, negotiating the highest encryption level supported by each of the connected devices, all with just a press of the AOSS button. The router supports WPA2, WPA-PSK, WEP encryption modes. This allows use of a mix of encryption levels without downgrading any device's encryption level, even when connecting devices compatible only with weaker encryption systems.

* Tkip is not ordinarily used. Connections using TKIP are available only when set to mixmode.

Let Everyone Share Use of USB Devices

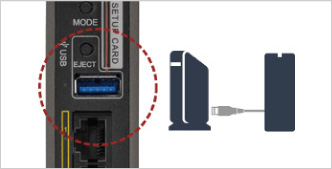

Connect an external USB hard drive or flash drive to create a home server (simple NAS)

The product contains a USB 2.0 port for connection with USB external hard drive or USB flash drive. They become simple NAS devices once connected with this product through the network.

Click on the illustration of usage examples to the right to see an enlarged image.

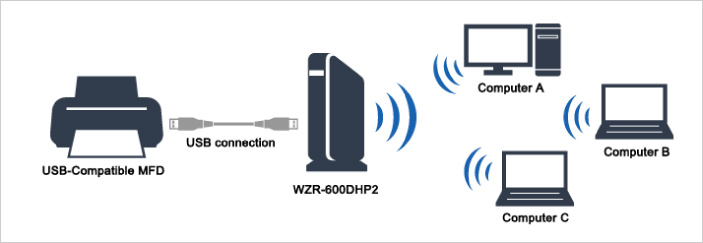

Let the home multifunctional device be shared by the whole family

You can connect a USB-compatible multifunctional device and allow a number of computers to share the MFD, all without any need to move any of the computers or the MFD.

* Support planned with firmware upgrade.

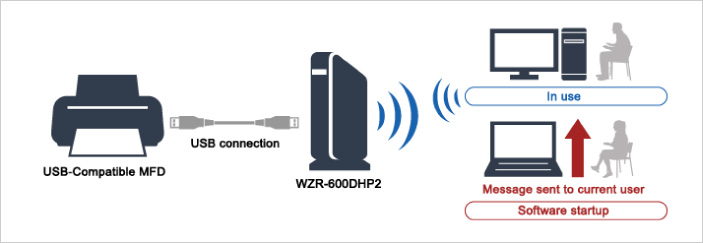

Easy-to-use utilities designed for multiple simultaneous users

The WZR-600DHP2 features a special utility designed in consideration of more than one person using the MFD/P at the same time. After launching the utility on the computer to be used, the user can then use the printer or scanner function. Other users who want to use the device can send a message requesting the current user to free up the device.

* Support planned with firmware upgrade.

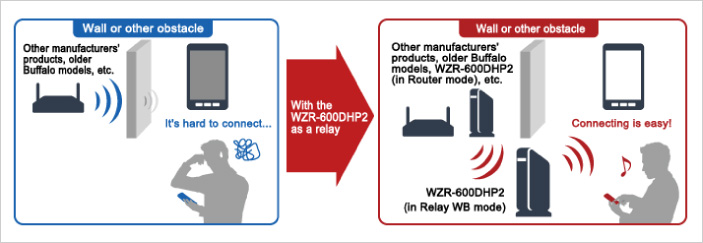

Relay function delivers the signal over a wider area

This function supports wireless transmissions between two routers. This enables transmission of signals over greater distances and in to dead spots where signals otherwise don't reach.

* The Relay function is supported from firmware Version 1.10.

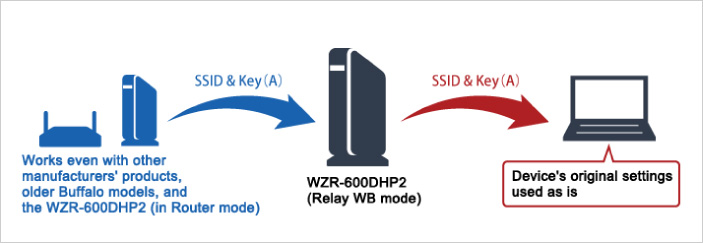

Relay signals even from other manufacturers' or older wireless LAN routers.

Connect with just one touch.

The WZR-600DHP2 can also be used to relay/repeat signals from other manufacturers' wireless LAN routers and from older products. Connecting the wireless LAN router you've already been using is also simple. Just press the WPS button or AOSS button on the other router and the WZR-600DHP2 to create a secure relay, with no need to change the router's settings. Use it the same way you always have.

* The Relay function is supported from firmware Version 1.10.
* The relay function allows connection of up to two connections, including the router and the relay.
* Multi Security can also be used when the WZR-600DHP2 is set up as a relay by connecting it to a wireless LAN access point.
* Use of the relay function requires a transmission source wireless LAN router that supports WPS or AOSS.
* Use of the relay function requires a transmission source wireless LAN router that supports 802.11na or 802.11ngb.

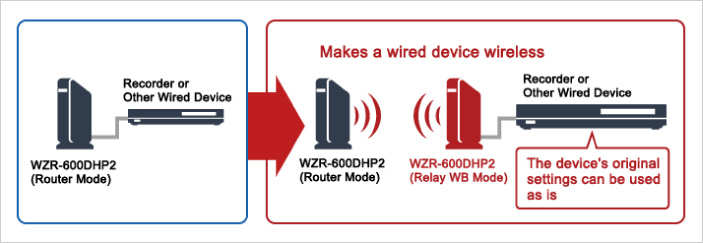

Works as a LAN access point―just connect to a wired port to make wired devices wireless

You can connect a wired device to the WZR-600DHP2's wired (Ethernet) port and use the router's wireless LAN access point function, turning the wired device into a wireless device. The device's MAC address is maintained, meaning the device can be connected without making any changes to its current settings. With Wake On LAN (WOL) enabled, the unit can be powered up remotely from an external location. Since remote access allows the router to be switched on from another location, there is no need to keep the power switched on at all times. Remote access allows you to save energy in using the WZR-600DHP2.

* Access point function support planned with firmware upgrade.

Other Features

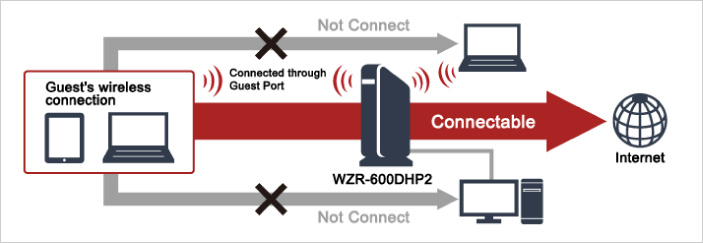

Guest port function optimal for connecting visitors' computers and smartphones

The WZR-600DHP2 features a "Guest Port" function allowing visitors to connect their own computer or smartphone to the WZR-600DHP2 wirelessly, but for Internet access only. Access to the household's existing network is denied to guests, so household members can continue using the network without concern. Users can connect not only via SSID or authentication keys, they can alternatively select the easy-to-use Web Authentication feature—just launch the browser, enter User ID and password, and that's it.

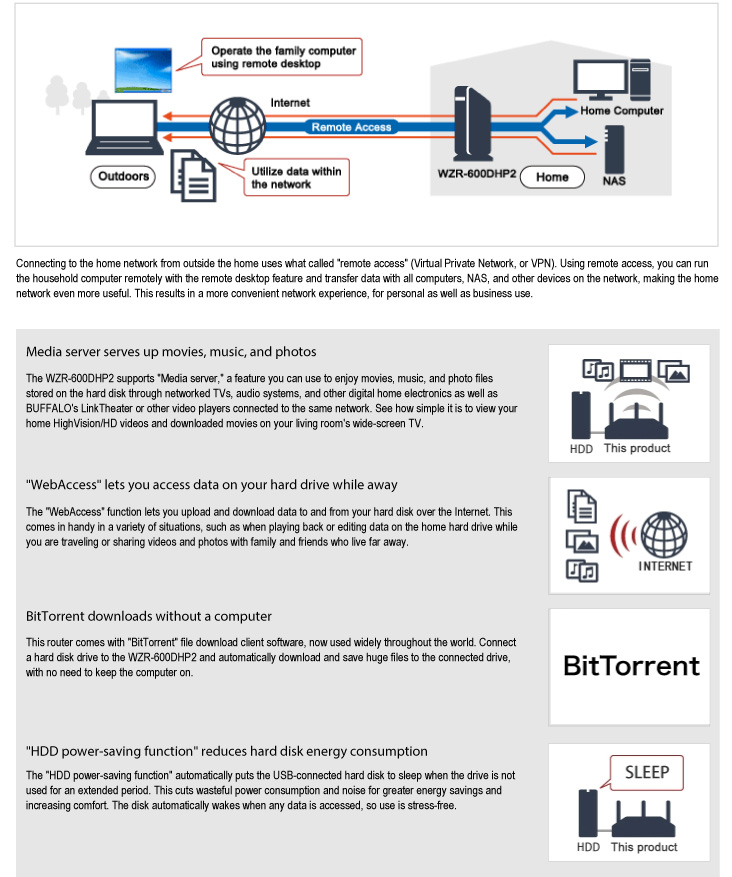

Use your home computer while away

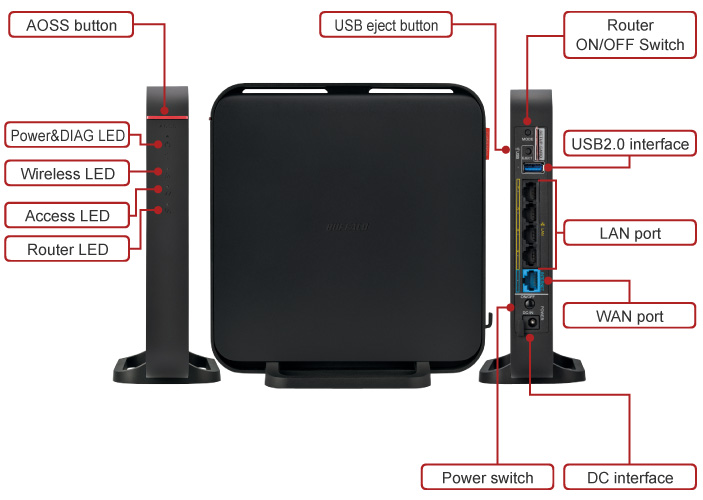

Hardware Overview



Name WZR-600DHP2

Wireless Interface

Standard Compliance IEEE802.11n/a/g/b
Security WPA2-PSK (AES), WPA-PSK (AES),WPA/WPA2 mixed PSK,WEP (128/64bit)
Transfer Rates Max. 300Mbps(IEEE802.11n)
Max. 54Mbps(IEEE802.11a/g)
Max. 11Mbps(IEEE802.11b)
Antenna Internal 5G anntena 2x2 , 2.4G anntena 2x2

Wired Interface

Standard Compliance IEEE802.3/3u/3ab
Speed and Flow Controll 10/100/1000 Mbps (Auto Sensing)
Number of Ports Internet : 1 x RJ-45 (Auto MDIX) LAN : 4 x RJ-45 (Auto MDIX)

USB Interface

Standard Compliance USB 2.0
Connector Type A type
Number of Ports 1

Key Feature

Advanced QoS -
Guest Port Y
Beam Forming Y
Parental Controls -
Wi-Fi Extender Y
PPTP Server Y
BitTorrent Y
Media Server Y
NFINITI HighPower Technology Y
Dynamic DNS Y
Energy Save Y
MAC Address Clone Y


OS Support Windows® 8 (32/64-bit), Windows® 7 (32/64-bit), Vista® (32/64-bit), XP
Mac OS® X 10.8, 10.7, 10.6, 10.5
Power Consumption 23W (Max)

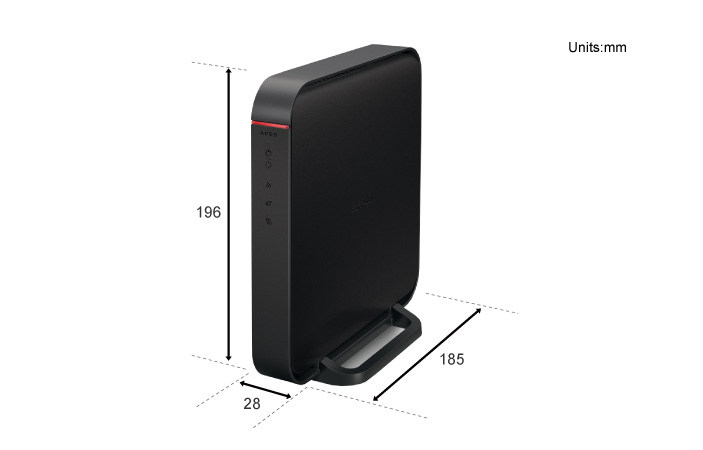

Dimensions (LxWxH, mm) 185 x 195.5 x 28 (Exclude antennas and a stand)
Weight 520 g (Exclude a stand)
Operating Environment 0-40°C, 10-85% (non-condensing)
Power Supply AC 100-240V, 50/60Hz
Warranty 3-year

Package Contents

Contents AirStation HighPower Giga WZR-900DHP
LAN cable
AC power
Quick Setup Guide
Warranty Statement
