TeraStation 5200
TS5200D
Business Class Dual Bay NAS Device
TS5200D(Enclosure)
TS5200D0202 (2TB)
TS5200D0402 (4TB)
TS5200D0602 (6TB)
- Dual bay, pedestal form factor
- Superior performance with Intel Atom dual-core processor
- Business class NAS features such as file sharing and client/server backup
- IP camera support
- iSCSI target support
- Share level replication feature with device failover
- Cloud storage backup support
- 24/7 reliability with hot swap, hot spare, port trunking, and UPS support
Model:
TS5200D (Enclosure)
TS5200D0202 (2TB)
TS5200D0402 (4TB)
TS5200D0602 (6TB)

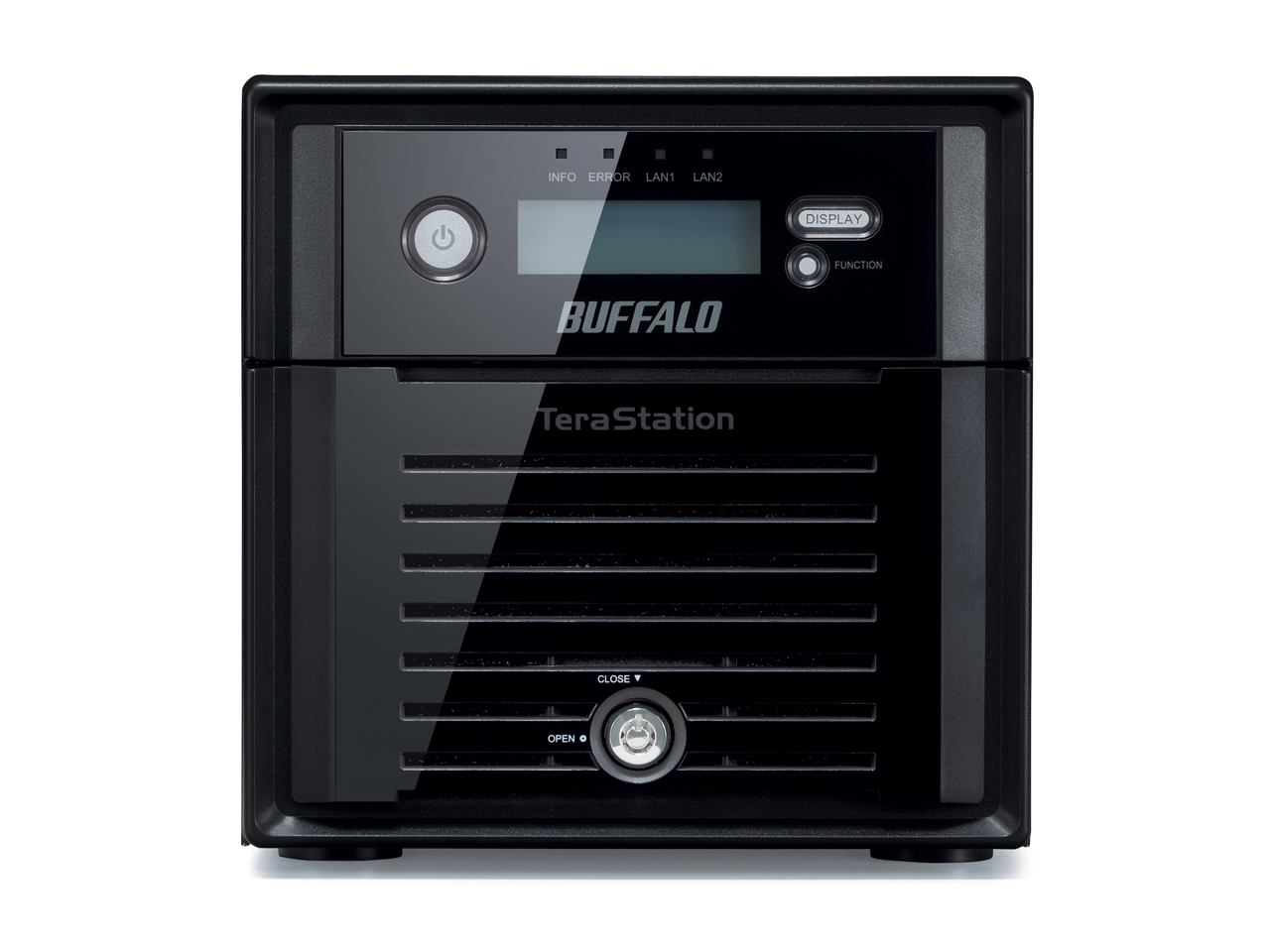

The BUFFALO TeraStation 5200 is a dual bay, RAID-enabled NAS device designed for SOHO and SMB users demanding higher performance and data redundancy. Sporting the Intel Atom 1.8 GHz dual-core processor, the TeraStation 5200 provides exceptional performance during data backup, file sharing and other everyday NAS demands. The TeraStation 5200 runs many services simultaneously and the dual-core processor enables the ability to focus on concurrent tasks with minimal performance degradation.

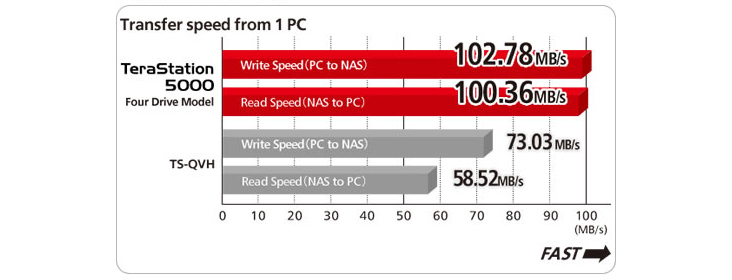

Superior Performance with Intel Atom Dual-Core Processor
Equipped with Intel Atom 1.8 GHz dual-core processor and DDR3 memory to achieve ultimate performance
•Powered by Intel Atom
Intel's latest dual-core, four-thread processor
•High-performance interfaces
DDR3 memory and high-speed USB3.0 interfaces boost data transfer capabilities.
Business Class NAS Features

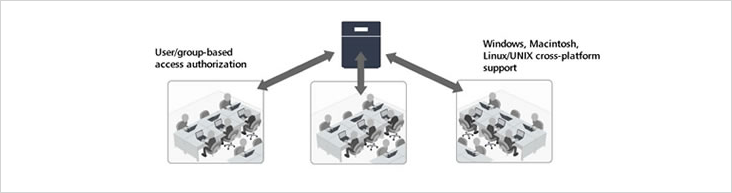

•File Sharing
Secure file sharing from a central location with cross-platform support and access restrictions

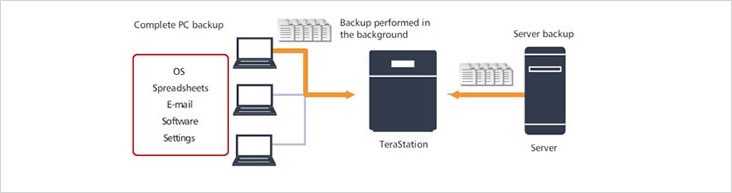

•Client/Server Backup
Backup all mission-critical data for peace of mind
- NovaBACKUP® backup software
- Time Machine support
- Supports most major server backup software

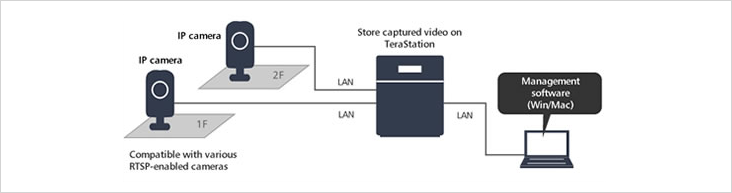

Buffalo Surveillance Server
Store video captured with an IP camera directly on a TeraStation via a network.
Supports up to ten IP cameras per TeraStation. Just select the camera model and enter the IP address on the setup screen, and the TeraStation is set to record video.
With the management software, you can centrally control multiple TeraStations from a single point, such as a Windows PC or Mac.
The TeraStation can be configured to automatically switch over to a secondary TeraStation when the primary TeraStation runs out of capacity, to continue recording without interruption.
*Product comes with one free camera license. Additional licenses available for purchase

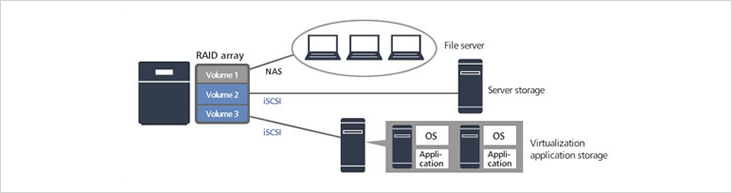

iSCSI Target
Create NAS and iSCSI volumes on a single RAID array. Supports simultaneous usage of NAS and iSCSI in one device.
Backup

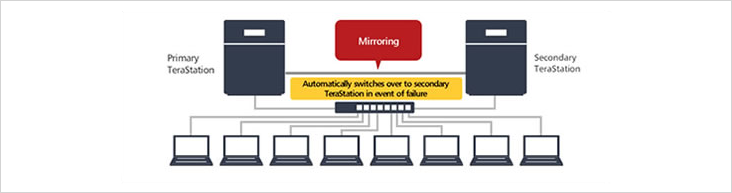

•Failover
The TeraStation can be backed up to another TeraStation by replicating one to the other. When the primary TeraStation faces hardware failure, the secondary TeraStation will automatically take over NAS operations (Failover), without any noticeable service interruption to users. Failover also keeps trace of various setting changes, minimizing restoration workload.

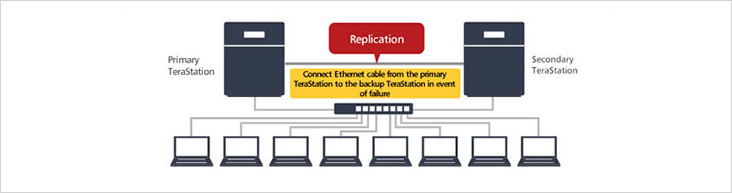

•Replication
Replicates data between two TeraStations. In the event of a TeraStation failure, simply unplug the Ethernet cable from the malfunctioning TeraStation and plug into the backup TeraStation for service restoration

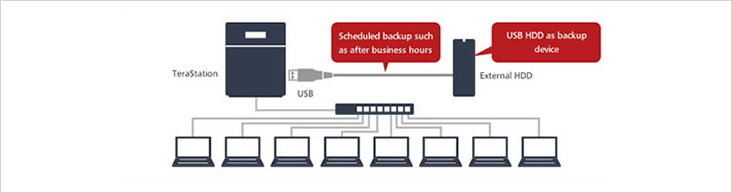

•Scheduled backup
Scheduled backup can be set at a specific data and/or time

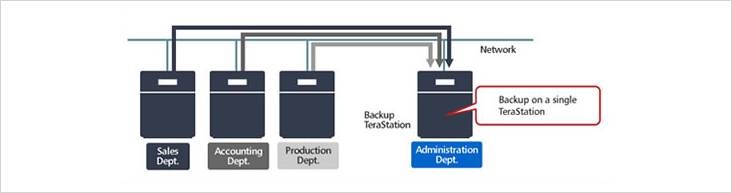

•Many-to-one TeraStation Backup
Backup all shared folders in multiple TeraStations on a single TeraStation

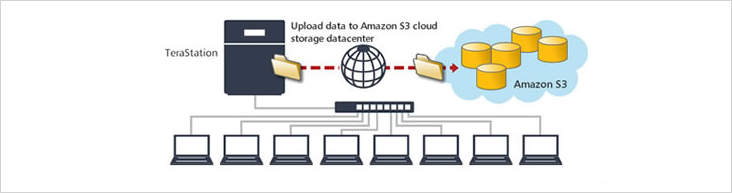

•Cloud Storage Backup
Backup mission-critical data to Amazon S3 (Simple Storage Service) for offsite backup
*Amazon S3 account required
Retroactive recovery
Keeps up to 10 backup generations with historical incremental backup
Hardware Features

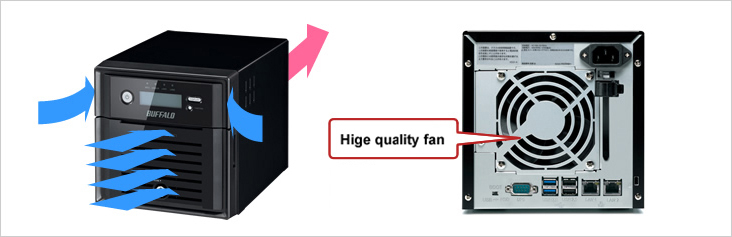

•Hardware Supporting 24/7 Operations
Advanced ventilation design reduces internal heat
Large fan cools hard drives efficiently
Front panel filter keeps dust out

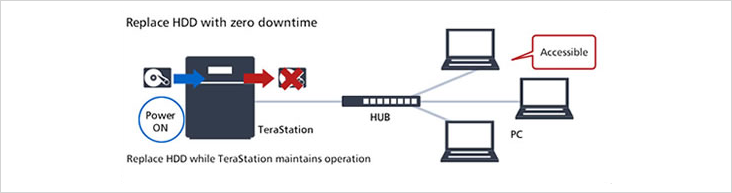

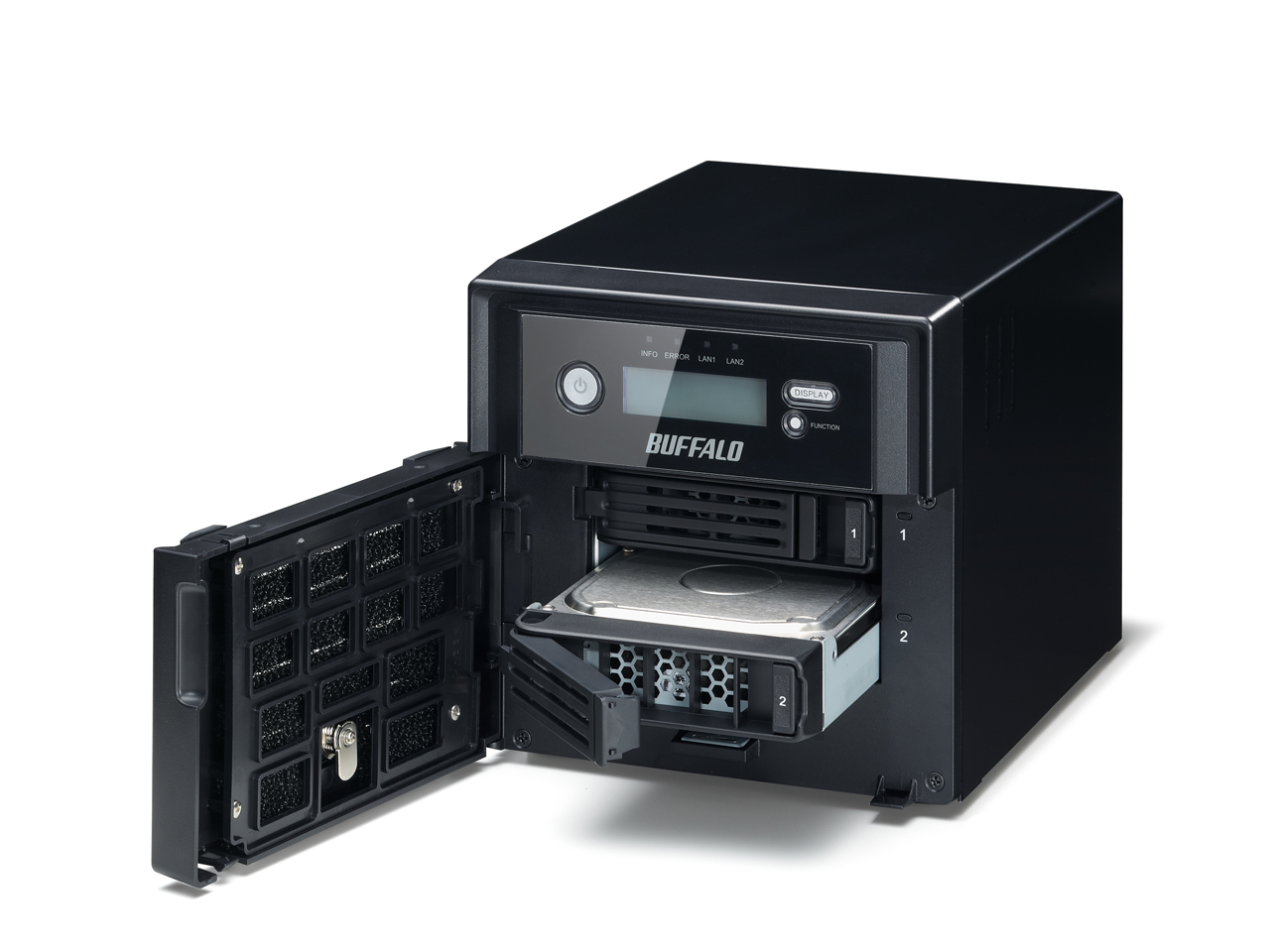

•Hot Swap

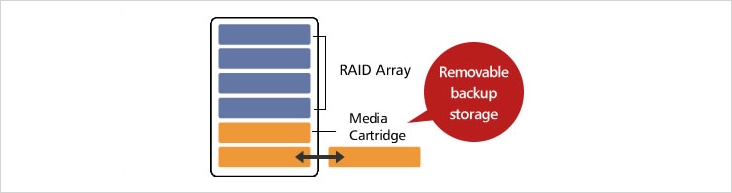

•Media Cartridge feature
Ditch the tape storage and assign a hard drive as removable backup storage cartridge

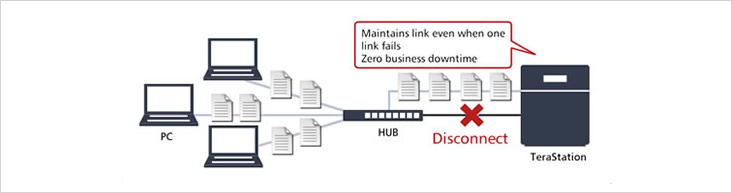

•Port Trunking
•UPS Support
Supports UPS devices from APC and Omron
•RAID Modes
File Sharing
•Active Directory
Manage access restrictions with user account information from the Windows Active Directory server
•Settings such as read/write access and user/group-based access authorization can be tailored to your needs
•DFS Namespace support
•Disk quota support prevents users/groups from consuming too much disk space
•Hide specific folders for limited access
•Offline Files feature enables folder synchronization to/from your laptop for offline accessibility
WebAccess for Business

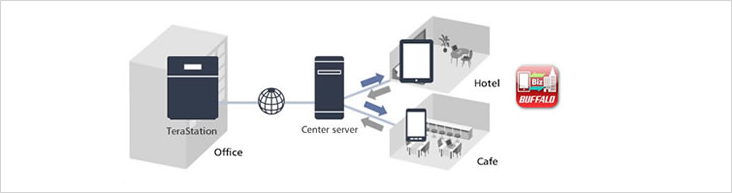

•WebAccess for Business smartphone app
Free app for Android, iPhone, and iPad, to access and manage the TeraStation over the Internet. Configure your TeraStation from the palm of your hand!

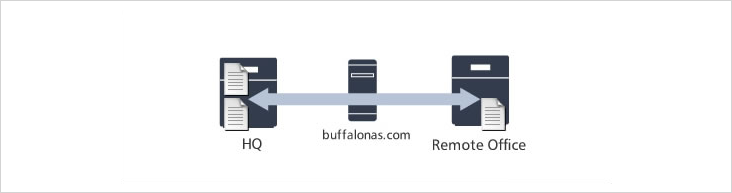

•TeraStation Sync
Share files with remote locations by synching folders between two TeraStations over the web.
Certified Citrix Ready®
Citrix Ready is an end-to-end partner program for introducing and recommending third-party products, solutions, and services. This program allows solutions that Citrix recommends to be found rapidly and easily with the aim of improving the quality of the products Citrix offers.
For more detailed information about the Citrix Ready program, refer to this site: www.citrix.com/ready/en
Other features
•Easy setup wizard and management through intuitive web interface
•USB print server
•Scheduled shut down eliminates unnecessary access and reduces energy costs
•AES-128 bit hard drive encryption
•Hide specific folders for limited access
•Security lock slot
Model
| Name | TS5200D |
|---|
Hardware
| Type | Desktop |
|---|---|
| OS | Linux Original |
| CPU | Intel Atom D2550 |
| Clock | 1.86GHz |
| Memory | DDR3 2GB |
Internal Hard Drives
| Number of Drives | 2 |
|---|---|
| Drive Interface | SATA II |
| Supported RAID Levels | 0, 1, JBOD (Normal) |
| Drive Capacity | TS5200D(Enclosure) TS5200D0202(2TB) TS5200D0402(4TB) TS5200D0602 (8TB) |
LAN Interface
| Standard Compliance | IEEE802.3/3u/3ab |
|---|---|
| Speed and Flow Control | 10/100/1000 Mbps (Auto Sensing) |
| Number of Ports | 2 x RJ-45 (Auto MDIX) |
USB Interface
| Standard Compliance | USB 2.0 / USB 3.0 |
|---|---|
| Connector Type | A type |
| Number of Ports | 2 x USB2.0 / 2 x USB3.0 |
UPS Interface
| Standard Compliance | D-Sub 9pin |
|---|---|
| Number of Ports | 1 |
Other Interface
| Number of Ports | - |
|---|
Key Feature
| iSCSI | Y |
|---|---|
| IP Camera | Y |
| Redundant Power Surpply | - |
| Hot Spare | Y |
| Hot Swap | Y |
| Replication | Y |
| Failover | Y |
| Amazon S3 | Y |
| Port Trunking | Y |
| Disk Quota | Y |
| Virus Scan | Option |
Protocol Support
| Networking | TCP/IP |
|---|---|
| File Sharing | CIFS/SMB, AFP, HTTP/HTTPS, FTP/FTPS, SFTP, NFS |
| Directory Integration | LDAP, Active Directory |
| Management | HTTP/HTTPS |
| Time Synchronization | NTP |
Other
| Client OS Support | Windows® 8 (32/64-bit)/ 7 (32/64-bit)/ Vista® (32/64-bit)/ Windows XP Windows Server® 2012/ 2008 R2/ 2008/ 2003/ 2000 Mac OS® X 10.8/ 10.7/ 10.6/ 10.5/ 10.4 |
|---|---|
| Power Consumption | 26W (Average), 48W (Max), 0.7W (Standby) |
| Dimensions (LxWxH, ) | 165 x 158 x 35 |
| Weight | 1.7 kg |
| Operating Environment | 5-35°C, 20-80% (non-condensing) |
| Power Supply | AC 100-240V, 50/60Hz |
| Warranty | 3-year |
Package Contents
| Contents | TeraStation 5200(TS5200D) Setup CD-ROM LAN Cable AC Cable Front Panel Key Quick Setup Guide Warranty Statement |
|---|
